ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
Specifications
Brand Name :
Anycut
Model Number :
ZKJDJ330
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1piece
Price :
$1479~1805/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20-30 work days
Packaging Details :
L1330mm*W980mm*H1270mm
Connect or interface :
USB cable/Udisk/web cable /WIFI
Maximum cutting speed :
1200mm/s
Media way :
Auto paper feeding
Machine power :
< 100W
Gross Weight :
133kgs
maxium material width :
490mm
Repeat accuracy :
0.082mm
Maximum material width :
490mm
maxium cutting area :
unlimited length*330mm width
Control Panel :
5.0 inch touch screen
packing size :
L1330*W980*H1270mm
Description

ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces



  • Unmatched Precision & Speed:

Boasts the max cutting width is 490mm and cutting area is 330mm,and a maximum cutting speed of 1200mm/s, delivering professional-grade results at high efficiency.


  • Versatile Material Compatibility:

Ideal for processing roll-fed self-adhesive stickers, PET transparent self-adhesive stickers, and other popular label and sticker materials.

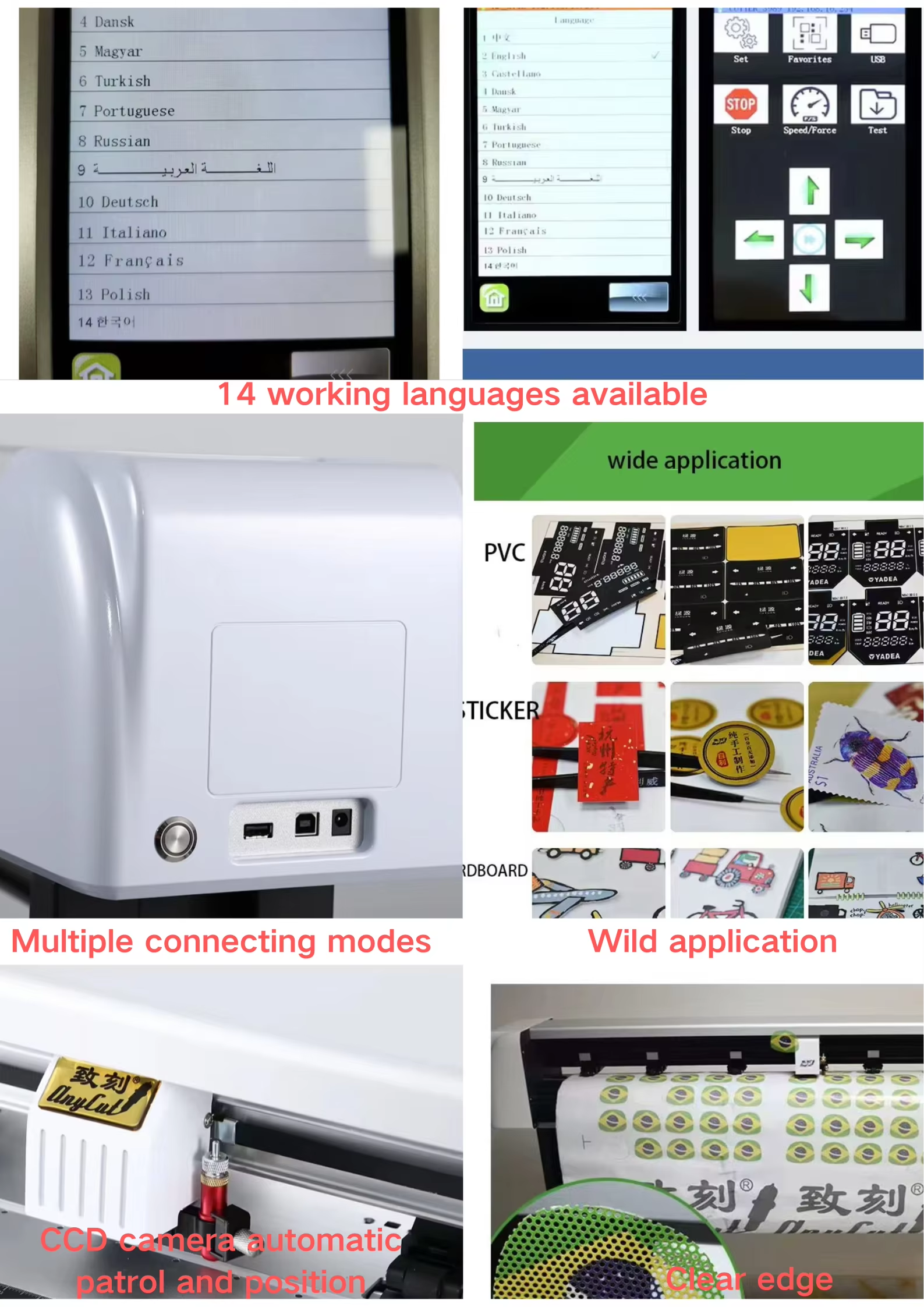

  • Intelligent & Connected:

Features a 5.0-inch touchscreen control panel and multiple connectivity options (USB, U-disk, network cable, WIFI) for seamless integration into modern production lines.


  • Powerful Cutting Performance:

Equipped with a maximum cutting pressure of 2000g and an auto contour cut function with a camera, enabling precise cutting of complex shapes and printed graphics.

  • Robust & Durable:

Sturdy construction with a gross weight of 133kgs ensures stability and longevity in high-volume environments.


  • Fully Automated Workflow:

Automatically feeds, cuts, collects finished materials, and discharges waste, eliminating manual labor and streamlining production.




Product Parameters

Model ZKJDJ330
Media way Auto paper feeding
Control Panel 4.3inch touch screen
Maximum material width 490mm
Maximum cutting area unlimited length*330mm width
Cutting accuracy +/-0.01mm
Repeat accuracy 0.082 mm
Maximum cutting speed 1200mm/s
Maximum Cutting pressure 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Input voltage 110V-240v
Machine power < 100W
Working temperature +5°C ---- +35°C
Packing size L 1330*W 980*H 1250mm
Gross weight 47kgs



Multi-function

ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces



ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
