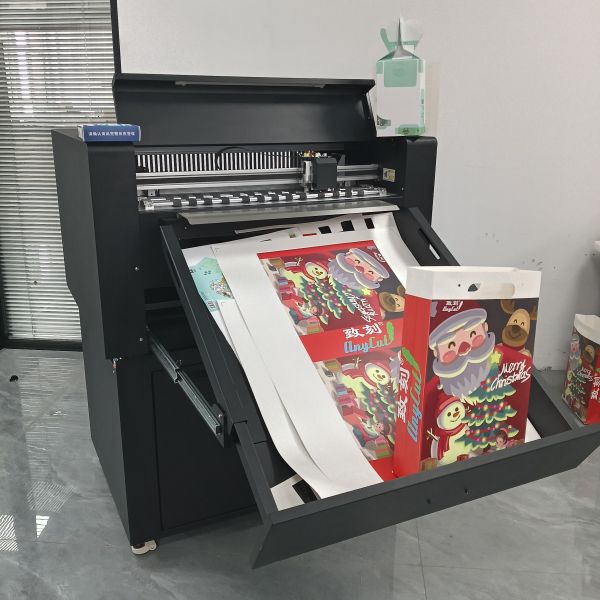

Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head
Specifications
Brand Name :
Anycut
Model Number :
SVD600PRO_RL
Certification :
CE, RoHs, FCC
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
USD4625/PC
Payment Terms :
T/T,Western Union
Supply Ability :
50units/month
Delivery Time :
20-30days
Packaging Details :
Wooden case
Motor :
High speed servo motor
Maximum Speed :
1600mm/s
Maximum media width :
620mm
Maximum cutting thickness :
600gsm
Cutting accuracy :
+/-0.01mm
Creasing tool :
Rotary wheel
Mainboard :
Arm smart dual core chip
Control panel :
5.0inch Lcd touch screen
Description

Adsorption Rotary Wheel Creasing Label Cutting Machine



Anycut SVD600PRO_RL, rotary wheel creasing tool, vacuum adsorption feeding, maximum crease and cut thickness 600gsm, maximum cutting width

590mm. 3000g pressure, large paper-holding house suitable for batch cutting. 4 rows of paper-pressing rollers, move paper more smoothly. High speed

servo motor, cutting fast and accurate.



MODEL ZKSVD600PRO_RL
Max. media width 620mm
Max. cutting width 600mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 1140mm*W 930mm*H 1130mm
Machine size L 1050mm*W 1050mm*H 1200mm
Gross/Net weight 222kgs/176kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Cutting materials Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows



Rotary wheel creasing die cutting plotter SVD600PRO_RL 3000g pressure double head



Anycut SVD600PRO_RL, automatically feeding materials by vacuum adsorption, anti-static adhesion, large paper holding house suitable for batch cutting. 3000g ultra force, rotary wheel creasing tool, maximum cutting and creasing thickness upto 600gsm. 4 rows of pressing rollers, move materials more smoothly. Maximum media width 620mm, maximum cutting width 600mm. Multi-functions such as full cut ,half cut, crease and cut at one time or half cut and full cut at one time or make dashed line.
