Specifications
Brand Name :
Anycut
Model Number :
ZKD1000
MOQ :
1Piece
Price :
$613~827/piece
Payment Terms :
T/T,Western Union
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L1250mm*W600mm*H1100mm
Max.cutting width :
700mm
Control panel :
5.0 inch touch screen
Motor :
Stepper
Cutting length :
Unlimited
Max.cutting speed :
700mm/s
Main board :
ARMsmart dual-core chip
Auto contour cut :
Camera
Drawing instruction :
Automatic recognition DMPI and HPGL
Description

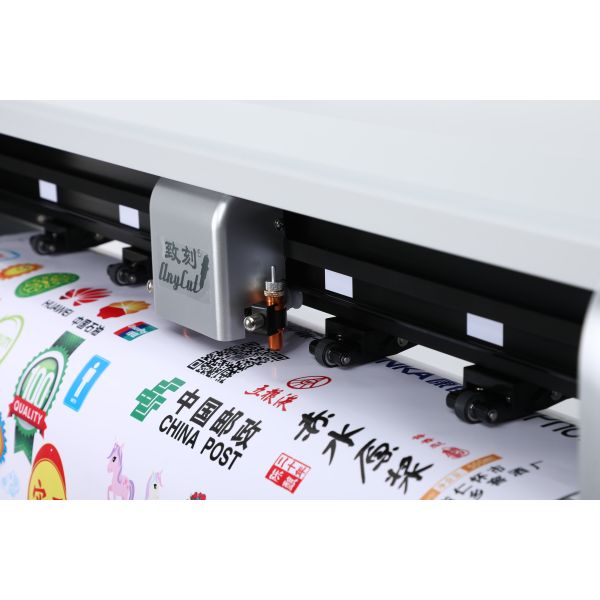

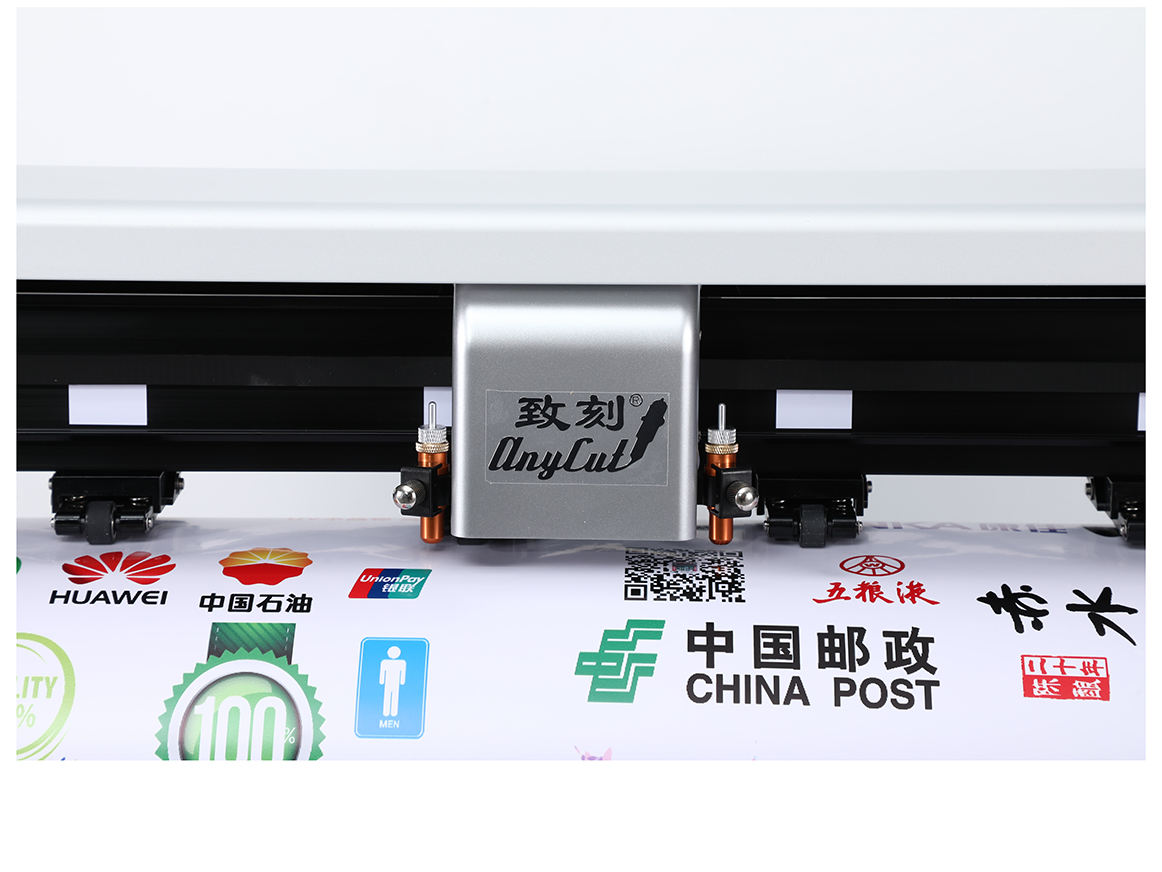

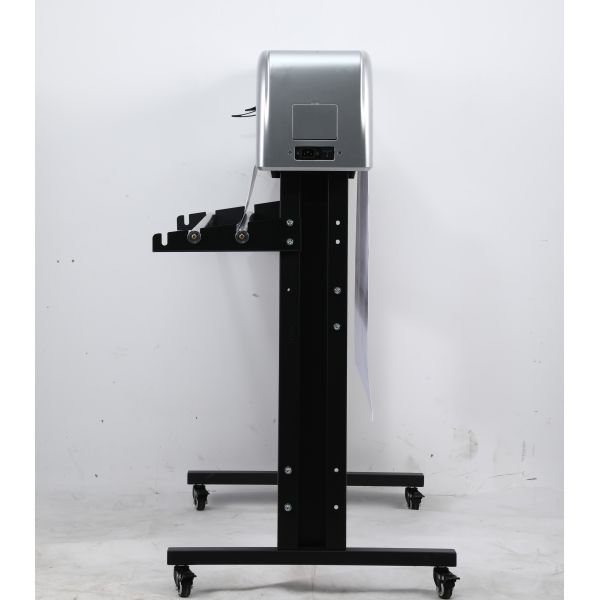

Anycut 39 Inch Dual-servo Intelligent Positioning Ultra-High Pressure High-Precision



The ZK1800-SF is a high-efficiency cutting machine featuring intelligent visual positioning + dual-servo power. Equipped with a dedicated camera automatic positioning system, it accurately captures pattern contours; paired with the 2000g ultra-high pressure cutting force of its Y-axis dual servo motor, it achieves quiet operation while cutting at a high speed of 1200mm/s, with precision firmly locked at ±0.01mm. Whether handling flexible materials like reflective film and wall stickers, or rigid media such as signs and packaging, it balances "fast cutting" and "precision trimming" seamlessly.

It supports multi-mode connectivity (WiFi, wired network, etc.) and comes with automatic contour cutting, intelligently recognizing DMP/HPL files for fully automated processing from material positioning to finished product cutting—drastically reducing manual debugging time. The combination of a 5.5-inch touch screen and an ARM smart dual-core mainboard ensures smooth, user-friendly operation, and it is compatible with all Windows systems and mainstream design software. From advertising sign production to custom decorative processing, the ZK1800-SF is a versatile, high-efficiency production tool for diverse scenarios.



MODEL ZKD1000
Max. media width 1000mm
Max. cutting width 850mm
Packing size L1360mm*W400mm*H440mm
Machine size L1250mm*W600mm*H1100mm
Gross/Net weight 36kgs/30kgs
Control panel 5.0inch LCD touch screen
Motor Stepper
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 700mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 2
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows
