Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut
Specifications
Brand Name :
Anycut
Model Number :
ZKSV370
MOQ :
1 piece
Price :
$1356-1542/piece
Payment Terms :
T/T,Western Union
Certification :
CE/FCC/RoHS
Place of Origin :
Anhui
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L 890mm*W 580mm*H 570mm
Auto contour cut :
Camera (automatically contour cutting)
Positioning mode :
Qr code/Dot/Right angle
Control panel :
4.3inch touch screen
Servo motor :
Single-Head Servo
Max.cutting speed :
1600mm/s
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
support software :
CDR/AI/PS/Contour software/Signmaster(optional)
Support system :
All versions of windows
Description

Anycut A3/A4 Sticker Label Cutting Machine with Single-Head Servo High-Speed QR Code Auto-Cut

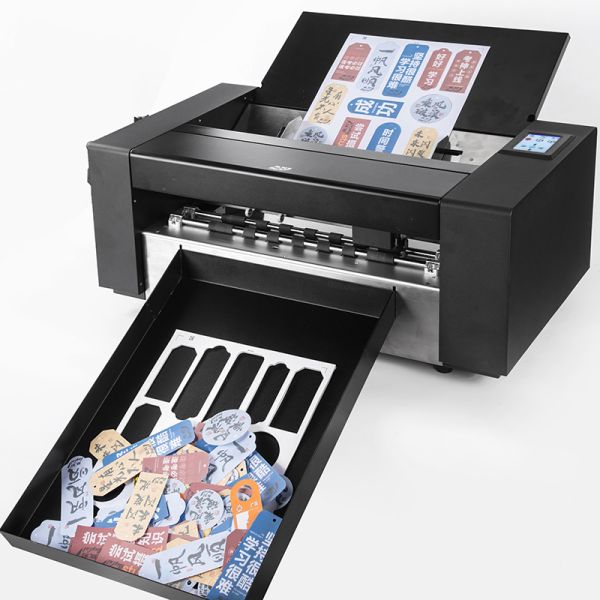

The ZKSV370 label cutting machine is a powerful ally for efficient label processing! Equipped with a high-speed servo motor and CCD high-definition scanning, it can automatically retrieve cutting paths via QR codes, effortlessly handling both full-cut and half-cut processes for a hassle-free operation. The 4.3-inch touch screen ensures easy use, and with a single Rowland blade plus three positioning modes (QR code, dot, right angle), it achieves a cutting accuracy of ±0.01mm. It cuts adhesive labels, personalized business cards, cardboard tags, car instrument films and special-shaped card tags quickly and precisely.

Its performance is equally impressive: a maximum media width of 370mm, a cutting speed of 1600mm/s, the ability to handle materials up to 450gsm thick, and a maximum force of 2000g, meeting diverse processing needs. The machine supports multiple connections including USB, U disk, network cable and WIFI, with power consumption below 150w for energy efficiency. Compatible with mainstream design software like CDR, AI and PS, and all Windows systems, it’s the perfect choice for small processing workshops and cultural and creative studios!


MODEL ZKSV370
Max. media width 370mm
Max. cutting width 360mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 768mm*W 455mm*H 336mm
Gross/Net weight 47kgs/42kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 1600g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
