Specifications
Brand Name :
Anycut
Model Number :
ANYCUT-F6090
MOQ :
1piece
Price :
$2367~3235/piece
Payment Terms :
T/T,Western Union
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
Delivery Time :
20-30 work days
Packaging Details :
L1620mm*W1070mm*H1150mm
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Maximum cutting size :
600mm*900mm
Auto contour cut :
Camera
Positioning mode :
L-corner/dot/QR code recognition
Blade type :
Cutting knife,indentation kniife,painbrush
Max.material thickness :
450gsm
Max. cutting speed :
1200mm/s
Max.force :
2000g
Connect or interface :
WIFI/USB/network port/QR code recognition
Description

Anycut Flatbed Die Cutting Plotter Machine Dual-use Dual-head Precision Cutting Vacuum Adsorption

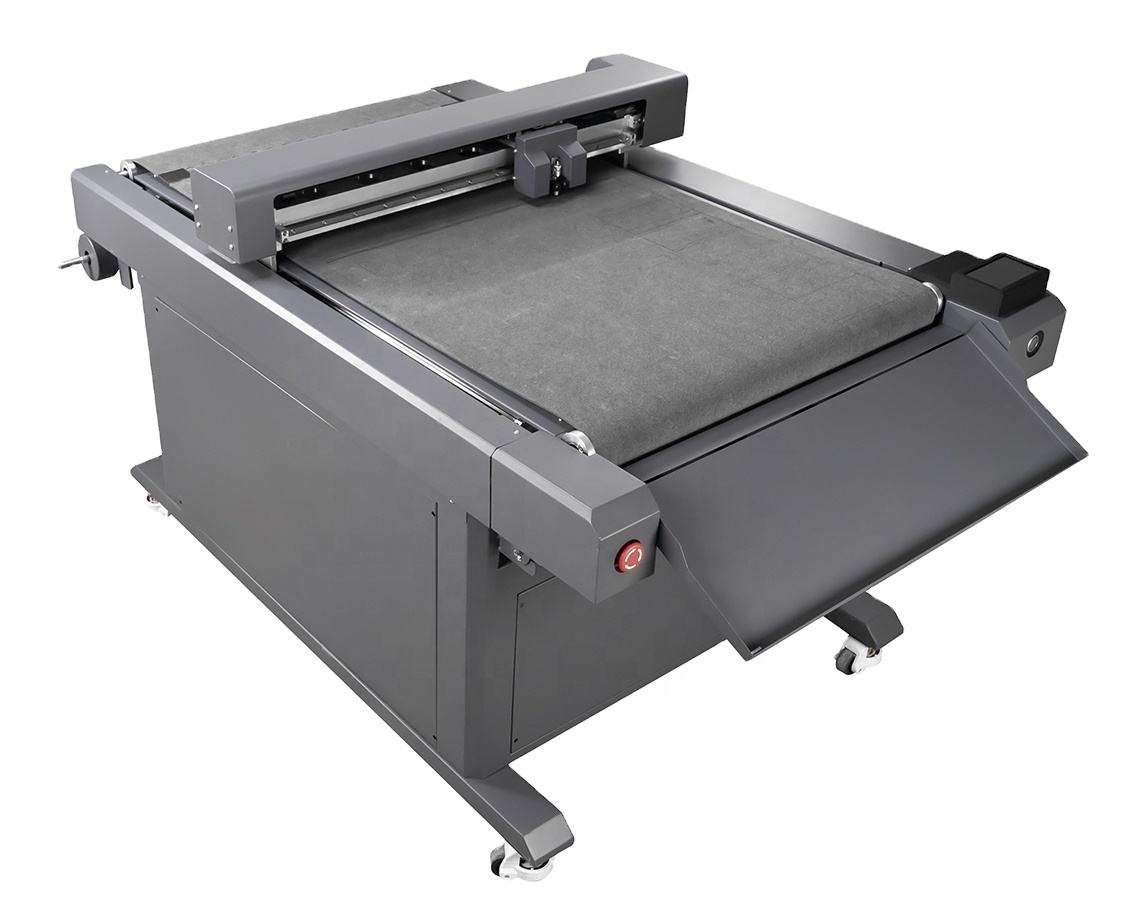

The ANYCUT-F6090 is a roll-flat dual-use dual-head precision cutting device that breaks the processing barrier between roll materials and flat materials. Based on a 60*90cm workbench, it integrates two core designs: vacuum adsorption and dual-head cutting. The vacuum adsorption table can firmly fix materials of different thicknesses (from thin self-adhesive to rigid cardboard), avoiding offset and wrinkling during cutting; the dual-head cutting system can simultaneously complete composite processes such as cutting, creasing, and brush marking, and with the automatic contour recognition function, it realizes high-precision integrated "positioning-processing" operation.

Its adaptability far exceeds that of traditional single-function machines: it can handle continuous cutting of roll materials and fine processing of flat materials, covering various materials such as specialty paper, leather, and PVC. With a cutting speed of 1200mm/s and a precision of ±0.01mm, it balances batch production efficiency and detailed texture. It also supports multi-interface connections such as WiFi, USB, and QR code recognition, paired with a 5.5-inch touch screen and 1G memory, ensuring smooth operation and compatibility with mainstream design software. Whether it is the cutting of complex patterns for advertising signs or the multi-material processing in the packaging industry, the ANYCUT-F6090, with its differentiated advantages of "roll-flat universal + dual-head precision cutting + vacuum stable adsorption", serves as an all-round tool for multi-scenario production.



MODEL ANYCUT-F6090
Maximum material size 630mm*1200mm
Maximum cutting size 600mm*900mm
Auto contour cut Camera
Control panel 5.0 inch touch screen
Motor High-speed servo motor
Positioning mode L-corner/dot/QR code recognition
Number of heads 2
Blade type Cutting knife,indentation knife,painbrush
Packing size L1620mm*W1070mm*H1150mm
Machine size L1770mm*W1000mm*H980mm
Gross/Net weight 190/kgs
Cutting accuracy +/-0.01mm
Repeatability +/-0.01mm
Max.material thickness 450gsm
Max cutting speed 1200mm/s
Max.force 2000g
Connect or interface WIFI/USB/network port/QR code recognition
Power Host:150W Fan:1500w
Woking environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Cardboard/hot stamping film/self-adhesive/kraft paper/PVC/PET
Support software CDR/AI/PS/Contour software/Signmaster(Optional)
Memory 1G
Support system All version of windows
