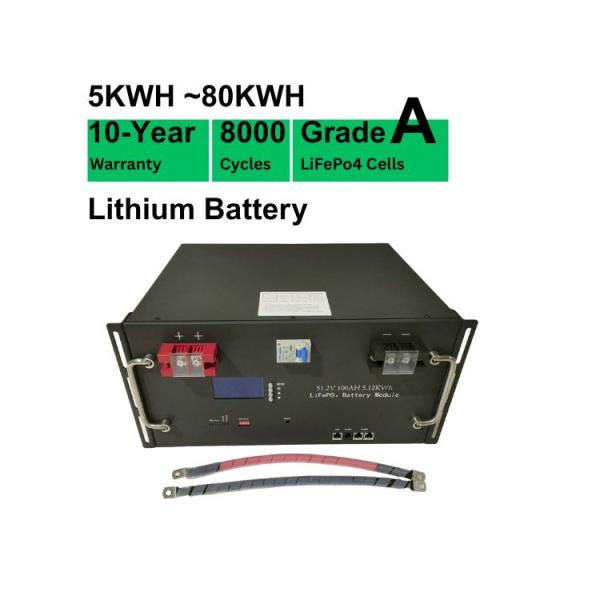

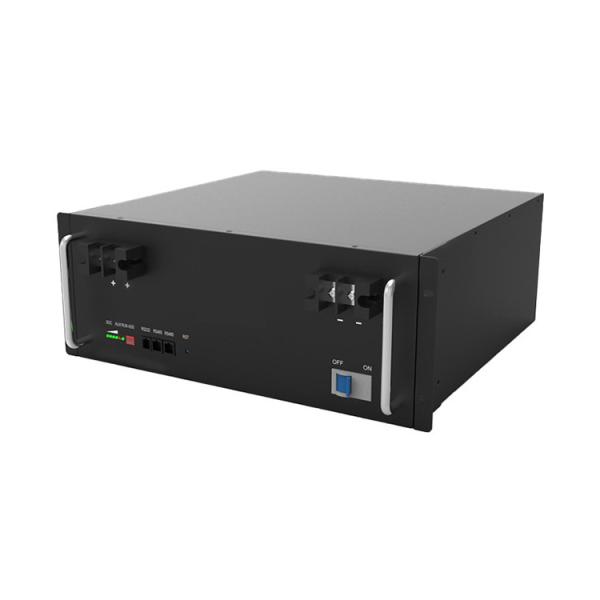

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems
24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems
24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems
24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems
Specifications
Brand Name :
HEYI
Model Number :
5KWH
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD500~700
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Logo :
Can be customized
Battery Cell :
LifePO4 3.2V
Temperature Range :
Wide
Protocol :
RS485 and RS232
Protection :
Built-in BMS
Nominal Voltage :
24V 48V
Standard Charge Current :
Constant Current 1C
Capacity :
5.12 kWh
Design :
Rack mounted
Cell Type :
Prismatic Cell
The Discharge Rate :
1C
Keywords :
Battery Lithium Lifepo4
Chemistry :
LiFePO4
The Charging Ratio :
100Ah
Storage Type :
Normal
Installation :
Indoor or outdoor
Description

24V / 48V LiFePO4 Modular Battery for Solar Energy Storage Systems

Our 24V and 48V LiFePO₄ Modular Battery Series is a high-performance energy storage solution designed for residential, commercial, and telecom applications. Built with brand-new Grade A lithium iron phosphate cells and an advanced BMS, this battery offers outstanding safety, long lifespan, and simple installation.

Whether you’re upgrading an existing system or starting from scratch, this modular battery is engineered for reliable power in both off-grid and poor-grid environments.

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems

Specification :

Model SM24-100 SM24-150 SM24-200 SM48-50 SM48-100 SM48-150
Energy 2560Wh 3840Wh 5120Wh 2400Wh 4800Wh 7200Wh
Nominal Voltage (V) 25.6V 25.6V 25.6V 48V 48V 48v
Rated Capacity (Ah) 100Ah 150Ah 200Ah 50Ah 100Ah 150Ah
Chemistry Lithium Iron Phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 3500 cycles at 80% DOD.
Communication Protocol CAN , RS485 , RS232
Display LED Display Optional
Internal Impedance 50 mΩ
Max. Charging Current 50A 80A 100A 50A 100A 100A
Max. Continue Discharging Current 80A 100A 100A 70A 100A 100A
Battery Dimensions (MM) 438*375*133mm 442*400*177mm 442*400*177mm 438*375*133mm 442*400*177mm 442*400*177mm
Weight Approx: 40kg Approx: 58kg Approx: 70kg Approx: 40kg Approx: 70kg Approx: 80kg
Battery Protection Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Black Power Coated steel case (battery rack or cabinet is optional)
Operating Temperature Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems

Features :

  • Safe and stable lithium iron phosphate (LiFePO₄) chemistry with built-in protection

  • High energy density in a compact footprint

  • Supports high charge and discharge currents for fast charging

  • Long lifespan with over 6000+ cycles at 80% depth of discharge (DOD)

  • Intelligent Battery Management System (BMS) for real-time protection against over-charge, over-discharge, and overheating

  • Flexible, modular design for wall-mounted or cabinet-mounted installation

  • Wide operating temperature range for stable performance in various environments

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems

Applications :

  • Home solar storage systems

  • Wind-solar hybrid systems

  • Telecom base stations

  • Emergency backup power

  • Stationary energy storage projects

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems
