High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System
High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System
High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System
High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System
Specifications
Brand Name :
HEYI
Model Number :
35KWH
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD2998~5980
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Logo :
Can be customized
Service Life :
y15+
Battery Cell :
LifePO4 3.2V
Inverter :
All In One
Temperature Range :
Wide
Protocol :
RS485 and RS232
Protection :
Built-in BMS
Battery Protection :
Smart BMS module
Battery Capacity :
35 KWH
Description

High Energy Batteries 48V 30kwh Bess Battery Energy Storage System

This space-efficient battery system is built around LiFePO₄ technology and supports optional inverters ranging from 5kW to 15kW. Designed for modern households, its stackable, modular architecture with integrated wheels allows quick deployment and easy movement. The system supports multiple energy configurations—from small setups at 5kWh to large-scale storage at 50kWh—and is compatible with CAN, RS232, and RS485 interfaces. Suitable for both off-grid and hybrid environments, this long-lasting battery solution provides up to 8000 cycles and includes a 10-year performance warranty.

MODEL HY-01L HY-02L HY-03L HY-04L HY-05L HY-06L HY-07L
Battery Type LiFePO4(LFP)
Nominal Voltage(V) 51.2V
Num.of battery modules 1 2 3 4 5 6 7
Nominal Capacity(KWH) 5.12KWH 10.24KWH 15.36KWH 20.48KWH 25.6KWH 30.72KWH 35.84KWH
Dimension(mm) 620*438*475 640*438*625 640*438*790 640*438*955 640*438*1120 640*438*1285 640*438*1450
Weight(kg) 75 120 160 210 250 300 345
ELECTRICA
Discharge Voltage(V) 40 - 48
Charge Voltage(V) 56 - 58.4
Charge Current 50A-100A
Charge/ Discharge Current(A) 80A (Recommended) 100A(Max)/160A (Recommended) 200A(Max)
Cycle Life >6000. 25°C
BMS
BMS Monitoring PRM SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
GENERAL
Operating Temp Range -10℃-50℃
Transport or Storage Temp Range -20℃-45℃
Humidity 15% - 85% (No Condensing)
Installation Floor Installation
Inverter (Optional)
Inverter output 5kw 10kw 15kw
Rated output voltage 230Vac(L/N/PE single-phase)
Output waveform Pure sine wave
Rated battery voltage 48Vdc
Voltage range 40~60Vdc

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System

Compact Energy Hub
Merges LiFePO₄ battery technology with optional inverter choices (8~15kW) into one unified residential energy solution.

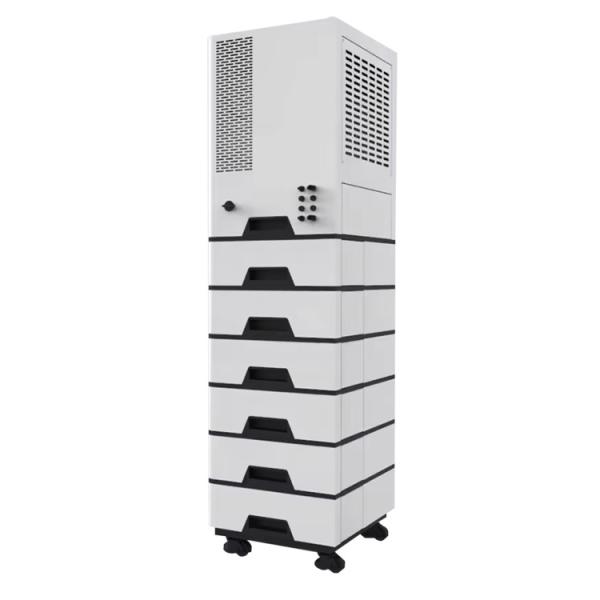

Modular Build with Wheels
Features a flexible design that stacks neatly and rolls smoothly, simplifying installation and daily handling.

Multi-Protocol Communication
Easily connects to inverters and energy systems via RS232, CAN, and RS485 interfaces.

Designed for Grid Flexibility
Supports operation in both standalone and grid-tied hybrid environments.

Extended Service Life
Built with long-lasting cells rated for 8000 cycles, and covered by a 10-year product warranty.

Scalable Storage
Modular battery capacity ranges from 5kWh to 35kWh, allowing energy storage to grow with your home.

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System

Specifications :

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System

High Energy Stackable Lifepo4 Battery 48V 30kwh Bess Battery Energy Storage System
