25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions
25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions
25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions
25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions
Specifications
Brand Name :
HEYI
Model Number :
25KWH
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD1998~4980
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Logo :
Can be customized
Service Life :
y15+
Battery Cell :
LifePO4 3.2V
Inverter :
All In One
Temperature Range :
Wide
Protocol :
RS485 and RS232
Protection :
Built-in BMS
Battery Protection :
Smart BMS module
Battery Capacity :
25 KWH
Description

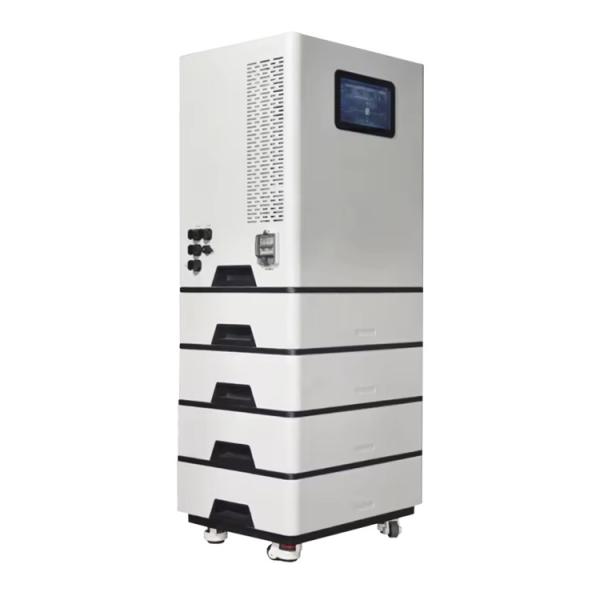

25kwh BESS System All In One Battery Energy Storage Solutions

This all-in-one energy storage solution combines high-capacity LiFePO4 batteries with an optional inverter (5KW/8kW / 10kW / 15kW), offering a compact and efficient setup for residential applications. Designed with a modular, stackable structure and built-in casters, it allows for quick installation and easy mobility. With smart communication capabilities (CAN, RS232, RS485), compatibility with both off-grid and hybrid systems, and expandable configurations from 5kWh to 50kWh, it’s a flexible and future-proof choice for powering modern homes. Backed by a 10-year warranty and up to 8000 life cycles, it ensures reliable performance for years to come.

MODEL HY-01L HY-02L HY-03L HY-04L HY-05L HY-06L HY-07L
Battery Type LiFePO4(LFP)
Nominal Voltage(V) 51.2V
Num.of battery modules 1 2 3 4 5 6 7
Nominal Capacity(KWH) 5.12KWH 10.24KWH 15.36KWH 20.48KWH 25.6KWH 30.72KWH 35.84KWH
Dimension(mm) 620*438*475 640*438*625 640*438*790 640*438*955 640*438*1120 640*438*1285 640*438*1450
Weight(kg) 75 120 160 210 250 300 345
ELECTRICA
Discharge Voltage(V) 40 - 48
Charge Voltage(V) 56 - 58.4
Charge Current 50A-100A
Charge/ Discharge Current(A) 80A (Recommended) 100A(Max)/160A (Recommended) 200A(Max)
Cycle Life >6000. 25°C
BMS
BMS Monitoring PRM SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
GENERAL
Operating Temp Range -10℃-50℃
Transport or Storage Temp Range -20℃-45℃
Humidity 15% - 85% (No Condensing)
Installation Floor Installation
Inverter (Optional)
Inverter output 5kw 10kw 15kw
Rated output voltage 230Vac(L/N/PE single-phase)
Output waveform Pure sine wave
Rated battery voltage 48Vdc
Voltage range 40~60Vdc

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions

Unified Residential Battery System
This all-in-one unit pairs large-capacity LiFePO₄ batteries with inverter options (8kW/10kW/15kW), offering a clean, compact storage solution.

Plug-and-Play Structure
Modular components and bottom-mounted wheels ensure fast installation and effortless relocation.

Advanced Communication Compatibility
Equipped to support CAN, RS485, and RS232, allowing integration with a wide range of energy platforms.

Off-Grid & Hybrid Ready
Designed for versatility, the unit supports both standalone systems and grid-assisted applications.

Reliable Long-Term Use
Delivers up to 8000 charge cycles using high-grade LiFePO₄ cells, backed with a 10-year performance guarantee.

Expandable as Needed
Scalable setup allows energy capacity expansion from 5kWh to 35kWh with ease.

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions

Specifications :

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions

25kwh BESS System Lifepo4 All In One Home Battery Energy Storage Solutions
