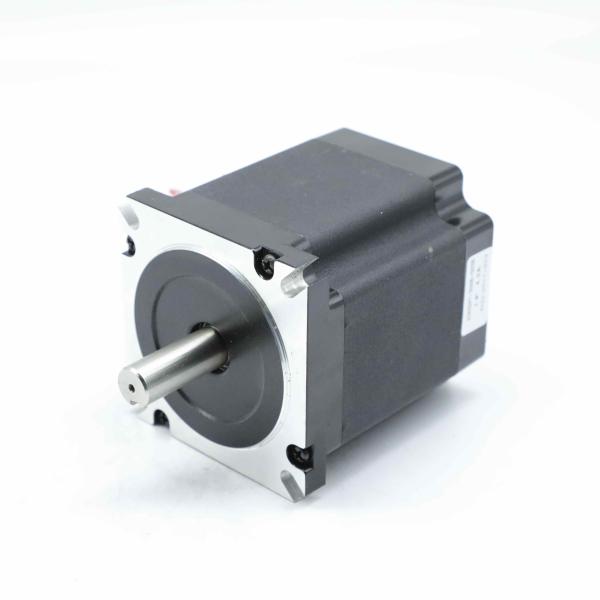

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
Specifications
Brand Name :
HeTai
Model Number :
85HS80-4208-001-02
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
Lead Wire :
4
Rated Voltage :
4.6V
Rated Current :
2.97A
Resistance :
1.55Ω
Inductance :
6.76 mH
Holding Torque :
3.2 N.M
Motor Height :
80 mm
Motor Weight :
2.3 Kg
Description

Factory sale 85HS80-4208-001-02 1.8 step angle 8 lead wires nema34 hybrid stepper motor 4.6V 2.97A 3.2N.M

Stepper motor control technology and development overview
As a special motor for control, the stepper motor cannot be directly connected to the DC or AC power supply, and a dedicated drive power supply (stepper motor driver) must be used. Before the development of microelectronics technology, especially computer technology, the controller (pulse signal generator) was completely realized by hardware, and the control system used separate components or integrated circuits to form a control loop. After finalizing the design, if you want to change the control scheme, you must redesign the circuit. This makes it necessary to develop different drivers for different motors. The development difficulty and development cost are very high, and the control difficulty is relatively large, which limits the promotion of stepping motors.

Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
8
Voltage (V)
4.6
Current (A/Phase)
2.97
Holding Torque (N.M)
3.2




Mechanical Dimension Of Hybrid Stepper Motor

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

CE Certificate of Hybrid Stepper Motor

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

Market Range of Hetai

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.

Stator Winding Machine
85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.

Professional experimental equipment

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

CNC Center

Packing&Delivery

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

85HS80-4208-001-02 1.8 Step Angle 8 Lead Wires Nema34 Hybrid Stepper Motor 4.6V

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
