Specifications
Brand Name :
HeTai
Model Number :
20mm~110mm
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Step Accuracy :
±5%
Temperature Rise :
80 ℃ MAX
Insulation Resistance :
100MΩ Min.500 VDC
Ambient Temperature :
-20℃~+50℃
Dielectric Strength :
500VAC 1 minute
Max Radial Force :
75N (20mm from front flange)
Max Axial Force :
15N
Description




Product Description:

HeTai Motor offers a full range of high-precision stepper motors, covering outer diameters from 20mm to 110mm to meet diverse industrial automation needs. Our stepper motors feature high torque, low vibration, and long service life, making them ideal for precision control applications.

Additionally, we provide linear stepper motors (28mm, 42mm, 110mm) for direct linear motion, simplifying mechanical structures and improving operational efficiency.

Product advantages:

High-Precision Positioning: Step angle accuracy ±1.2°~1.8°, ensuring precise motion control.
High Torque Output: Maximum holding torque up to 28N.m, suitable for high-load applications.

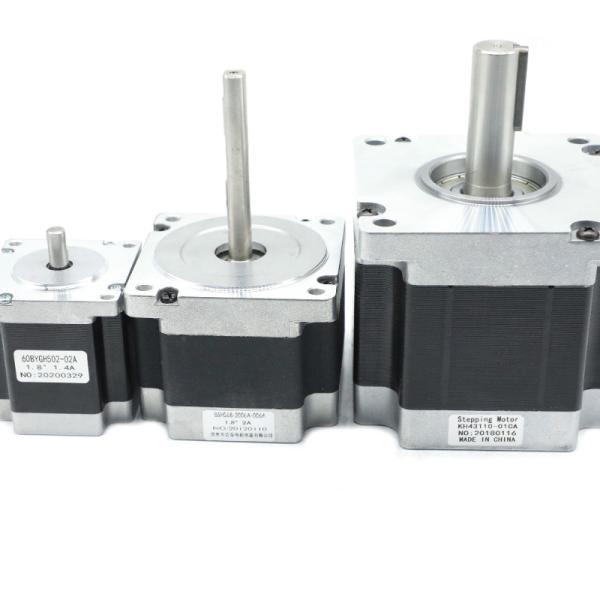

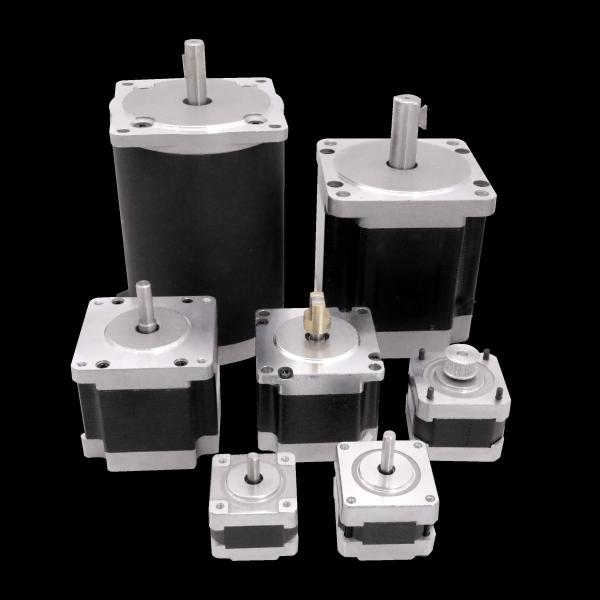

Multiple Sizes Available: Outer diameters of 20/28/35/39/42/57/60/85/110mm, meeting diverse mounting requirements.
Linear Stepper Motors Optional: 28mm, 42mm, 110mm models, reducing transmission components and improving system reliability.
Low Noise & Low Heat Generation: Optimized electromagnetic design for smooth operation and extended lifespan.
Cost-Effective: Rigorous quality control ensures stable performance, lowering total ownership cost for customers.

HT Motor Stepper Motor Product Specifications:

Model Series Comparison

Model Series Diameter (mm) Step Angle Accuracy (°) Max Holding Torque (N.m) Key Features
Compact Stepper 20~35 1.8° 0.1~2.0 Lightweight, high precision, ideal for small automation devices
Standard Stepper 39~57 1.8° 2.0~12.0 Industrial-grade, balances performance & cost
High-Torque Stepper 60~110 1.2°~1.8° 12.0~28.0 Heavy-load, high rigidity, suited for heavy machinery
Linear Stepper 28/42/110 1.8° Model-dependent Direct line


Mechanical Dimension Of Hybrid Stepper Motor

Stepper Motors Full Size Range 20-110mm | High Precision ±1.2° | Torque up to 28N.m

Application Fields :
