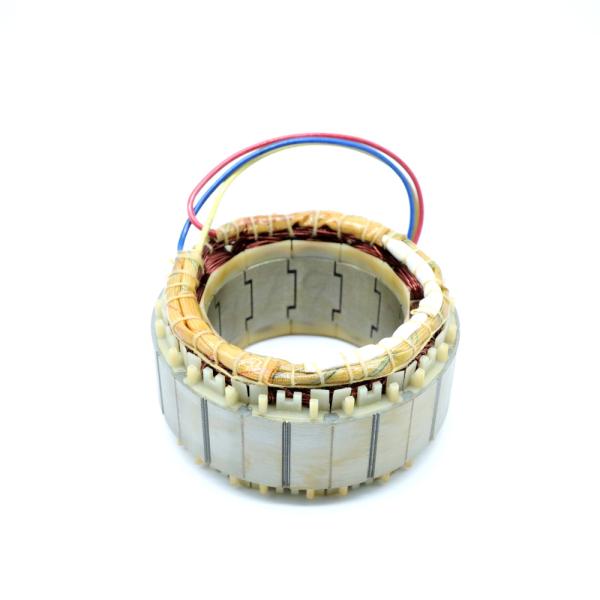

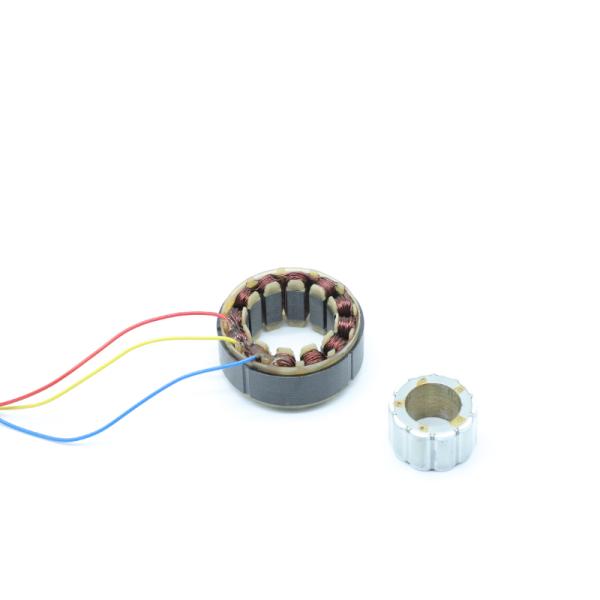

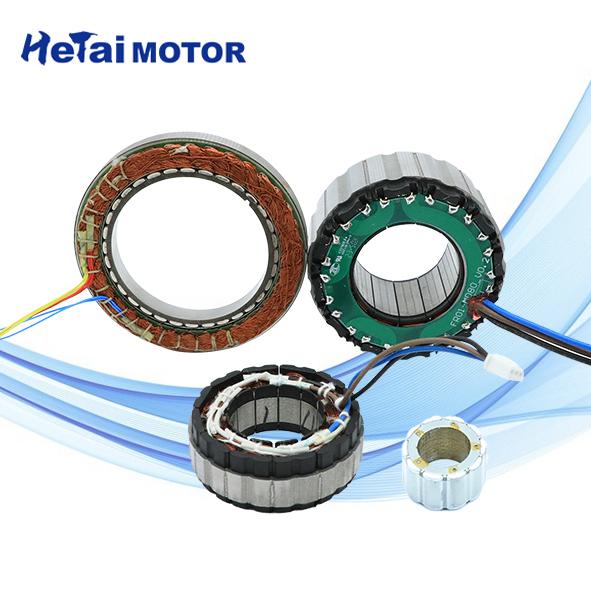

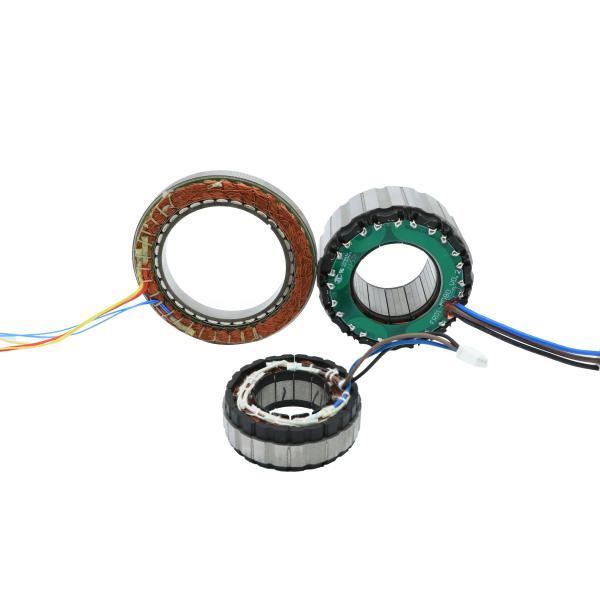

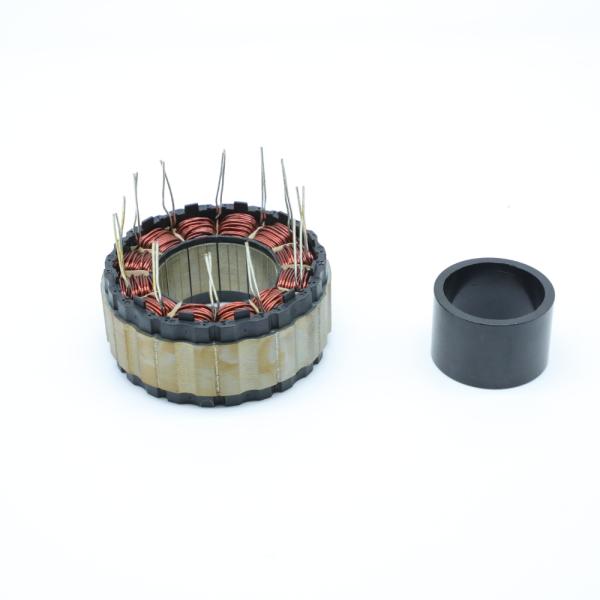

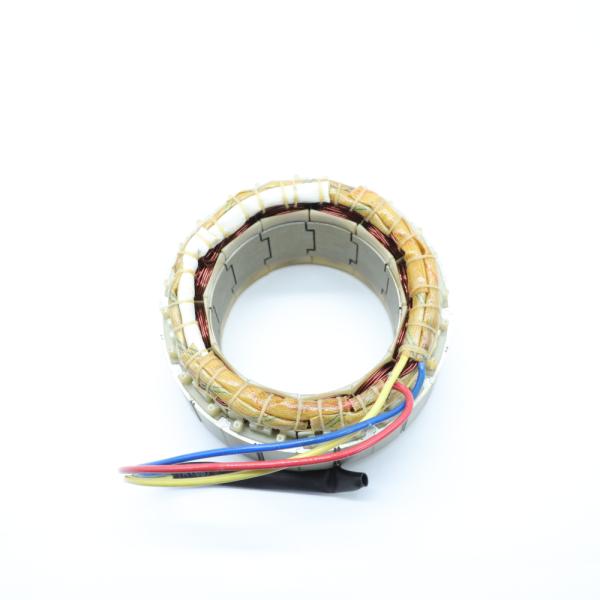

HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
HETAI Frameless Motor 40mm 60mm 80mm 130mm
Specifications
Brand Name :
HeTai
Model Number :
Frameless Motor
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product name :
Frameless Motor
Power :
100W-1500W
Pole :
10
Voltage :
24V ,48V
Rated current :
3.5A-48A
Rated forque :
0.32NM-7.2NM
Description

Hetai Motor Frameless Torque Motor Series Product Introduction

Product Overview:

Hetai Motor specializes in the R&D and production of frameless torque motor series, featuring advanced electromagnetic design and precision manufacturing for high-performance direct-drive solutions in industrial automation. Our products are widely used in robotics, medical equipment, semiconductor manufacturing, and other high-demand applications.

Key Advantages:

✅ High Precision Control – Direct-drive structure eliminates backlash, achieving positioning accuracy of ±0.01° .
✅ Compact & Lightweight – Frameless design saves 50%+ installation space and reduces weight by 30% .
✅ High Torque Density – Optimized magnetic circuit design delivers industry-leading torque-to-volume ratio .
✅ Maintenance-Free – Brushless structure ensures 20,000+ hours of service life .
✅ Flexible Integration – Customizable windings and mechanical interfaces for seamless system integration .

Product Specifications:

60 Series – Compact Frameless Motors

Model Diameter (mm) Height (mm) Power (W) Rated Torque (N·m) Rated Speed (RPM) Weight (kg)
60SF-S10 60 10 100 0.32 2000-4000 0.14
60SF-S15 60 15 150 0.46 2000-4000 0.22
60SF-S20 60 20 200 0.64 2000-4000 0.27
60SF-S30 60 30 300 0.955 2000-4000 0.43

80 Series – Mid-Power Frameless Motors

Model Diameter (mm) Height (mm) Power (W) Rated Torque (N·m) Rated Speed (RPM) Weight (kg)
80SF-S18 80 18 348 0.95 3500 0.45
80SF-S25 80 25 476 1.3 3500 0.57
80SF-S30 80 30 471 1.5 3000 0.65

130 Series – High-Torque Frameless Motors

Model Diameter (mm) Height (mm) Power (W) Rated Torque (N·m) Rated Speed (RPM) Weight (kg)
130SF-S34 130 34 960 3.8 2400 1.88
130SF-S40 130 40 1500 7.2 2000 2.04

HETAI Frameless Motor 40mm 60mm 80mm 130mm

Note: Full specification sheets and technical drawings available upon request.

Application areas:

HETAI Frameless Motor 40mm 60mm 80mm 130mm

Hetai frameless motors - core power experts for industrial robotic arms, collaborative robots, and automated production lines"

"From precision assembly to flexible production, Hetai frameless motors drive the new future of intelligent manufacturing"

"Industrial robotic arms | Medical robots | Logistics automation - Hetai motors empower high-end equipment in multiple fields"

Product packaging:

Foam box independent packaging.

HETAI Frameless Motor 40mm 60mm 80mm 130mm

HETAI Frameless Motor 40mm 60mm 80mm 130mm
