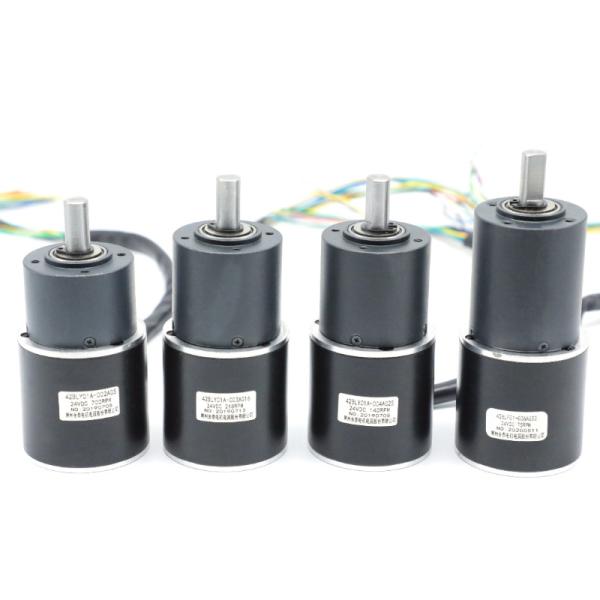

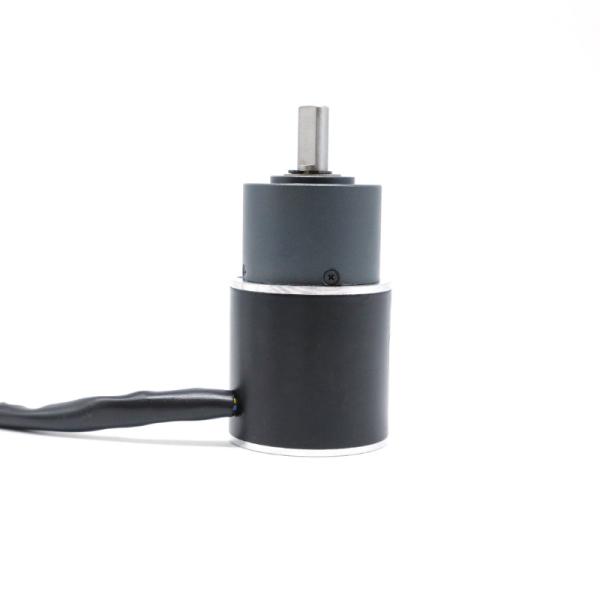

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
Specifications
Brand Name :
Hetai
Model Number :
42BLY01A-004AG25
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
28-31
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Gearbox Brushless Motor
Nominal Voltage :
24 V
Rated torque with gearbox :
0.72 N.M
Dielectric Strength :
500V AC 1 minute
No-load current :
0.25 A
Rated speed with gearbox :
140 RPM
Winding type :
Star
Resistance :
5Ω
Reduction Ratio :
1:25
Description

Nema17 42BLY01A-004AG25 0.72N.m 140rpm 25:1 reduction ratio brushless gear motor with gearbox

Brushless Geared Motors Brushless means no mechanical contact, no dust and no sparks. Since the windings are commutated electrically, there is no motor brush to wear out. Compact and efficient small factor brushless DC motor with ultra-high operating efficiency. High torque from a small form factor, low power consumption and peak performance at lower RPM for quiet operation. Brushless motors have clear advantages over the competition: very long service life (more than 3000 hours of operation), very low sound level (brushless switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics. This motor has internal drive and external drive, versatile and very simple to use.

Electrical Specification:

Product Name
Brushless Gearbox Motor
Model
42BLY01A-004AG25
Reduction Ratio
1:25
Voltage (V)
24 V
Rated Speed with gearbox (RPM)
140
Rated Torque with gearbox (N.M)
0.72
Power (W)
11
Insulation class
B

Mechanical Dimension

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox

High-quality Raw Materials

​Brushless Motor Final Inspection

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
Measure the Screw Hole Distance Measure the Length of Wire Measure the Length of PVC
0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
Test the Resistance Listening Test the speed

Automatic assembly line

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox

Noise test room

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox

Package&Delivery

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox

Certification of Hetai

0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox0.72N.M 140rpm 25:1 Reduction Ratio Brushless Gear Motor Nema17 With Gearbox
