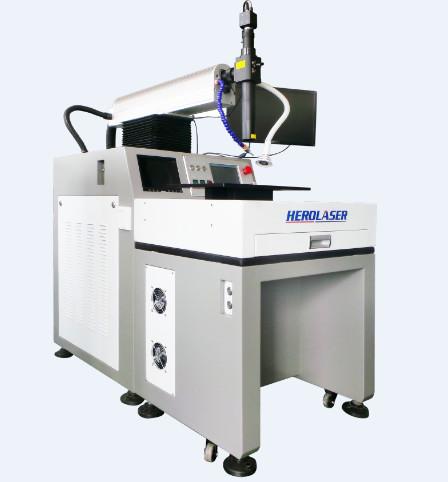

Two Dimensional MAX Automatic Laser Welding Machine For Hardware
Two Dimensional MAX Automatic Laser Welding Machine For Hardware
Specifications
Brand Name :
Herolaser
Model Number :
WL-WA-W200
Certification :
CE FDA Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 Set/Month
Delivery Time :
7~10 Work Day
Packaging Details :
Plywood Box
Brand :
Herolaser
Warranty :
1Year , 2 Year
Laser Source Brand :
IPG/MAX/RECI
Transportation :
Ocean Freight , Air Transportation , Railway Transportation
Deliver Method :
FOB , CFR
Application :
Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing
After-Sales Service :
Professional Technical Taem 24 Hours Online
Keywords :
Damage Free Marking
Description

Two - dimensional automatic laser welding machine adopts two - lamp ceramic reflection cavity imported from Britain, powerful, pulse programming and intelligent system management. Worktable Z axis can be electrically moved up and down focusing, industrial PC control. The standard configuration is the separated X/Y axis three dimensional automatic moving table. In addition, you can choose a rotating fixture (80MM or 125MM diameter can be selected) to achieve two-dimensional automatic laser welding. Monitoring system adopts microscope, red light, CCD and external cooling system.

Two Dimensional MAX Automatic Laser Welding Machine For Hardware

  • Adopts the UK imported double lamp ceramic condenser cavity, corrosion resistance, high temperature resistance, cavity life of 8-10 years
  • High production efficiency, fast welding speed, automatic production line can be realized
  • The laser head can be rotated 360°, the whole optical path part can be rotated 360° and the front and back telescopic
  • Two - dimensional electric table, can adjust the diameter of the spot

SN Item Parameter
1 Model ML-WA-W200
2 Laser Working Substance ND: YAG
3 Rated Output 200W
4 Maximum Output 240W
5 The Laser Wave Length 1064NM
6 Photoelectric Range 0.2MM—3.0MM(Adjust)
7 The Pulse Width 0.1MS-20MS
8 The Depth Of The Weld ≤2MM
9 Pulse Frequency ≤100HZ
10 The Machine Power 6KM
11 Control System PC
12 Aimed At Positioning CCD , Red Light
13 Table Travel 200*200MM—1200*1200MM(Optional)
14 Demand For Electricity 380V/Three-phase power/50HZ/100A
15 Host System Size 1600*1200*1300MM
16 Cooling System Dimensions 1200*300*900MM

Vacuum Cup stainless Steel Bowl Sensor Tungsten Filament
High Power Diode Triode Aluminum Alloy Laptop Case Cell Phone Battery
Door Handle Mould Electrical Accessories Filter
Nozzle Stainless Steel Products Golf Ball Head Zinc-Alloy Handicraft

Two Dimensional MAX Automatic Laser Welding Machine For Hardware

FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
