Specifications
Brand Name :
HEROLASER
Model Number :
ML-MF-1000l-LC
Certification :
CE/ISO9001/FDA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
$
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability :
100 Sets Per Month
Delivery Time :
7-10 Work days
Packaging Details :
Plywood Box
Model :
ML-MF-1000l-LC
Laser Power :
1000W
Laser Source Type :
IPG Fiber Laser Source
Laser Wavelength :
1064 nm
Cooling Water :
Deionized water
Maximum Power :
7500W
Auxiliary Gas :
Compressed air/Nitrogen
Working Condition :
5-40 ℃
Description

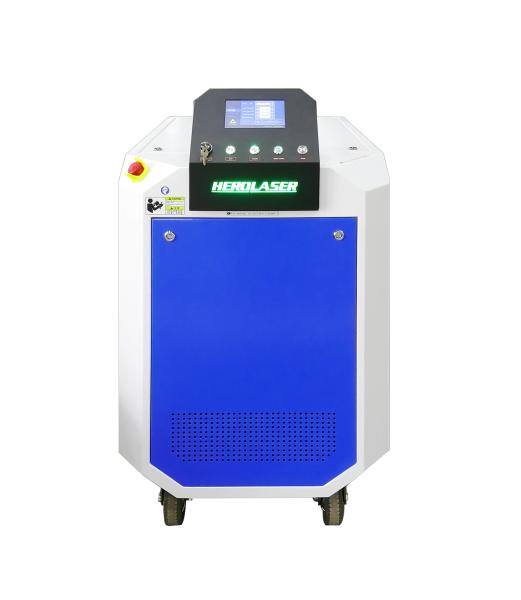

1000W Fiber Laser Cleaning Machine For Removal Plating Selective Cleaning

There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.

1000W Fiber laser rust removal machine for removal plating selective cleaning

Laser cleaning is a new"green" technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution.laser cleaning machine can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.

Technical Parameter

Description of high efficiency laser cleaning machine
Model ML-MF-1000l-LC
Laser power 1000W

Laser source type

IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22

Cabinet size

1420mm*850mm*1370mm (L*W*H)
Total weight(with water tank) 280kg
Maximum power 7500W
Focal depth 3mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa

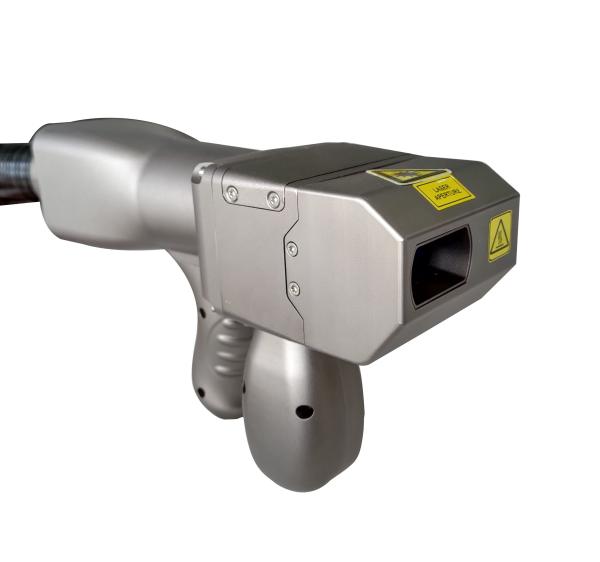

Optional accessory Handheld / Manipulator
Working condition 5-40
Application

Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning

Features

  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving

FAQ

1 Q: What is the warranty of the Portable Laser Cleaning Machine?

A: The warranty is 2 year, but we offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
