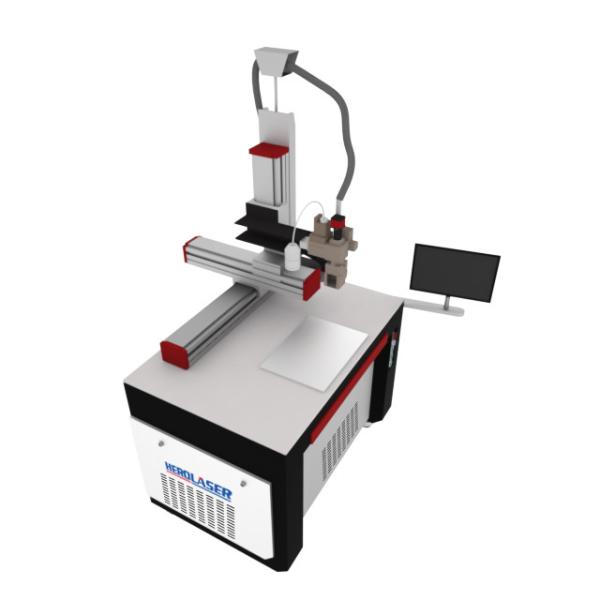

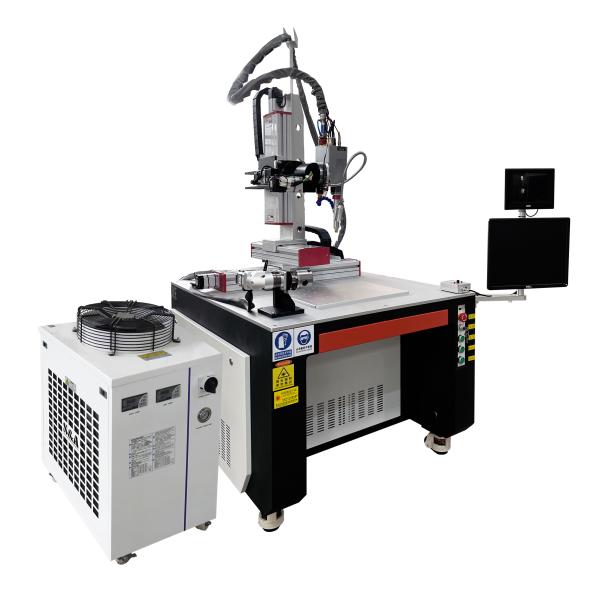

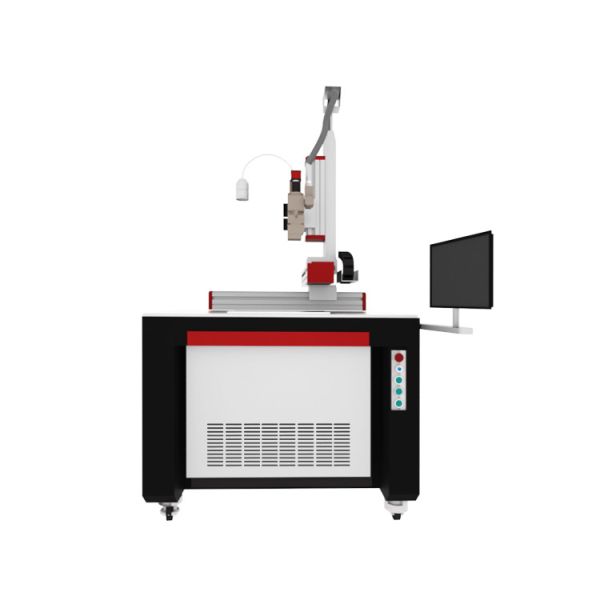

Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Double Station Constant Temperature Laser Soldering Machine Semiconductor
Specifications
Brand Name :
Purple Horn
Model Number :
ML-GL1000
Certification :
ISO9001, CE
Place of Origin :
China, Shenzhen
Laser power :
60W-200W
Laser type :
semiconductor
Focal length :
80/125/160mm (optional)
Temperature control range :
60°C-400°C
Temperature system accuracy :
± (0.3% reading +2 ° C) (ring temperature 23 ± 5 ° C)
positioning system :
Coaxial CCD monitoring + tin point CCD positioning
Description

Parameters

Model ML-WS-XF-ZD2-HW80
Laser power 60W-200W
Laser type semiconductor
Focal length 80/125/160mm (optional)
Temperature control range 60°C-400°C
Temperature system accuracy ± (0.3% reading +2 ° C) (ring temperature 23 ± 5 ° C)
positioning system Coaxial CCD monitoring + tin point CCD positioning
Equipment size 1100mm*1450mm*1750mm
Welding range 250mm250mm (single station)
Feeding stroke 1000mm
Number of motion axes 6 axis( × 1Y1Z1/X2Y2Z2)
Repeat positioning accuracy ±0.02mm
Dust removal system Automatic soot cleaning system
Overall weight 350Kg
Overall power ≤2.5KW
