W85Cu15 Flange Hermetic Packages Electronics For RF Packages / Opto Packages
W85Cu15 Flange Hermetic Packages Electronics For RF Packages / Opto Packages
Specifications
Brand Name :
JBNR
Model Number :
50WCu,60WCu,70WCu,85WCu
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
25days
Packaging Details :
as customer required
Material :
tungsten copper
Density :
16.4
CTE :
7.2
TC :
180-190
Brand :
JBNR
Application :
Hermetic Packages/RF Packages/Opto Packages
Description

W85Cu15 Flange For Hermetic Packages/RF Packages/Opto Packages

Description:
Electronic packaging material are requested certain mechanical strength, good electrical properties, thermal properties and chemical stability. According to the different type of integrated circuit and practical place, we choose different packaging structure and materials.

Advantages:
1. High thermal conductivity
2. Excellent hermeticity
3. Stampable sheets available
4. Semi-finished or finished (Ni/Au/Ag/NiPd/Au plated) products available
5. Low void

Product Properties:

Grade W Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

 Thermal conductivity W/(M·K)
90WCu 90±2% 17.0 6.5 180 (25℃) /176 (100℃)
85WCu 85±2% 16.4 7.2 190 (25℃) / 183 (100℃)
80WCu 80±2% 15.65 8.3 200 (25℃) / 197 (100℃)
75WCu 75±2% 14.9 9.0 230 (25℃) / 220 (100℃)
50WCu 50±2% 12.2 12.5 340 (25℃) / 310 (100℃)

Application:

These composite are widely used in applications such as optoelectronics packages, Microwave Packages, C Packages, Laser Submounts, etc..

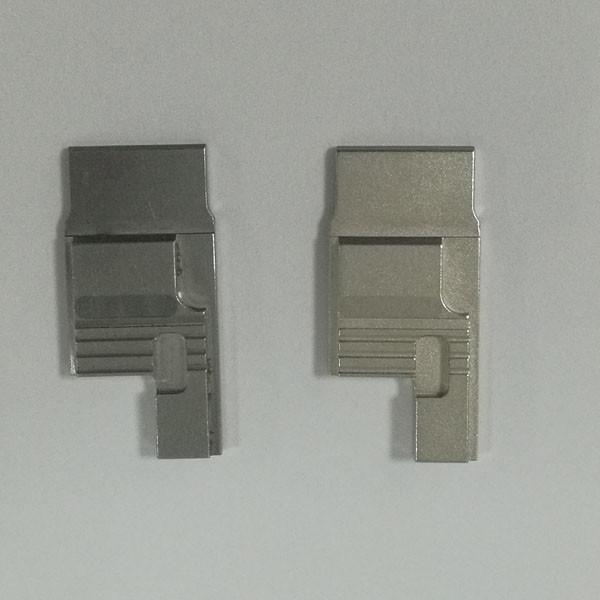

Product picture:
W85Cu15 Flange Hermetic Packages Electronics For RF Packages / Opto Packages
