Specifications
Brand Name :
JBNR
Model Number :
CPC141,CPC232,CPC300
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
copper/moly copper/copper
Density :
9.2
CTE :
9.5
TC :
260
Application :
Power Device Package
Plating :
Nickel and gold
Description

High Thermal Expansion Molybdenum Copper Cu/MoCu/Cu(CPC) sheet


Description:

CPC is a sandwich composite, CMC including a molybdenum core layer and two copper clad layers, CPC including a Mo-Cu alloy core layer and two copper clad layers . They have different CTE in X and γ direction, with higher thermal conductivity than that of W (Mo)-Cu.

Advantages:
1.More easily to be stamped into components than CMC
2.Very strong interface bonding which can repeatedly resist 850℃ heat shock
3.Higher thermal conductivity and lower cost
4.No magnetism

Product Properties:
Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Coefficient of thermal

Expansion ×10-6 (20℃)
CPC141 9.5 7.3

280(XY)/170(Z)
CPC232 9.3 10.2 255(XY)/250(Z)

Application:
Typical Applications: Microwave carriers and heat sinks, BGA Packages, LED packages, GaAs device mount,mobile phone base stations.

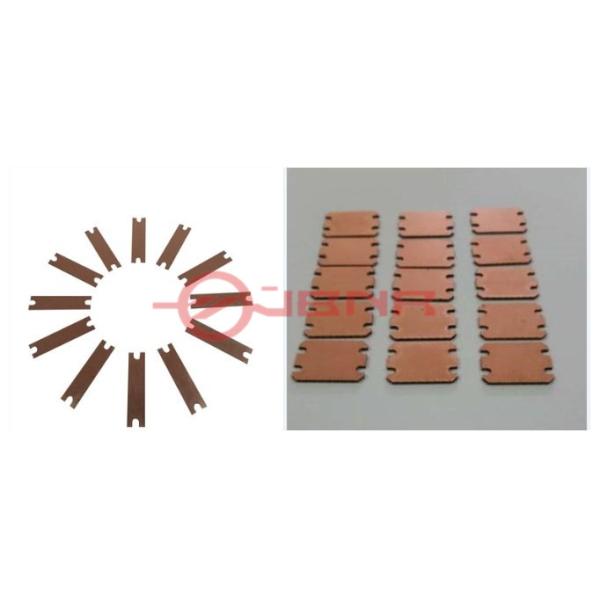

Product picture:

High Thermal Expansion Copper Molybdenum Heat Base Cu / MoCu / Cu ( CPC ) Sheet
