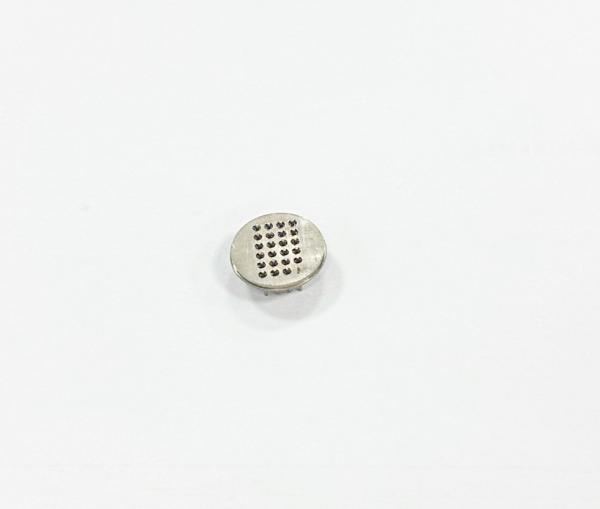

SSCore Hermetic Feedthrough Connectors Φ0.5mm-Φ3.2mm

Product Description:

We are able to tailor different types of sintered seal terminals to meet the customer's requirements. Below is a list of performance parameters for the terminals manufactured by us:

• Material: 45 Steel
• Hi-pot: 3000v and leak current of 0.5mA or less
• IR: 1000V and IR greater than 1000MΩ
• Leak Test: 4MPa N2 pressure, and no leakage
• Burst Test: 5MPa, with no leakage
• Operating Temperature Range: -70°C to 300°C

Features:

• Product Name: Hermetic Feedthrough Connectors
• Material: 45 Steel
• Core column: Φ0.5mm-Φ3.2mm
• Manufacturer: SSCore
• Temperature Rating: -70°C To 300°C
• Focus on: Hermetic Feedthrough Couplers, Hermetic Feedthrough Devices, Hermetic Connectors System

Technical Parameters:

All products of our company adopt an environmentally friendly electroless nickel plating method, which ensures the coating thickness be 3-5 microns. The nickel coating is free from endangerous elements, such as mercury, lead, cadmium and hexavalent chromium. In addition, it meets the European Union's standards and can provide SGS environmental testing report. Its main purpose is to act as electrical connectors.

Applications:

Our company offers sintered joints to benefit customers in the sensor industry. The joints provide a number of advantageous features, such as sealing, insulation, and the capability to transmit pressure signals. These properties make them ideal for use in pressure, temperature, and signal sensors.

The joint construction ensures that they remain reliable despite pressure, vibration, shock, temperature, and other challenging conditions. This makes them a top choice for engineering components and products in a variety of applications.

Customization:

Brand Name: SSCore

Place of Origin: ShenZheng

Minimum Order Quantity: 5 pcs

Price: 10 - 60 $

Packaging Details: vacuum package

Delivery Time: 7 - 14 work days

Payment Terms: L/C, D/A, T/T, D/P

Supply Ability: 50w pieces a month

Core column: Φ0.5mm-Φ3.2mm

Temperature Rating: -70°C To 300°C.

Material: 45 Steel

Product Name: Hermetic Feedthrough Connectors

Connector Type: Hermetic

Hermetic Feedthrough Devices, Hermetic Seal Connectors, Hermetic Feedthrough Terminals, Hermetic Feedthrough Connectors

Support and Services:

We provide comprehensive technical support and services for our Hermetic Feedthrough Connectors. Our team of experienced engineers and technicians are available to answer any questions or help you choose the right connectors for your application.

We provide:

• Product installation and troubleshooting assistance
• Comprehensive warranty and maintenance programs
• Customized connector solutions
• On-site technical support
• Free product training

For more information about our Hermetic Feedthrough Connectors and how we can help you, please contact us today.
