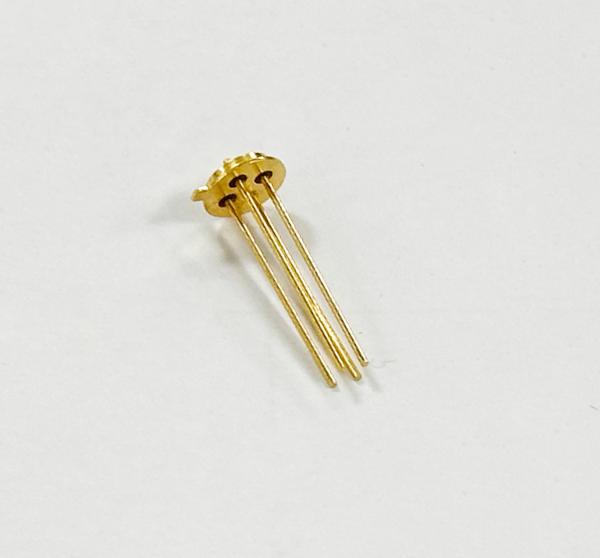

45 Steel Glass Seal Connectors For Industrial Application

Product Description:

We offer customizable sintered seal terminals to meet all our customer's needs. The performance parameters of the terminals we produce adhere to the following criteria:

• Material: 45 Steel
• Hi-pot: 3000v with leak current ≤ 0.5MA
• IR Test: 1000V with IR > 1000MΩ
• Leak Test: 4MPa N2 pressure with no leak
• Burst Test: 5MPa with no leak
• Operating Temperature Range: -70°C - 300°C

Features:

• Product Name: Glass To Metal Seals
• Surface Treatment: Electroless Nickel
• Material: 45 Steel
• Current Rating: 30A
• Temperature Range: -70℃ To 300℃
• Voltage Rating: 12V-540V
• Glass-to-Metal Bond Seals
• Glass-Metal Seals
• Metal-to-Glass Bond Seals

Technical Parameters:

Our company specializes in using the environmentally-friendly electroless nickel plating method. The coating thickness ranges from 3-5 microns. Compared to traditional plating methods, this kind of nickel coating does not contain harmful substances such as mercury, lead, cadmium, and hexavalent chromium. Furthermore, it complies with the standards of the European Union, and we have a SGS environmental testing report. Finally, this coating can serve for electrical connections.

Applications:

Customization:

• Brand Name: SSCore
• Place of Origin: ShenZheng
• Certification: IATF16949
• Minimum Order Quantity: 5 pcs
• Price: 10 - 40 $
• Packaging Details: vacuum package
• Delivery Time: 7 - 14 work days
• Payment Terms: L/C, D/A, T/T, D/P
• Supply Ability: 50w pieces a month
• Temperature Range: -70℃ To 300℃
• Surface Treatment: Electroless Nickel
• Application: Industrial
• Current Rating: 30A
• Material: 45 Steel
• Special Features: SSCore provides Metal-to-Glass Seals, Metal-to-Glass Bond Seals and Glass-Metal Seals with superior performance, reliable quality and competitive price.

Support and Services:

Our team offers comprehensive technical support and services for all Glass To Metal Seals products. We provide:

• Guidance on product selection and design
• Technical support and troubleshooting
• Comprehensive product testing and evaluation
• In-depth product training
• Custom fabrication and design solutions
• On-site installation and maintenance services
• Continuous product enhancement and optimization

Our team of expert technicians is available to answer any questions you may have. Contact us today to get started!
