Specifications
Brand Name :
Bengbu Tongchen
Model Number :
Tc-4892
Certification :
CE & ISO
Place of Origin :
Anhui ,China
MOQ :
1
Price :
5500-7500
Payment Terms :
T/T
Supply Ability :
Unlimited Supply
Delivery Time :
15-45 Days
Packaging Details :
Wooden Box
Power Source :
Electric
Machinery Test Report :
Provided
Guarantee Time :
1 Year
Dimension :
AH,China
Computerized :
Yes
Description

Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter

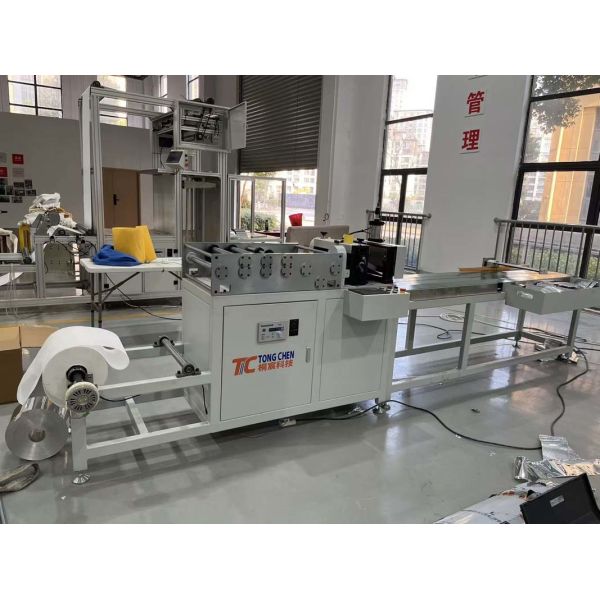

This Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter is engineered for high-volume production of aluminum foil and paper separators. Featuring a precision-painted frame for both accuracy and visual appeal, the ergonomic design facilitates easy roll replacement, adjustment, and operation. The fully optimized process encompasses roll feeding, tension control, flanging, corrugation, sizing, cutting, and automatic discharge—ensuring maximum efficiency, superior quality, and minimal operator fatigue.

Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter

Technical Specifications
MaterialAluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter700 mm
Maximum Material Width320 mm
Material Thickness0.04 ± 0.005 mm
Corrugated Edge Width After Pressing3 mm - 10 mm
Corrugation Height3 mm - 6 mm (customizable)
Sizing LengthFreely adjustable
Production Speed (Max)0 - 30 sheets/min
Power Supply380V, 50Hz
Compressed Air Requirement0.6 m³/min
Machine Dimensions (L × W × H)3800 × 950 × 1395 mm
Motor ConfigurationThree-phase motor
Mechanical Parts TreatmentShafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components BrandJiahe brand, Harbin bearings
Instrument InstallationReasonable layout, easy to remove
Key Features
  • Unwinding Section: Magnetic powder brake with dedicated motor ensures constant tension control, keeping aluminum foil straight for smooth flanging, corrugation, and cutting. Includes air-expandable shaft.
  • Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable production.
  • Flanging Section: Roller-type flanging continuously flattens and smooths aluminum foil edges to meet width requirements.
  • Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height requirements; full roller group replacement requires no adjustment.
  • Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision cutting of corrugated sheets.

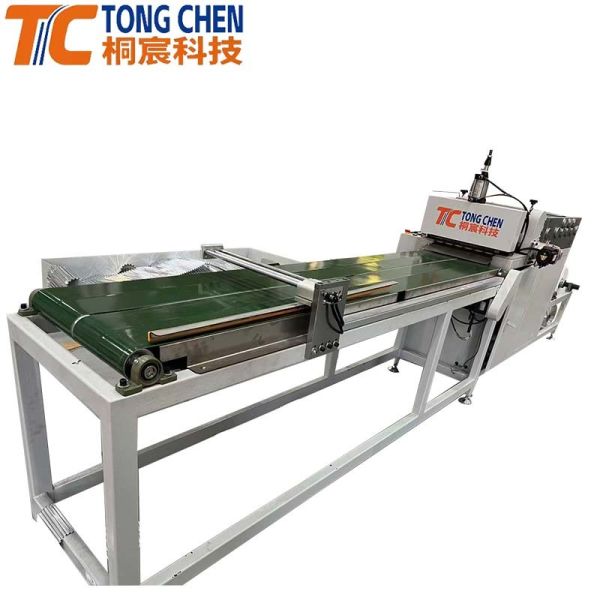

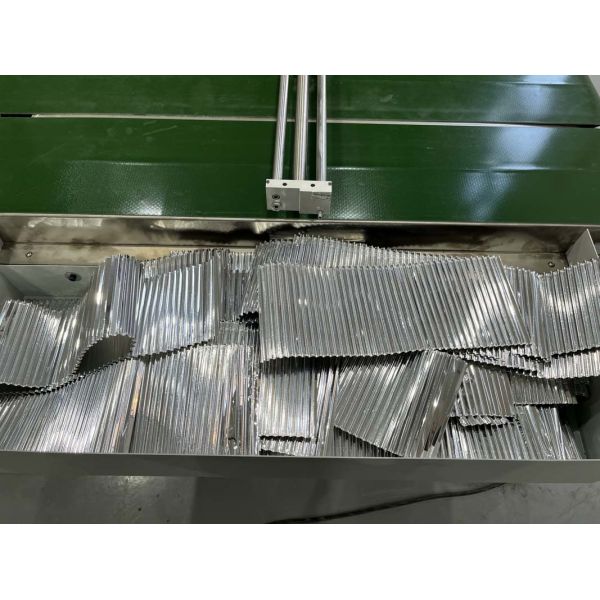

  • Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets, simplifying collection and stacking.

Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter

Our Advantages
  • High production efficiency (up to 30 sheets/min)
  • Fully customizable corrugation height (3-6mm) and sheet length
  • Stable production due to tension-controlled feeding
  • Ergonomic design improves operator comfort and safety
  • Easy maintenance with accessible and replaceable components
  • Suitable for both aluminum foil and paper materials
  • Painted frame ensures durability and precision alignment
Product Details
Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter
Company Profile
Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter
About us: Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Product Packaging
Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
