PP Pleated and Glue Production Line
PP Pleated and Glue Production Line
PP Pleated and Glue Production Line
PP Pleated and Glue Production Line
PP Pleated and Glue Production Line
PP Pleated and Glue Production Line
Specifications
Brand Name :
TONGCHEN
Model Number :
TC-5569
Certification :
ISO
Place of Origin :
Anhui,China
MOQ :
1
Price :
$7000~15000
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
30
Packaging Details :
Wooden Box
Computerized :
Yes
Guarantee Time :
1 Year
Electrical Components :
Custom-made high-precision sensors and imported relays
Mechanical Parts :
Shafts plated with hard and decorative chromium; others blackened
Description

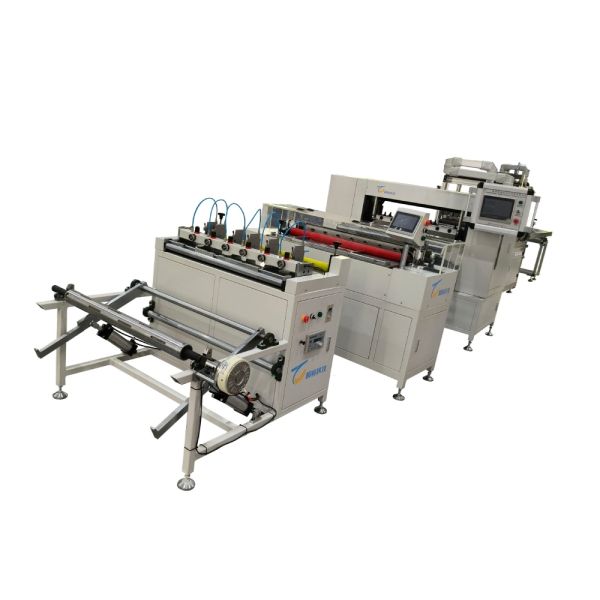

PP Pleated and Glue Production Line
The PP Pleated and Glue Production Line is an advanced and fully automated system designed for the production of pleated polypropylene (PP) filter materials. It integrates filter paper feeding, pre-slitting, pleating, and gluing processes into one continuous workflow, achieving high precision, stable operation, and efficient output.
This production line is ideal for automotive, air purification, water filtration, and industrial filtration industries. It is engineered for high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.

PP Pleated and Glue Production Line

Main Features

1. Integrated Automation – Combines feeding, pleating, and gluing for continuous and efficient production.

2. Computer Touchscreen Control – Intelligent interface for setting and monitoring speed, temperature, and glue parameters.

3. Precise Glue Control System – 50kg hot-melt glue unit with dual 26-point spray heads for even, accurate glue application.

4. Adjustable Folding Mechanism – Flexible pleating height and width to adapt to different filter materials.

5. High-Quality Components – Equipped with Hui Chuan motors, PLCs, and sensors for reliable and precise performance.

6. Energy Efficient and Durable – Built with robust materials and advanced control systems to ensure long lifespan and low maintenance.

Technical Specifications

Technical Specifications

Pre-slitting Paper Conveyor
Filter Paper Folder
Gluing Machine (Model 55-700)
Parameter Specification
Parameter Specification
Parameter Specification
Adjustable paper conveyor speed 0.5 – 12 m/min
Maximum product width 800 mm
Maximum product width 700 mm
Adjustable filter paper width 32 – 800 mm
Adjustable folding height range 6 – 55 mm
Adjustable folding height range 6 – 55 mm
Power supply voltage 220V / 50Hz
Folding speed 0 – 100 folds per minute
Production speed 4 – 25 m/min
Motor power 0.55 kW
Power supply voltage 380V / 50Hz
Glue strip spacing 25.4 mm
Machine weight 350 kg
Motor power 1.1 kW
Number of glue strips 2 × 26, each controlled by electronic valve
Dimensions (L × W × H) 1500 × 1300 × 1100 mm
Preheating power 4 kW
Glue-off control Automatic intermittent glue-off function



Temperature control range Ambient to 200°C
Power supply voltage 380V / 50Hz



Operating air pressure 0.6 MPa
Total power 13 kW



Machine weight 650 kg
Operating air pressure 0.6 MPa



Dimensions (L × W × H) 1670 × 1720 × 1240 mm
Machine weight 500 kg






Glue machine dimensions (L × W × H) 160 × 100 × 130 mm






Main machine dimensions (L × W × H) 4000 × 130 × 160 mm



Applications

  • PP filter cartridge manufacturing
  • Air filter and water filter production
  • Industrial and environmental filtration equipment
  • Automotive air purification systems
Packaging & Delivery
Selling Units: Single item
PP Pleated and Glue Production Line PP Pleated and Glue Production Line

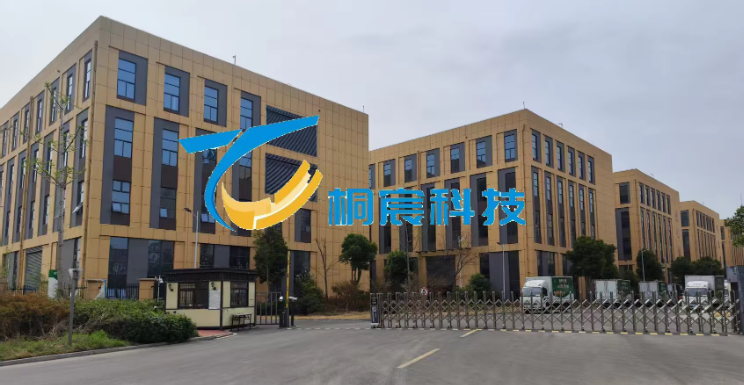

Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
