Specifications
Brand Name :
Bengbu Tongchen
Model Number :
TCFH-700
Place of Origin :
Anhui Bengbu
MOQ :
1
Price :
25000
Payment Terms :
T/T
Supply Ability :
Unlimited Supply
Delivery Time :
15-45 Days
Packaging Details :
Wooden Box
Certification :
CE/ISO
Power Source :
Electric
Machinery Test Report :
Provided
Guarantee Time :
1 Year
Dimension :
3800*950*1395 mm (L*W*H)
Computerized :
Yes
Product origin :
Bengbu Anhui China
Description

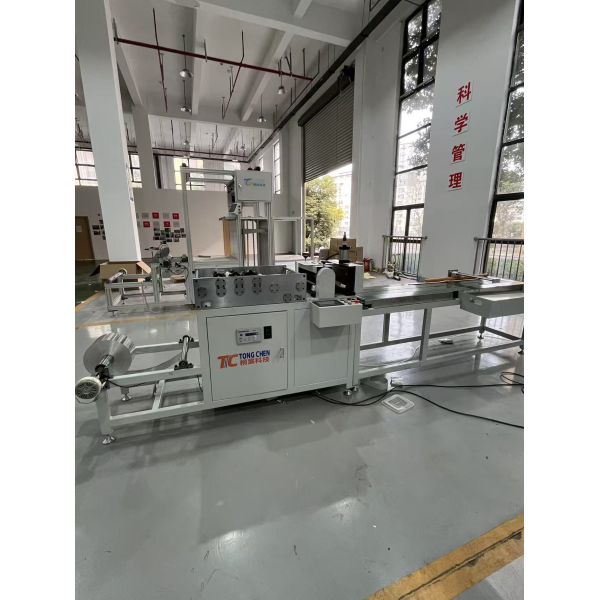

Separated HEPA Filter Corrugating Machine/For Paper or Aluminum

The 350mm Corrugating Machine is a state-of-the-art solution for producing aluminum foil and paper separators. Featuring a painted frame for precision and aesthetic appeal, the ergonomic layout allows easy roll replacement, adjustment, and operation. The process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for efficiency, quality, and minimal operator fatigue.
Product Specifications
Item Specificatiom
Material Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter 700 mm
Maximum Material Width 320 mm
Material Thickness 0.04 ± 0.005 mm
Corrugated Edge Width After Pressing 3 mm – 10 mm
Corrugation Height 3 mm – 6 mm (customizable)
Sizing Length Freely adjustable
Production Speed (Max) 0 – 30 sheets/min
Power Supply 380V, 50Hz
Compressed Air Requirement 0.6 m³/min
Machine Dimensions (L × W × H) 3800 × 950 × 1395 mm
Motor Configuration Three-phase motor
Mechanical Parts Treatment Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand Jiahe brand, Harbin bearings
Instrument Installation Reasonable layout, easy to remove
Main Features
  • Unwinding Section: Magnetic powder brake with a dedicated motor ensures constant tension control, keeping aluminum foil straight for smooth flanging, corrugation, and cutting. Includes air-expandable shaft.
  • Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable production.
  • Flanging Section: Roller-type flanging continuously flattens and smooths aluminum foil edges to meet width requirements.
  • Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height requirements; full roller group replacement requires no adjustment.
  • Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision cutting of corrugated sheets.
  • Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets, simplifying collection and stacking.

300mm Pleat Height High-tempurture Fiberglass Pleating Production Line


Product Advantages

  • High production efficiency (up to 30 sheets/min).

  • Fully customizable corrugation height (3–6mm) and sheet length.

  • Stable production due to tension-controlled feeding.

  • Ergonomic design improves operator comfort and safety.

  • Easy maintenance with accessible and replaceable components.

  • Suitable for both aluminum foil and paper materials.

  • Painted frame ensures durability and precision alignment.

Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
300mm Pleat Height High-tempurture Fiberglass Pleating Production Line
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
300mm Pleat Height High-tempurture Fiberglass Pleating Production Line 300mm Pleat Height High-tempurture Fiberglass Pleating Production Line
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
