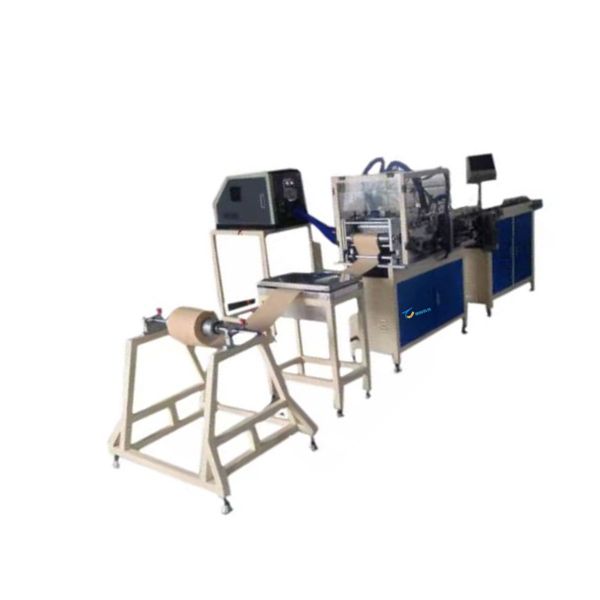

High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
Specifications
Brand Name :
TONGCHEN
Model Number :
TC-5569
Certification :
ISO
Place of Origin :
Anhui,China
MOQ :
1
Price :
$7000~14500
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
30
Packaging Details :
Wooden Box
Computerized :
Yes
Guarantee Time :
1 Year
Width :
90–320mm
Pleating Height :
20–58mm
Production Speed :
5–25m/min (adjustable)
Temperature Range :
0–300°C
Description
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
The High Quality Full-Auto Air Filter Paper Pleating Production Line integrates paper feeding, heating, humidifying, pleating, hot-melt bonding, conveying, and automatic counting into one streamlined production flow. Both the pleating machine speed and conveyor belt speed are computer-controlled for flexibility and high efficiency. With high-precision rollers, independent glue temperature control, and a built-in spray device to prevent paper damage, the system delivers stable performance for continuous and mass-scale filter manufacturing.
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line

Main Features

  • Computer-Controlled Transmission System
    Both the work speed of the machine and the transmission speed of the conveyor belt are controlled by computer, and can be easily adjusted.
  • High-Precision Roller Forming
    Both impression and bubble formation are finished on the identical pairs of rollers with high precision.
  • Automatic Heating & Process-Based Temperature Control
    The temperature can be predetermined in accordance with the requirement of the technological process.
    When the pleating machine runs, the heater will start to work automatically.
  • Paper Protection Spray Device
    It adopts the spray device, which is advantageous to prevent the paper from breaking when it is marked by rollers.
  • Fast Melting & Frequency-Controlled Glue Dispensing
    Melt quickly, and the glue dispensing quantity can be easily controlled by frequency converter.
  • Pressure Control Unit for Safety
    Set pressure control unit in glue feeding circuit to ensure circuit safety.
  • Independent Temperature-Controlled Glue Hose & Spray Nozzle
    Both the glue hose and spray nozzle adopt independent temperature control for easy operation.
    They also support application on inclined surfaces.
Technical Specifications

Item

Specification

Width

90–320mm

Pleating Height

20–58mm

Production Speed

5–25m/min (adjustable)

Temperature Range

0–300°C

Heater Power

8.5kW

Transmission Power of Pleating Machine

0.75kW

Conveyor Belt Transmission Power

0.25kW

Conveyor Belt Speed

0–5m/min (adjustable)

Working Air Pressure

0.6MPa

Power Supply Voltage

380V / 50Hz

Machine Weight

1100kg

Machine Size (L×W×H)

7500 × 950 × 1750mm


Applications

The TCPG-350 line is technically used for manufacturing:

  • Car panel air filters
  • Square automotive air filter elements
  • Flat panel filter media used in passenger vehicles
  • Cabin air filter pre-pleating (depending on material)
  • HVAC panel filter media processing (optional)

This equipment is suitable for large-scale, stable, and precise filter material processing in automotive filtration factories.

Packaging & Delivery
Selling Units: Single item
High Quality Full-Auto Panel Air Filter Paper Pleating Production Line High Quality Full-Auto Panel Air Filter Paper Pleating Production Line
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
