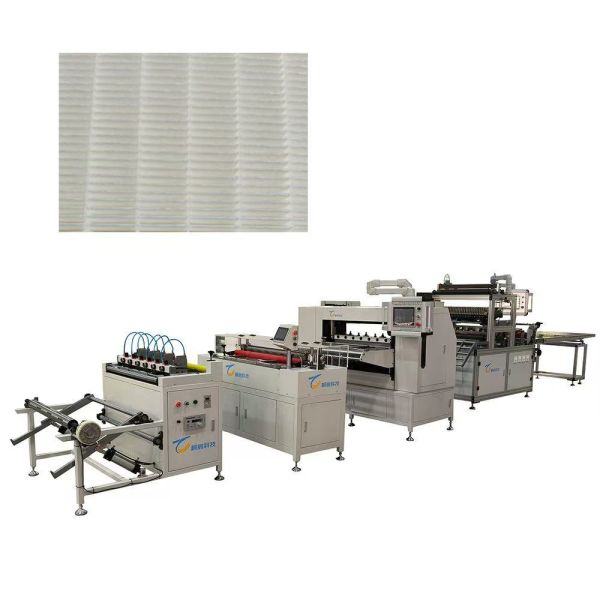

Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Specifications
Brand Name :
TONGCHEN
Model Number :
TC-5569
Certification :
ISO
Place of Origin :
Anhui,China
MOQ :
1
Price :
$20000~25000
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
30
Packaging Details :
Wooden Box
Computerized :
Yes
Guarantee Time :
1 Year
Precise Glue Control System :
50kg Hot-melt Glue Unit With Dual 26-point Spray Heads For Even, Accurate Glue Application
Adjustable Folding Mechanism :
Flexible Pleating Height And Width To Adapt To Different Filter Materials
Description
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
The Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line is an advanced and fully automated system designed for the production of pleated polypropylene (PP) filter materials. It integrates filter paper feeding, pre-slitting, pleating, and gluing processes into one continuous workflow, achieving high precision, stable operation, and efficient output.It is ideal for automotive, air purification, water filtration, and industrial filtration industries. It is engineered for high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Technical Specifications
Pre-slitting Paper Conveyor
Filter Paper Folder
Gluing Machine (Model 55-700)
Parameter Specification
Parameter Specification
Parameter Specification
Adjustable paper conveyor speed 0.5 – 12 m/min
Maximum product width 800 mm
Maximum product width 700 mm
Adjustable filter paper width 32 – 800 mm
Adjustable folding height range 6 – 55 mm
Adjustable folding height range 6 – 55 mm
Power supply voltage 220V / 50Hz
Folding speed 0 – 100 folds per minute
Production speed 4 – 25 m/min
Motor power 0.55 kW
Power supply voltage 380V / 50Hz
Glue strip spacing 25.4 mm
Machine weight 350 kg
Motor power 1.1 kW
Number of glue strips 2 × 26, each controlled by electronic valve
Dimensions (L × W × H) 1500 × 1300 × 1100 mm
Preheating power 4 kW
Glue-off control Automatic intermittent glue-off function



Temperature control range Ambient to 200°C
Power supply voltage 380V / 50Hz



Operating air pressure 0.6 MPa
Total power 13 kW



Machine weight 650 kg
Operating air pressure 0.6 MPa



Dimensions (L × W × H) 1670 × 1720 × 1240 mm
Machine weight 500 kg






Glue machine dimensions (L × W × H) 160 × 100 × 130 mm






Main machine dimensions (L × W × H) 4000 × 130 × 160 mm

Working Principle

The production line starts by feeding and pre-slitting the PP filter material, followed by pleating (folding) to form a uniform wave structure. The gluing system, composed of dual 26-point spray heads, applies hot-melt adhesive strips with high accuracy. All major functions—speed, glue volume, and temperature—are controlled via a touchscreen PLC interface, ensuring synchronized operation of each component.

The pleating mechanism can move vertically and horizontally, enabling adjustment for various filter sizes and thicknesses. This flexible design allows seamless switching between different product specifications with minimal downtime.

Applications

  • PP filter cartridge manufacturing
  • Air filter and water filter production
  • Industrial and environmental filtration equipment
  • Automotive air purification systems



Packaging & Delivery
Selling Units: Single item
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
