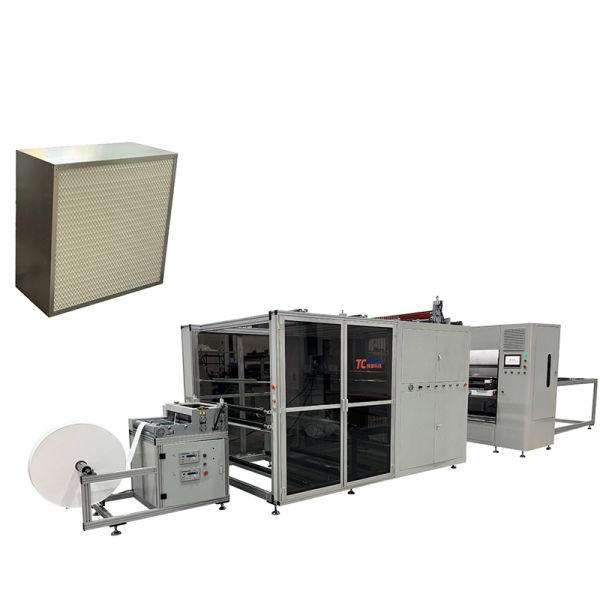

High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
Specifications
Brand Name :
Bengbu Tongchen
Model Number :
TCFH-700
Certification :
CE/ISO
Place of Origin :
Anhui Bengbu
MOQ :
1
Price :
28000
Payment Terms :
T/T
Supply Ability :
Unlimited Supply
Delivery Time :
15-45 Days
Packaging Details :
Wooden Box
Power Source :
Electric
Machinery Test Report :
Provided
Guarantee Time :
1 Year
Dimension :
3800*950*1395 mm (L*W*H)
Computerized :
Yes
Product origin :
Bengbu Anhui China
Description

High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa air Filter Making Machine

Our production line specializes in manufacturing high-temperature resistant glass fiber folded filter paper, designed for demanding industrial applications. The equipment integrates cutting-edge automation technology to ensure precision folding, uniform adhesive application, and high-speed production of filter cores used in HEPA/ULPA filters, automotive filtration, and thermal insulation systems.
Product Specifications
Pre-cutting Paper Feeding Machine
Parameter Specification
Paper feeding speed 0.5m/min - 10m/min adjustable
Adjustable width 25 - 350mm
Filter paper thickness

1.5mm
Power supply voltage 380V/50Hz
Motor power

0.55kw
Working air pressure 0.6Mpa
Machine weight

250kg
Dimensions 1280×1100×1200mm (L×W×H)
Folding Machine
Parameter Specification
Maximum product width 1000mm
Adjustable folding height 20-300mm
Folding speed 0 - 60 folds/minute (adjustable)
Glass fiber line distance 32mm
Power supply voltage 380V - 50Hz
Main motor power 4×0.75kw
Ascending motor power 0.4KW
Working air pressure 0.6Mpa
Machine weight 450kg
Dimensions

1800×1500×2250mm (L×W×H)

High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine

Main Features

(1) Feeding function

(2) Powder brake, air expansion shaft, tension regulator, tension can be freely adjusted

(3) Feeding roller, conveying roller, both ends of the conveying roller have an adjustable cylinder

(4) Customized cutting knife

(5) Line cutting is customized according to the line width, automatic cutting of the upper and lower layers through special processing materials to control the stability of the lines

(6) Pre-cutting paper feeding machine is the latest improved cutting machine, the cutting lines adopt servo control system for synchronous movement with the folding machine

(7) Upper and lower lines and filter paper are automatically synchronous with folding

High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine

Product Advantages

1. Precision & Flexibility

Multi-Layer Compatibility: Handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment.

Dual-Side Processing: Simultaneous cutting and folding reduce production time by 30% compared to traditional methods.

2. Durability & Efficiency

High-Temperature Resistance: Processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems.

Energy-Saving Design: Servo motors and PLC reduce power consumption by 15% (total power: 16kW).

3. Smart Automation

Touchscreen Control: Real-time parameter adjustment (speed, fold height, tension) via HMI interface.

Quick Changeover: Modular rollers and pre-set recipes minimize downtime for multi-product batches.

Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine High Efficiency Non Partition HEPA Glass Fiber Filter Paper Pleating Machine Hepa Air Filter Making Machine
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
