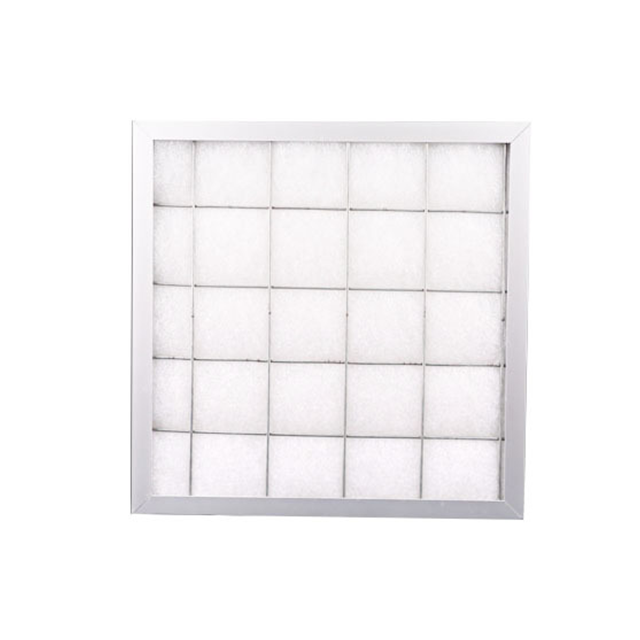

G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
Specifications
Brand Name :
Heathy Filter
Certification :
ISO9001/RoHS/SGS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-20days
Packaging Details :
PE bag+box
Construction :
Wire Mesh
Material :
Pre filter meadia
Feature :
Initial resistance,and large dust holding capacity
Efficiency :
G1 --G4 pre-filter
Type :
Panel Pre Filter
Size :
Customzised
Warranty :
3 Months
OEM&ODM service :
Welcome
Description

High Quality Initial Resistance, Large Dust Holding Capacity Panel Pre Filter

Specialty:

The material is coarse efficiency filter media,small resistance.

Used in Pre-filtration and the ventilation system for purification.

Lower initial resistance,and large dust holding capacity.

Specification:

Type

Size(mm)

W*H*T

Rated Air Flow (m3/h )

Initial Pressure

Drop (Pa)

Final Pressure

Drop(Pa)

Average

arrestance

Frame

Media
HF-BS-G3 595x595x21 3200 30 250 85%

Aluminum alloy

Galvanized

sheet

 G3/G4 Synthetic fibre, non-woven fabrics
495x595x21 2700 30 250 85%
295x595x21 1600 30 250 85%
495x495x21 2200 30 250 85%
HF-BS-G4 595x595x25 3200 35 250 95%
495x595x25 2700 35 250 95%
295x595x25 1600 35 250 95%
495x495x25 2200 35 250 95%

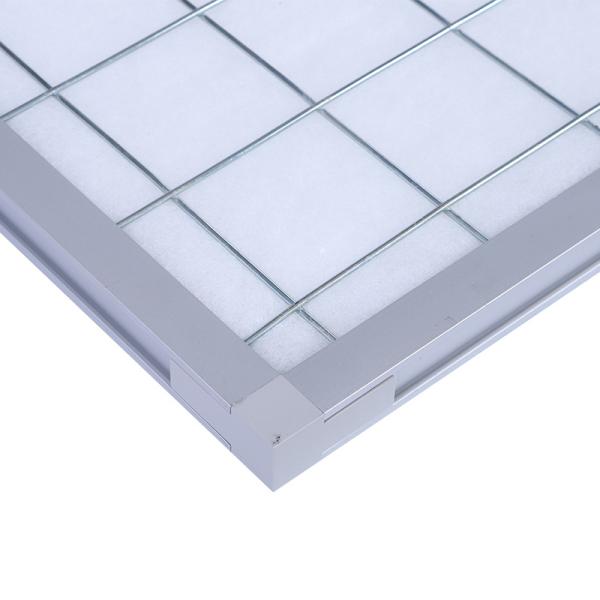

Detailed Displays:

G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
G2 G3 G4 Panel Filters MERV3 4 Aluminum Mesh Frame Synthetic Fiber Air Filter
