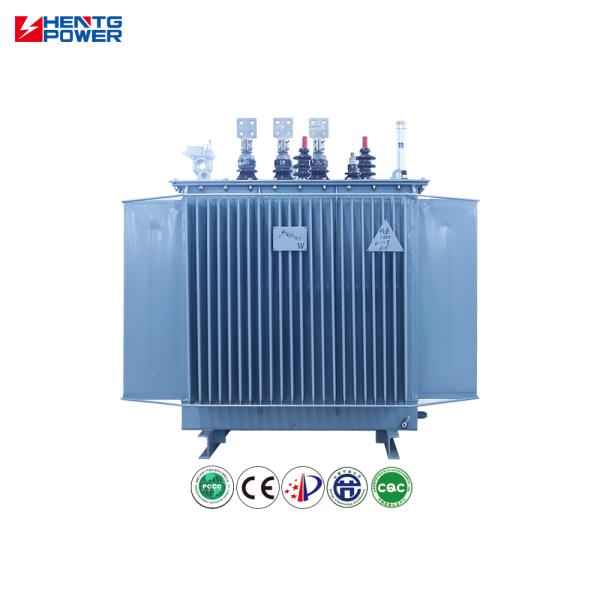

Oil Immersed Power Transformer 630 KVA - 1600KVA Outdoor Copper Three-Phase Transformers
Outdoor Oil Immersed Power Transformer Copper Three Phase Transformers 1600kva Outdoor Oil Immersed Power Transformer Copper Three Phase Transformers 1600kva
Key Features
Flexible installation for various project requirements
Environmentally friendly - supports carbon neutrality goals
International certifications ensure smooth overseas compliance
Product Specifications
Attribute Value
Type Distribution transformer, Oil-filled Transformer
Material Copper, Copper Winding
Frequency 50Hz, 60Hz
Winding Material Copper
Phase Three
Coil Structure Circular coil
Input Voltage 10kV, 6kV, 6.3KV
Cooling Method ONAF
Vector Group Yyn0/Dyn11
Standard IEC60076
Transformer type S13 Oil-immersed Transformer
Warranty 2 Years
Rated HV Voltage 10kV
Impedance Voltage 4%-6%
Insulation Mineral Oil
Rated Power 10kVA-500MVA
Temperature Rise ≤ 65℃
Product Description

The S13 oil-immersed distribution transformer is an advanced design based on the original S11 distribution transformer. Through research and application of new materials and technologies combined with independent innovation, we've optimized the core and coil structure to significantly reduce no-load loss and noise levels.

Compared to the national standard JB/T10088-2004, our transformers demonstrate:

  • 20% average reduction in noise levels
  • Domestic advanced performance level
  • Ideal for urban and rural distribution network centers
Technical Parameters
Rated Capacity (KVA) Vector Group Voltage Combination Tapping Range No-load Loss Load Loss No-load Current Impedance
30 Yyn0 / Dyn11 10 6.3 6 ±5% ±2X2.5% 80 630 1.5 4.0
50 100 910 1.3
63 110 1090 1.2
80 130 1310 1.2
100 150 1580 1.1
125 170 1890 1.1
160 200 2310 1.0
200 240 2730 1.0
250 290 3200 0.9
315 340 3830 0.9
400 410 4520 0.8
500 480 5410 0.8
630 570 6200 0.6 4.5
800 700 7500 0.6
1000 830 10300 0.6
1250 970 12000 0.5
1600 1170 14500 0.5
Ordering Process

Step 1: We respond within 1 hour with transformer recommendations, reasonable quotations, and payment terms. Our professional drawing and technical teams will confirm all drawing details with you within 7 days after payment, including technical data, weight, and parts list.

Step 2: After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide both QC reports and test reports, with strict raw material screening for quality assurance.

Step 3: Our professional team provides installation guidance and supports on-site installation. All products come with a 2+ year warranty for your peace of mind.

Why Choose Our Transformers?
  • In-house R&D & Manufacturing for guaranteed quality
  • Fast delivery with quick response times
  • OEM/ODM customization available
  • Comprehensive after-sales support
  • Extensive global export experience
Frequently Asked Questions
Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide. Founded in 2011 with 100,000 square meter facilities, we specialize in reliable, high-performance solutions for global power systems.

How do we guarantee quality?

We implement strict quality control measures including pre-production samples, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture both oil-type and dry-type transformers up to 500KV 480MVA, compliant with ANSI/IEEE/DOE2016/CSA/IEC60076 standards.

What makes us different?

Our professional team includes 30+ senior engineers providing 24/7 technical support with 30-minute response times. We confirm all drawing details within 7 days and offer comprehensive warranty coverage.

What services do we provide?

We accept OEM orders and offer flexible business payment terms. Our services include custom design, manufacturing, testing, installation support, and extended warranty options.
