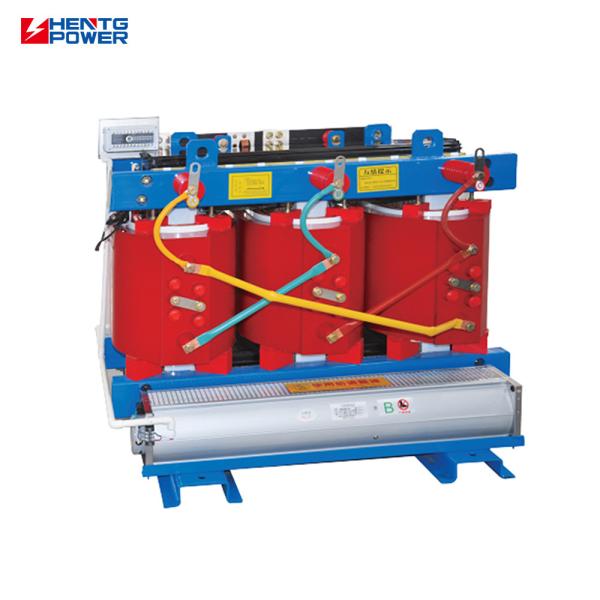

Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Specifications
Description
Hentg Power 3 Phase Dry Type Power Transformer 315KVA 400KVA 500KVA 630KVA Cast Resin Transformer Price Copper Winding
Product Specifications
AttributeValue
TypeDistribution transformer, Power Isolation Transformer
Frequency50Hz, 60Hz
Winding MaterialCopper
ApplicationPower
PhaseThree
Coil StructureLayered Winding
Coil NumberTriple-winding coil
Input Voltage3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Cooling MethodANAF
Vector GroupDyn11/Yyn0
Transformer TypeS13-MRL Oil-immersed Transformer
Technical Specifications
Rated Capacity (KVA)Vector GroupVoltage CombinationNo-load LossLoad LossNo-load CurrentImpedance
30Yyn0 / Dyn1110 6.3 6 ±5% ±2X2.5% (+3/-1)X2.5% 0.413564024.0
50 1959002
80 26512401.5
100 29014101.5
125 34016601.3
160 38519101.3
200 44522701.1
250 51524801.1
315 63531201
400 70535901
500 83543901
630 96552900.856.0
Product Description

The cast resin dry type transformer is a type of SC(B) dry transformer with epoxy resin, widely used in various industrial applications. Its winding surface consists of high-quality protective material that forms a durable cover, ensuring reliable performance even in harsh environments with dust and humidity.
This transformer utilizes advanced resin casting technology where coils are cast in a vacuum state using specialized equipment. The epoxy resin serves as an insulating material, making it also known as an epoxy cast resin dry type transformer.

Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Our Process
Step 1: Consultation & Quotation

We respond to inquiries within 1 hour, recommending suitable transformers based on your requirements. Our team provides competitive quotations and payment terms. Within 7 days after payment, we confirm all technical specifications, weight, and parts list through detailed drawings.

Step 2: Production & Quality Assurance

After finalizing production drawings, we prepare materials and begin manufacturing. All raw materials undergo strict screening. Our quality control includes QC reports and test reports for every unit. We can provide special accessories upon request.

Step 3: Installation & Support

Our professional team provides installation guidance and on-site support when needed. All products come with a minimum 2-year warranty. We're committed to creating win-win partnerships with our clients.

Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Certifications
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Product Advantages
SG(B)13, SC(B)13 Type Dry Transformer
  • Safety Performance: Oil-free design prevents fire and explosion risks, ideal for high-safety environments
  • Environmental Characteristics: Pollution-free operation with low noise levels, meeting green energy standards
  • Structural Strength: Advanced casting technology and premium insulation materials ensure high mechanical strength and short-circuit resistance
  • Thermal Stability: Minimal partial discharge and excellent thermal stability for long-term high-load operation
  • Intelligent Control: Temperature monitoring system with automatic air cooling, alarm, and trip functions
  • Energy Efficiency: No-load and load losses below national standards, delivering significant energy savings
  • Heat Dissipation: Natural and forced air cooling options provide strong overload capacity for temporary peak demands
Company Profile
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Frequently Asked Questions
Q: Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions, founded in 2011 with a 100,000 square meter facility. We specialize in reliable, high-performance solutions for global power systems.

Q: How can we guarantee quality?

We conduct pre-production sampling and final inspections before shipment, providing QC and test reports. We manufacture oil-type and dry-type distribution transformers up to 500KV 480MVA, following ANSI/IEEE/DOE2016/CSA/IEC60076 standards, with a minimum 2-year warranty.

Q: Why choose us?

Our professional team of 30+ senior engineers provides 24/7 technical support with 30-minute response times. We confirm all drawing details within 7 days and offer comprehensive after-sales service.

Q: What services can we provide?

We accept OEM orders and offer flexible payment terms tailored to your business needs.
