Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Specifications
Description
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Product Specifications
Attribute Value
Phase Three
Product Name Three Phase Oil Immersed Transformer
Coil Number Two Windings, Multi Winding, Three Windings
Application Power Transformer
Coil Structure Round coil, Shell-Type Coil, Layer coil, Fully sealed construction, Disc Coil
Output Voltage 10kV, 415V, 220V, 110V, 380V, 400V, 440V, 480V
Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV
Frequency 50Hz, 60Hz
Type Oil-Immersed Transformer, Voltage Regulator Transformer
Winding Materials Copper/Aluminum
Vector Group Yyn0/Dyn11
Customization Accept
Technical Specifications
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
S20 Type Energy-Efficient Secondary Oil-Immersed Transformer
Rated Capacity (KVA) Vector Group Voltage Combination HV Tapping Range LV No-load Loss Load Loss (Dy) Load Loss (Yy) Impedance
30 Yyn0 / Dyn11 10 6.3 6 ±5% ±2X2.5% 0.4 70 505 480 4.0
50 90 730 695
63 100 870 830
80 115 1050 1000
100 135 1265 1200
125 150 1510 1440
160 180 1850 1760
200 215 2185 2080
250 260 2560 2440
315 305 3065 2920
400 370 3615 3440
500 430 4330 4120
630 510 4960 4960 4.5
800 630 6000 6000
1000 745 8240 8240
1250 870 9600 9600
1600 1050 11600 11600
2000 1225 14640 14640 5.0
2500 1440 14840 14840
Product Documentation
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA

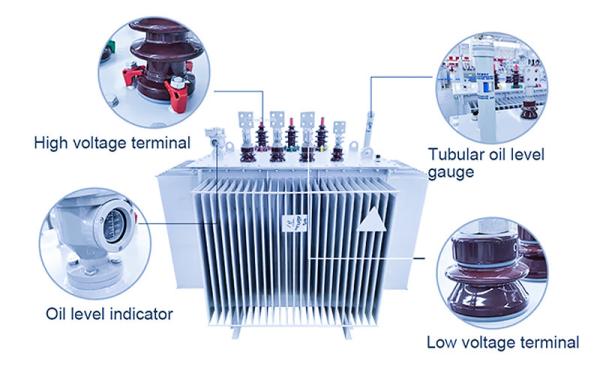

Products Description
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Installation Instructions
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Consulting Process
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA

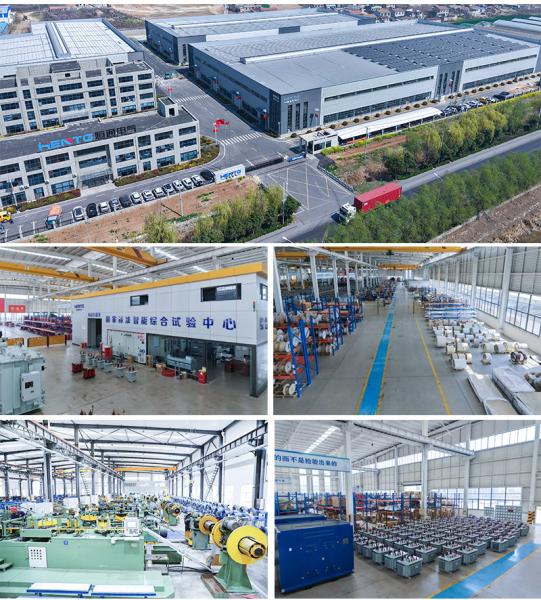

Production Process
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Company Profile
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Why Choose Us?
  • Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
  • 100,000m² factory, 250+ workers, 30+ senior engineers and 8 production lines, 20000+ sets annual production capacity.
  • 100% OQC testing with 8 main detection contents.
  • 15+ years power transformer designing and manufacturing experience.
  • Comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard
  • Cross-industry power transformer solution.
  • Global on-site technical support.
Certifications
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Business Partners
Three Phase Step Down Oil Immersed Distribution Transformer 30 KVA 50 KVA 100 KVA
Frequently Asked Questions
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide?
Accept OEM, business payment are negotiated.
