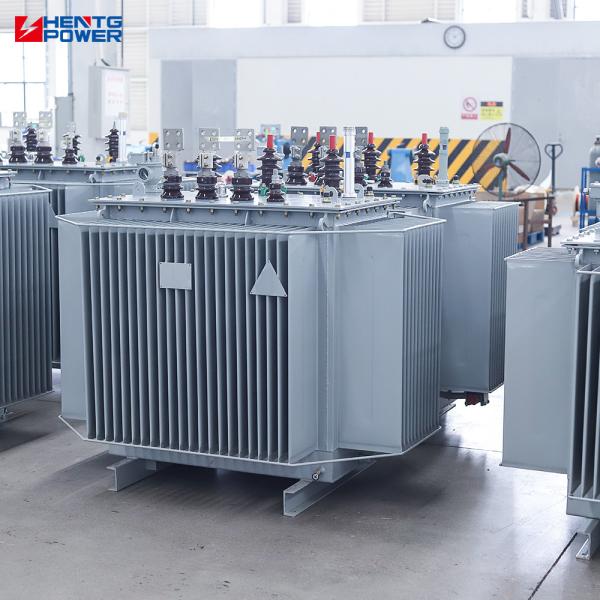

3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
Specifications
Description
HENTG POWER Transformer Manufacturer 10KV 100KVA 125KVA Three Phase Oil Type Transformer
Product Specifications
Attribute Value
Frequency 50Hz, 60Hz
Phase Three
Coil Number Two Windings, Multi Winding
Application Power Transformer
Coil Structure Round coil, Shell-Type Coil
Output Voltage 220V, 380V, 400V, 440V, 480V
Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV
Type Oil-Immersed Transformer, Oil Type
Winding Material 100% Copper/Aluminum
Shape Rectangle
Capacity 100KVA, 125KVA
Vector Group Dyn11 / Yyn0
Usage Power Distribution System Power Transformer
Warranty 2 Years
Cooling ONAN/ONAF or Customized
Rated Power 10kVA - 500MVA
Impedance 4%
Product Description

The Type S13 oil-immersed distribution transformer is an advanced design based on the S11 model, incorporating new materials and technologies through independent innovation. Optimized core and coil structures significantly reduce no-load loss and noise levels by an average of 20% compared to JB/T10088-2004 standards, achieving domestic advanced performance levels.

High Voltage Level Design
  • Rated voltage of 35KV for medium voltage distribution networks
  • Ensures stable power supply for urban and industrial applications
  • Wide compatibility with various power systems
Premium Oil-Immersed Cooling System
  • Fully sealed tank with high-quality insulating oil
  • Efficient heat dissipation reduces operating temperature
  • Extends transformer lifespan and improves operational safety
Technical Parameters
Rated Capacity (KVA) Vector Group Voltage Combination No-load Loss Load Loss No-load Current Impedance
30 Yyn0 / Dyn11 10/6.3/6 ±5% ±2X2.5% 80 630 1.5 4.0
50 100 910 1.3
63 110 1090 1.2
100 150 1580 1.1
125 170 1890 1.1
160 200 2310 1.0
200 240 2730 1.0
250 290 3200 0.9
315 340 3830 0.9
500 480 5410 0.8
Our Service Process
Step 1: Consultation & Quotation

We respond within 1 hour with suitable transformer recommendations, competitive quotations, and flexible payment terms. Our professional drawing and technical teams will confirm all specifications within 7 days after payment, including technical data, weight, and parts list.

Step 2: Production & Quality Assurance

After finalizing production drawings, we source materials, manufacture, and conduct rigorous quality inspections. We provide both QC and test reports, with raw materials strictly screened for quality. Custom accessories available upon request.

Step 3: Installation & After-Sales

Our professional team provides installation guidance and on-site support when needed. All products come with a 2-year warranty and comprehensive after-sales service.

Have questions? Contact our technical team for expert advice!
Why Choose HENTG POWER?
  • In-house R&D & Manufacturing with Quality Assurance
  • Fast Delivery & Quick Response Times
  • OEM/ODM Customization Available
  • Comprehensive After-Sales Support
  • Extensive Global Export Experience
Frequently Asked Questions
Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011. Our 100,000 square meter facility specializes in reliable, high-performance solutions for global power systems.

How do we guarantee quality?

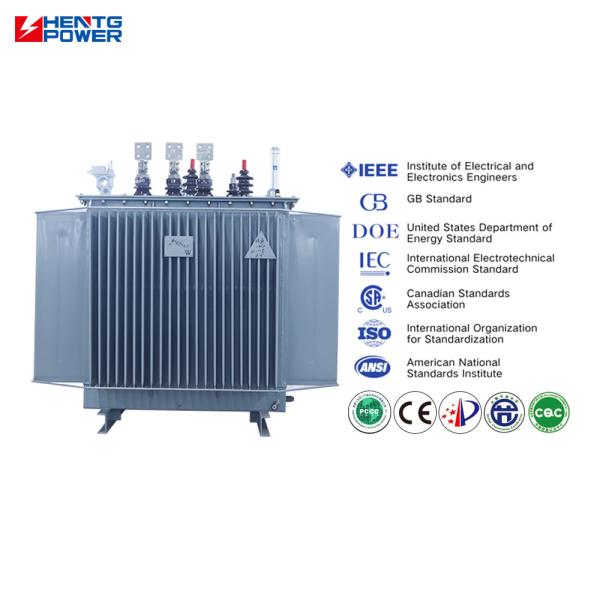

We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture to ANSI/IEEE/DOE2016/CSA/IEC60076 standards. All products come with a 2+ year warranty.

What services do we provide?

We offer OEM services with negotiable payment terms. Our professional technical team includes 30+ senior engineers providing 24/7 support with 30-minute response times.
