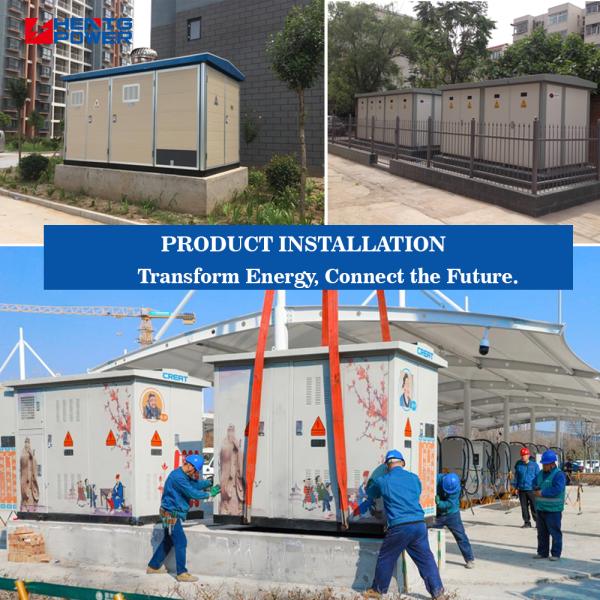

35KV Substation Three Phase Compact Transformer Substation for Solar Plant and Industrial Applications
A high-efficiency, compact three-phase transformer substation designed for 35KV applications in solar power plants and industrial control systems. This integrated solution combines reliable power transformation with space-saving design.
Key Features:
  • Compact design for space-constrained installations
  • 35KV voltage rating for industrial power applications
  • Three-phase power transformation for balanced loads
  • Optimized for solar plant integration
  • Combined industrial control functionality
  • Robust construction for harsh environments
  • Energy-efficient operation
  • Comprehensive safety features
Technical Specifications:
Parameter Specification
Rated Voltage 35KV
Phase Configuration Three Phase
Application Solar Plants / Industrial Controls
Design Type Compact Substation
Cooling Method ONAN (Oil Natural Air Natural)
Insulation Class Class A (105°C)
Protection Degree IP54 (Standard)
Typical Applications:
  • Solar power generation plants
  • Industrial power distribution systems
  • Manufacturing facility power infrastructure
  • Renewable energy integration systems
  • High-voltage power conversion stations
Technical Data For YB Pre-installed Substation
HV
Item
Unit
Date
Rated Frequecy
Hz
50
Rated Voltage
kV
6 10 35
Max Working Voltage
kV
6.9 11.5 40.5
Industrial Requency Voltage-resisting Time /
kV
32/36 42/48 95/118
isolationBallisticVoltage-resisting
Thunder and Lighting Ballistic Voltage-resisting Time /isolation Sectional Port
kV
60/70 75/85 185/215
Rated Curent
A
400 630
Rated Brief-period Curent-resisting
kA
12.5(2s) 16(2s) 20(2s)
Rated Crest Value Curent-resisting
kA
32.5 40 50
LV
Rated Voltage
V
380 220
Rated Current Of Major Return Circuit
A
100-3200
Rated short-circuit Current-resisting
kA
15 30 50
Rated Crest Value Current-resisting
kA
30 63 110
Branch Circuit
A
10-800
Quantity Of Branch
line
1/12
Compensation Circuit
kVAR
0-360
Transforming
Rated Capacity
kVA
50-2000
Short-circuit lmpendance
%
4 6
Scope Of Branch Connection
+2x2.5% ±5%
Vector Group
Yyn0 Dyn11

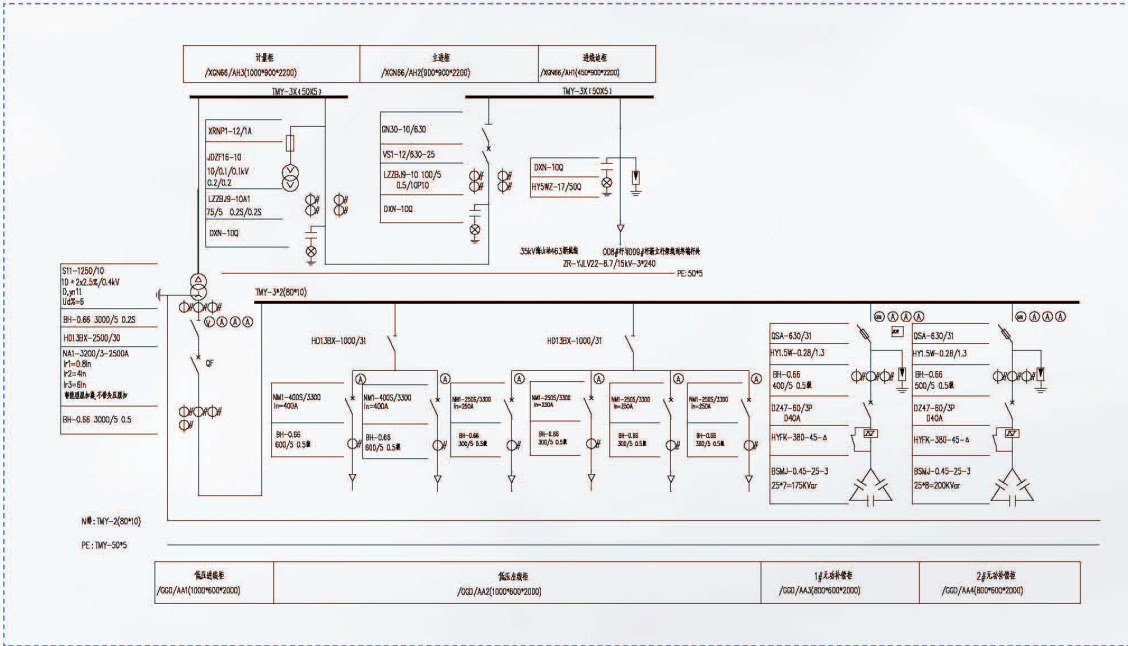

High-Voltage Side Load Switching Solution

35KV Three Phase Compact Substation for Solar Plant with Industrial Controls

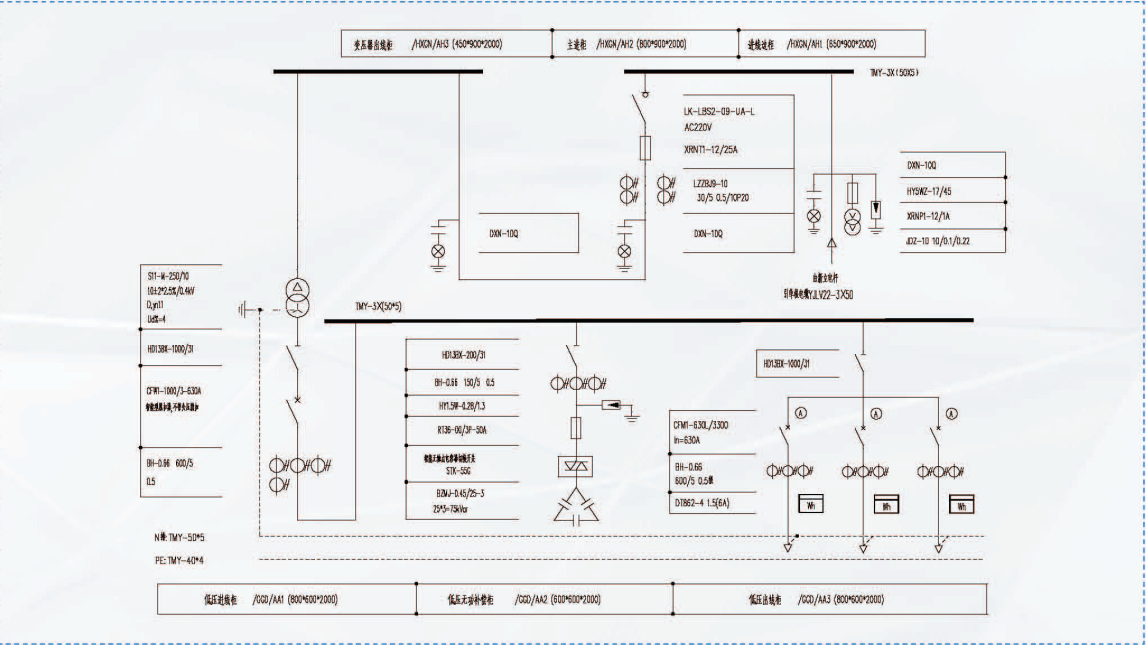

High-Voltage Side Vacuum Circuit Breaker Solution

35KV Three Phase Compact Substation for Solar Plant with Industrial Controls
