High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
Specifications
Description
High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kva 1250kva

HENTG POWER High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kva 1250kva

The SC(B)13 dry type power transformer is designed for modern power distribution systems that require high safety, high efficiency, and long-term reliability. Manufactured with advanced cast-resin insulation and premium copper windings, this transformer offers excellent electrical performance with significantly reduced losses.

Equipped with a forced-air cooling fan system, the SC(B)13 ensures superior heat dissipation, stable temperature rise, and extended overload capabilities--making it suitable for demanding environments such as commercial buildings, data centers, industrial plants, and public facilities.

High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
Technical Specifications
Rated capacity (KVA) Vector Group Voltage Combination No-load loss Load loss No-load current Impedance
30 Yyn0 / Dyn11 10 6.3 6 135 640 2 4.0
50 195 900 2
80 265 1240 1.5
100 290 1410 1.5
125 340 1660 1.3
160 385 1910 1.3
200 445 2270 1.1
250 515 2480 1.1
315 635 3120 1 6.0
400 705 3590 1
500 835 4390 1
630 965 5290 0.85
630 935 5360 0.85
800 1090 6260 0.85
1000 1270 7310 0.85
1250 1500 8720 0.85
Key Features
  • High Efficiency, Low Loss (SC(B)13 Standard)
    Optimized electromagnetic design reduces load and no-load losses.
  • Cast Resin Technology
    Fire-resistant, moisture-proof, and dust-proof; ideal for indoor applications.
  • High-Grade Copper Windings
    Ensures excellent conductivity and stable long-term performance.
  • Forced-Air Cooling System (Optional Fans)
    Enhances cooling capacity and increases overload capability.
  • Safe & Eco-Friendly
    No oil leakage, zero pollution, and low noise operation.
  • Customizable Voltage & Tappings
    Supports special voltage, tapping range, enclosure type, sensors, and more.
Application Scenario
  • Commercial Complexes & Shopping Malls
  • Hospitals, Schools & Public Buildings
  • Industrial Plants & Manufacturing Facilities
  • Data Centers & Critical Power Systems
  • Renewable Energy & Distribution Networks
High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity

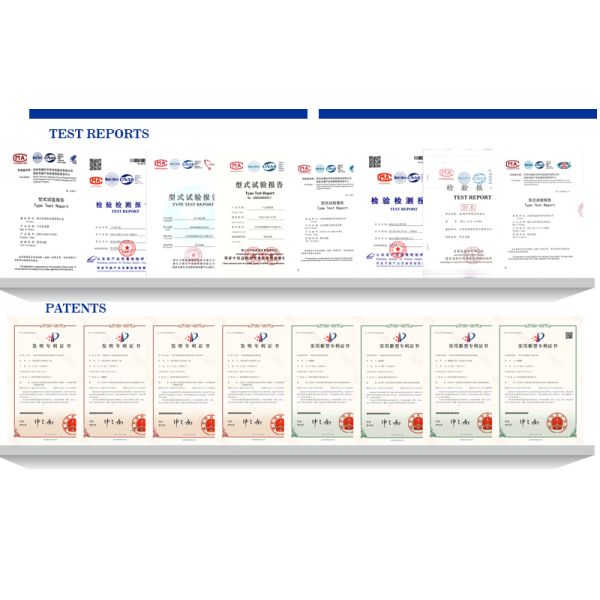

Certifications
High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
Frequently Asked Questions
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide?
Accept OEM, business payment are negotiated.
