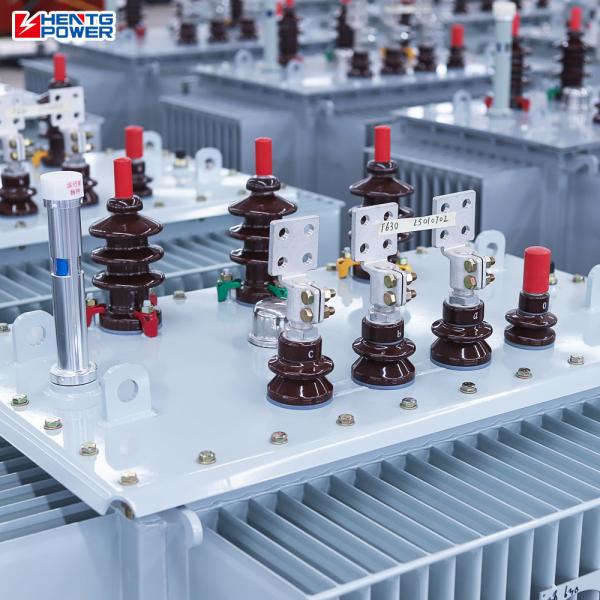

150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
S22
MOQ :
2 sets
Price :
CN¥1790/units
Certification :
CE
Type :
distribution transformer, Oil-filled Transformer
Material :
silicon steel sheet, Copper, Steel
Frequency :
50Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Electronic
Phase :
Three
Coil Structure :
Circular coil
Coil Number :
Dual-winding coil
Input Voltage :
10kV, 6kV
Output Voltage :
0.4kV
Product name :
Three Phase Transformer
Application :
Power Distribution System
Size :
200*120*150cm
Cooling Method :
ANAF
Vector Group :
Yyno
Description
150KV Electric Power Step Down Transformer Three-phase Oil Immersed Transformer
Product Attributes
Attribute Value
Type distribution transformer, Oil-filled Transformer
Material silicon steel sheet, Copper, Steel
Frequency 50Hz
Shape Rectangle
Winding Material Copper
Application Electronic
Phase Three
Coil Structure Circular coil
Coil Number Dual-winding coil
Input Voltage 10kV, 6kV
Output Voltage 0.4kV
Product Name Three Phase Transformer
Application Power Distribution System
Size 200*120*150cm
Cooling Method ANAF
Vector Group Yyno
Product Description

Our oil-immersed distribution transformers range from 30kVA to 2500kVA, with voltage levels up to 35kV. They are widely used in power utilities, renewable energy, industrial facilities, railway systems, and urban infrastructure. Designed to IEC and ANSI standards, our transformers offer high efficiency, low losses, and long service life, suitable for both indoor and outdoor environments.

  • Fully sealed structure: Improved moisture resistance and extended service life
  • Customization available: Voltage, connection method, and enclosure options
  • International certifications: CE, ISO9001, ISO14001 compliant
  • Flexible installation for various project requirements
  • Environmentally friendly - supports carbon neutrality goals
  • International certifications ensure smooth overseas compliance
Main Product Parameters of S22 10KV Double Winding Series
Rated capacity (KVA) Vector Group Voltage Combination HV Tapping range LV Dy Yy No-load loss Load loss Impedance
30 Yyn0 / Dyn11 10 6.3 6 ±5% ±2X2.5% 0.4 65 455 430 4.0
150KV Electric Power Step DownTransformer Three-phase Oil Immersed Transformer
Why Choose Us?
  • Professional 30+ senior engineers offer 24 hours online service and response within 30 mins.
  • 100,000m² factory, 250+ workers, 30+ senior engineers and 8 production lines, 20000+ sets annual production capacity.
  • 100% OQC testing with 8 main detection contents.
  • 15+ years power transformer designing and manufacturing experience.
  • Comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.
  • Cross-industry power transformer solution.
  • Global on-site technical support.
Application Scenarios
Power Distribution Networks
