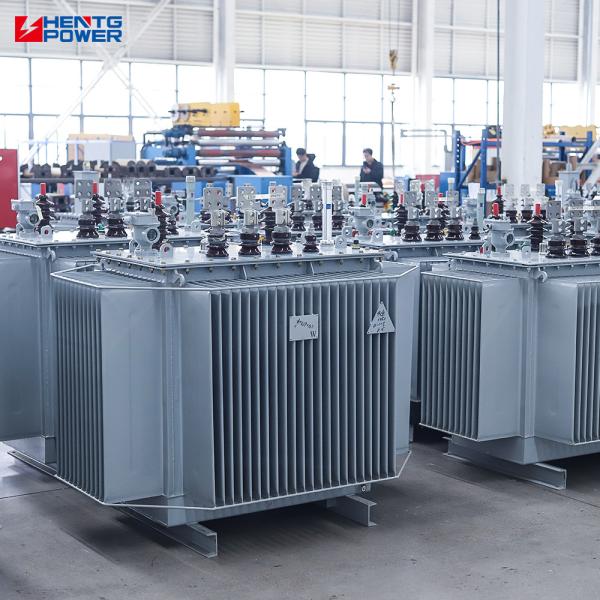

Copper Winding Oil Immersed Type Transformer 2500Kva 2000kva 1250Kva 1600Kva Low Noise
Copper Winding Oil Immersed Type Transformer 2500Kva 2000kva 1250Kva 1600Kva Low Noise
Copper Winding Oil Immersed Type Transformer 2500Kva 2000kva 1250Kva 1600Kva Low Noise
Copper Winding Oil Immersed Type Transformer 2500Kva 2000kva 1250Kva 1600Kva Low Noise
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
S13
Certification :
CE
Price :
CN¥80,833.26-144,821.80/pieces
Type :
power transformer, distribution transformer, Oil-filled Transformer
Frequency :
50Hz, 60Hz
Winding Material :
Copper
application :
Power
Phase :
Three
Coil Structure :
Layered Winding
Coil Number :
Multi-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage :
5V, 400V , 208V, 200V, 415V, 127V, 11kV, 12V , 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Product name :
Three Phase Transformer
Material :
Aluminum Winding
Application :
Power Distribution System
Cooling Method :
ONAN ONAF OFAF
Vector Group :
Dyn11/Yyn0
Usage :
Power Electronic
Product type :
Tranformer
Feature :
Long Service Life
MOQ :
2 sets
Description
Oil Immersed Transformers 2500 Kva 2000kva 1250 Kva 1600 Kva Three Phase Copper Power Electrical Transformer Price
Oil-immersed transformers (30KVA–2500KVA) with low loss, high efficiency, and customizable design. Ideal for industrial, grid, and renewable projects. IEC/ANSI compliant.

International Certifications & Full Factory Testing
Compliant with IEC, ANSI, and BS standards, with CE, ISO9001, and type test certificates available.
100% factory-tested for electrical performance and vacuum-dried for insulation reliability.
Ensures safe and compliant procurement for global projects with guaranteed performance.

Fully sealed structure: Improved moisture resistance and extended service life
Customization available: Voltage, connection method, and enclosure options
Wide capacity range: 30kVA to 2500kVA for various power requirements
Energy-saving: 20% lower no-load loss, 15% lower load loss
Low-noise design: Operating noise below 50dB for noise-sensitive environments



Copper Winding Oil Immersed Type Transformer 2500Kva 2000kva 1250Kva 1600Kva Low Noise
Our oil-immersed distribution transformers range from 30kVA to 2500kVA, with voltage levels up to 35kV. They are widely used in power utilities, renewable energy, industrial facilities, railway systems, and urban infrastructure. Designed to IEC and ANSI standards, our transformers offer high efficiency, low losses, and long service life, suitable for both indoor and outdoor environments.
Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.
Ideal distribution equipment for urban and rural distribution network centers.

PRODUCT PARAMENTERS
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss

No-load current
lmpedance


HV
Tapping range
LV

Dy
Yy


30









Yyn0 / Dyn11








10
6.3
6








±5%

±2X2.5%










0.4
80
630
600
1.5
4.0
50




100
910
870
1.3

63




110
1090
1040
1.2

80




130
1310
1250
1.2

100




150
1580
1500
1.1

125




170
1890
1800
1.1

160




200
2310
2200
1.0

200




240
2730
2600
1.0

250




290
3200
3050
0.9

315




340
3830
3650
0.9

400




410
4520
4300
0.8

500




480
5410
5150
0.8

630




570
6200
6200
0.6
4.5
800




700
7500
7500
0.6

1000




830
10300
10300
0.6

1250




970
12000
12000
0.5

1600




1170
14500
14500
0.5

2000




1360
18300
18300
0.4
5.0
2500




1600
21200
21200
0.4




Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.
We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !!!

WHY CHOOSE US?

● Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
● 100000m² factory, 250 workers, 30 +engineers .
● 4 production line, 10000+ sets annual production capacity.
● 100% OQC testing with 25 detection contents.
● 15 years power transformer designing and production experience.
● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.
● Cross-industry power transformer solution.
● Global on-site technical support.
