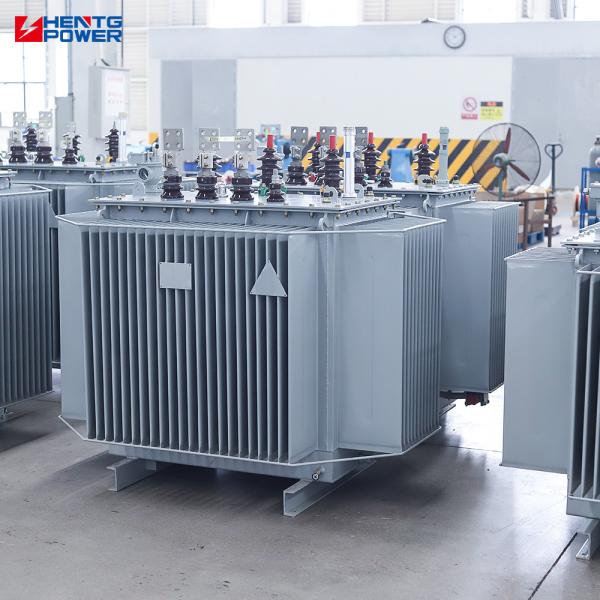

10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
S13
Certification :
CE
Price :
CN¥61,730.71-118,254.87/pieces
Type :
distribution transformer, Oil-filled Transformer
application :
Power
Input Voltage :
15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage :
415V, 127V, 11kV, 12V , 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Product name :
Three Phase Transformer
Application :
Power Distribution System
Feature :
Long Service Life
Usage :
Power Electronic
Product type :
Tranformer
Impedence :
4%-6% or Customized
Capacity Range :
<31500kVA
Tapping Range :
±8x1.25%
Another Namer :
Electric Oil immersed Transformer
Product Type :
Three Phase Transformer
Use :
Power
Noise Level :
≤ 65dB
High Voltage :
6/6.3/10/10.5/11KV
Rate Capacity :
30-2500kVA
Color :
Gray
MOQ :
2 sets
Description
10kv Voltage Transformer Price 800kva 1000kva 1250kva 2000kva Copper Distribution Transformer 3 Phase Transformer

Designed for low loss, high efficiency, and excellent cooling performance, our transformers are widely used in power grids, industrial zones, and renewable energy projects. Custom designs are available, fully compliant with IEC, ANSI, and other international standards.

✅ Flexible installation for various project requirements
✅ Environmentally friendly – supports carbon neutrality goals
✅ International certifications ensure smooth overseas compliance

10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids
10kv Voltage Copper Distribution Transformer Oil Immersed 800kva-2000kva For Power Grids


The advantages of Type S13 oil-immersed distribution transformer

The Type S13 oil-immersed distribution transformer widely used in power distribution networks. Compared to S9 or S11, the S13 offers several improvements. Here are the key advantages :
1. Higher Energy Efficiency
Lower no-load loss: The S13 series uses high-quality silicon steel sheets and optimized magnetic circuit designs, reducing no-load losses by 20–30% compared to S11 models. Lower load loss: Improved winding structure and materials reduce resistance and load losses, improving overall efficiency.
2. Reduced Noise Levels
Use of high-permeability silicon steel and precision manufacturing lowers magnetostriction, resulting in quieter operation.
3. Environmentally Friendly Options
Some S13 models use fully sealed tank designs, reducing the risk of oil leakage and eliminating the need for oil conservators. Reduces environmental impact and maintenance requirements.
4. Low Maintenance
Fully sealed versions do not require frequent oil checks or topping up. Strong anti-corrosion tank coating extends service life, especially in humid or coastal regions.
5. Longer Service Life
Better materials and structural improvements lead to extended service life, often reaching 20–30 years under proper conditions. Widely used in residential areas, commercial centers, industrial parks, and rural electrification projects.

PRODUCT PARAMENTERS
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss

No-load current
lmpedance


HV
Tapping range
LV

Dy
Yy


30









Yyn0 / Dyn11








10
6.3
6








±5%

±2X2.5%










0.4
80
630
600
1.5
4.0
50




100
910
870
1.3

63




110
1090
1040
1.2

80




130
1310
1250
1.2

100




150
1580
1500
1.1

125




170
1890
1800
1.1

160




200
2310
2200
1.0

200




240
2730
2600
1.0

250




290
3200
3050
0.9

315




340
3830
3650
0.9

400




410
4520
4300
0.8

500




480
5410
5150
0.8

630




570
6200
6200
0.6
4.5
800




700
7500
7500
0.6

1000




830
10300
10300
0.6

1250




970
12000
12000
0.5

1600




1170
14500
14500
0.5

2000




1360
18300
18300
0.4
5.0
2500




1600
21200
21200
0.4




Application Scenarios
⚡️Power Distribution Networks
