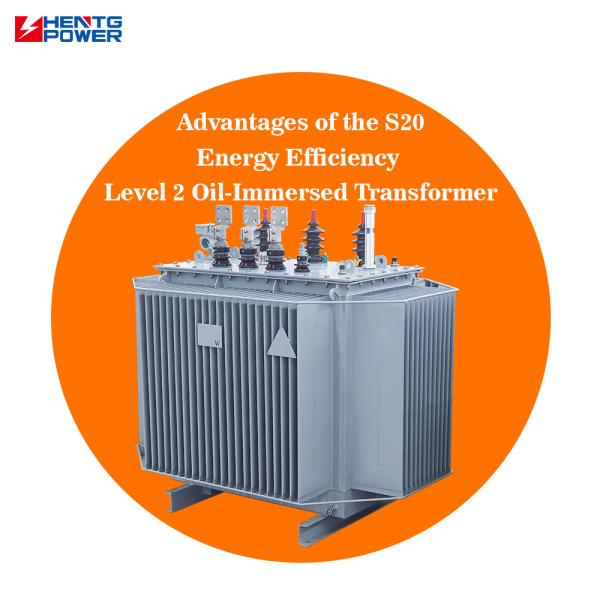

3phase Oil Immersed Transformer 315Kva Step Up Down Medium Voltage IEC60076 Standard
3phase Oil Immersed Transformer 315Kva Step Up Down Medium Voltage IEC60076 Standard
3phase Oil Immersed Transformer 315Kva Step Up Down Medium Voltage IEC60076 Standard
3phase Oil Immersed Transformer 315Kva Step Up Down Medium Voltage IEC60076 Standard
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
S13
Certification :
CE
MOQ :
2 sets
Price :
CN¥29,636.73-60,156.64/units
Type :
distribution transformer, Oil-filled Transformer
Material :
Aluminum, Copper, Copper Winding
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
High Frequency
Coil Structure :
Circular coil
Coil Number :
Dual-winding coil
Input Voltage :
10kV, 6kV, 6.3KV
Output Voltage :
0.4KV
Product name :
Three Phase Transformer
Application :
Power Distribution System
Cooling Method :
ONAF
Vector Group :
Yyn0/Dyn11
Color :
White
Standard :
IEC60076
Transformer type :
S13 Oil-immersed Transformer
Use :
Power
Materials :
aluminum/copper
Protection Level :
IP00
Rated Capacity :
30-10000kva
Number Of Phases :
Three Phases
Rated Hv Voltage :
10kv
Description
3 phase Oil Immersed Transformer 315Kva Step up Down Transformer Medium Voltage Instrument 800 Kva Transformer

Cooling Options & Installation Flexibility
Supports ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced) cooling options.
Adaptable to indoor/outdoor, pad-mounted, or pole-mounted installations.
Increases project flexibility and reduces additional costs due to environmental constraints.

Why Choose Us?
✔ In-house R&D & Manufacturing, Quality Assured
✔ Fast Delivery & Quick Response
✔ OEM / ODM Customization Available
✔ Comprehensive After-Sales Support
✔ Rich Export Experience Worldwide

3phase Oil Immersed Transformer 315Kva Step Up Down Medium Voltage IEC60076 Standard
3phase Oil Immersed Transformer 315Kva Step Up Down Medium Voltage IEC60076 Standard
Type S13 oil-immersed distribution transformer is based on the original S11 distribution transformer, through the research and application of new materials and new technologies and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to reduce the no-load loss and noise purposes. Self-developed products.
Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.
Ideal distribution equipment for urban and rural distribution network centers.

Advantages of Type S13 oil-immersed distribution transformer
Customization & Fast Delivery
Feature: Customizable voltage, tap range, enclosure color, protection grade (IP54/IP65), etc.
Factory-direct manufacturing with high efficiency and stock availability; delivery within 15–20 days for standard orders.
Meet urgent project timelines, reduce lead time, and strengthen supply chain control.

PRODUCT PARAMENTERS
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss

No-load current
lmpedance


HV
Tapping range
LV

Dy
Yy


30









Yyn0 / Dyn11








10
6.3
6








±5%

±2X2.5%










0.4
80
630
600
1.5
4.0
50




100
910
870
1.3

63




110
1090
1040
1.2

80




130
1310
1250
1.2

100




150
1580
1500
1.1

125




170
1890
1800
1.1

160




200
2310
2200
1.0

200




240
2730
2600
1.0

250




290
3200
3050
0.9

315




340
3830
3650
0.9

400




410
4520
4300
0.8

500




480
5410
5150
0.8

630




570
6200
6200
0.6
4.5
800




700
7500
7500
0.6

1000




830
10300
10300
0.6

1250




970
12000
12000
0.5

1600




1170
14500
14500
0.5

2000




1360
18300
18300
0.4
5.0
2500




1600
21200
21200
0.4




Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.
We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2: After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3: We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.
