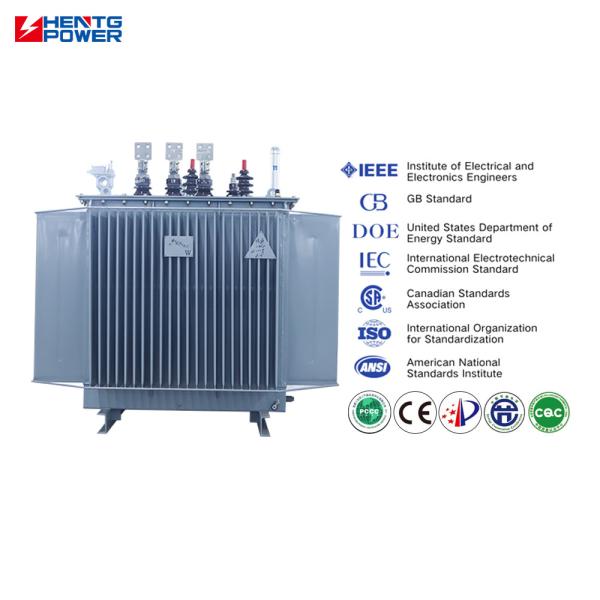

1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
S13
MOQ :
2 sets
Price :
CN¥8300-8600/units
Certification :
CE
Type :
distribution transformer, Oil-filled Transformer
Material :
Copper, Copper Winding
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Power
Phase :
Three
Coil Structure :
Circular coil
Coil Number :
Dual-winding coil
Input Voltage :
10kV, 6kV
Output Voltage :
0.4KV
Color :
White
Name :
High Fequency Transformer
Core material :
100% Cooper
Cooling Method :
ONAN
Vector Group :
Yyn0/Dyn11
Product type :
S13 Oil Transformer
Quality :
100% Tested
Feature :
High Security
Rated Capacity :
30-10000kva
Insulation Class :
Class A
Voltage Range :
Hv 110+-8X1.25%
Cooling :
ONAN/ONAF or Customized
Reference Standards :
IEC 60076
Voltage :
400V
Use :
power
Product Type :
Power Transformer
Power Capacity :
2500kVA
Other Name :
Multiple Winding Transformer
Description
1500kVA Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva
Product Specifications
Attribute Value
Type distribution transformer, Oil-filled Transformer
Material Copper, Copper Winding
Frequency 50Hz, 60Hz
Shape Rectangle
Winding Material Copper
Application Power
Phase Three
Coil Structure Circular coil
Coil Number Dual-winding coil
Input Voltage 10kV, 6kV
Output Voltage 0.4KV
Cooling Method ONAN
Vector Group Yyn0/Dyn11
Product Type S13 Oil Transformer
Rated Capacity 30-10000kva
Reference Standards IEC 60076
Power Capacity 2500kVA
Product Overview

The 1500kVA Three Phase Electronic Transformer features copper coil construction in an oil-filled distribution transformer design with capacity up to 1600kVA.

Key Features
  • Wide Capacity Range: Available in 30KVA to 2500KVA capacity with customization support
  • Global Standards Compliance: Certified by ISO9001, ISO14001, CE, etc.
  • Advanced Design: S13 oil-immersed distribution transformer with optimized core and coil structure
  • Reduced Noise: 20% quieter than standard JB/T10088-2004 requirements
1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva 1500kva Three Phase Electrical Transformer Copper Coil Oil Filled Transformer 1600 Kva

Type S13 oil-immersed distribution transformer is based on the original S11 distribution transformer, through the research and application of new materials and new technologies and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to reduce the no-load loss and noise purposes. Self-developed products.

Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.

Ideal distribution equipment for urban and rural distribution network centers.

Technical Parameters
Rated capacity (KVA) Vector Group Voltage Combination No-load loss Load loss No-load current Impedance
HV Tapping range LV
30 Yyn0 / Dyn11 10 6.3 6 ±5% ±2X2.5% 0.4 80 630 1.5 4.0
50 100 910 1.3
63 110 1090 1.2
80 130 1310 1.2
100 150 1580 1.1
125 170 1890 1.1
160 200 2310 1.0
200 240 2730 1.0
250 290 3200 0.9
315 340 3830 0.9
400 410 4520 0.8
500 480 5410 0.8
630 570 6200 0.6 4.5
800 700 7500 0.6
1000 830 10300 0.6
1250 970 12000 0.5
1600 1170 14500 0.5
2000 1360 18300 0.4 5.0
2500 1600 21200 0.4
Our Service Process
Step 1: Consultation & Quotation

We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide reasonable quotations and payment terms. Our professional drawing and technical teams will confirm all contents on the drawing with you within 7 days after payment.

Step 2: Production & Quality Assurance

After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections before shipment. We provide QC reports and test reports for all products, ensuring strict quality control from raw material selection to final inspection.

Step 3: Installation & Support

We provide professional installation guidance and on-site support, along with more than 2 years warranty service. Our team is committed to creating win-win partnerships with all clients.

Click here to discuss your requirements with our experts

Application Scenarios

⚡️ Power Distribution Networks
