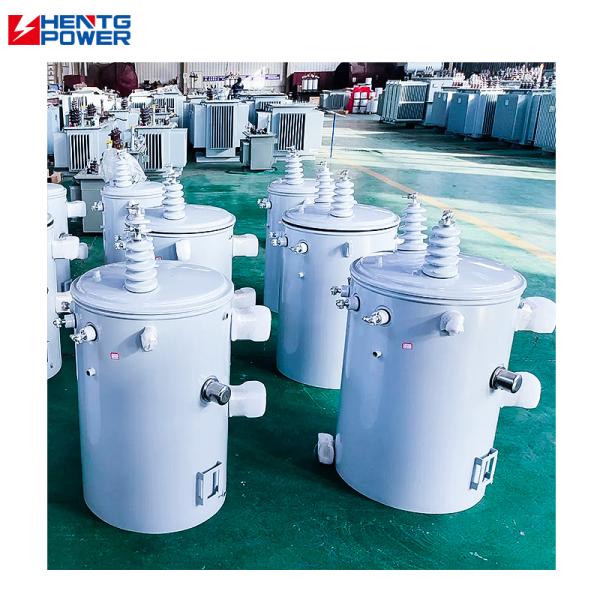

Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥12,108.25-45,584/units
Certification :
CE
Frequency :
50Hz, 60Hz
Phase :
Single Phase
Coil Number :
Two Windings, Three Windings, Multi Winding
application :
distribution system
Coil Structure :
round coil, Shell-Type Coil, layer coil, Disc Coil
Output Voltage :
480V, 440V, 400V , 380V
Input Voltage :
3kV, 6kV, 6.6kV, 6.3kV, 10kV, 35kV
Type :
AUTOTRANSFORMER, distribution transformer
Winding Material :
Copper \ Aluminum
Product name :
Single Phase Pole Mounted Transformer
Tapping Range :
2X2.5%
Efficiency :
>98.80%
Advantages :
Reducing the length of low-voltage distribution line losses
Customized :
Accept
Capacity/KVA :
15kva - 333kva
Structure :
Fully sealed structure
Operating Temperature :
-25℃ to 40℃
Impedance :
4%
Rated Voltage :
11kV
Core Material :
Silicon Steel
Protection Level :
IP23
Rated Power :
5kVA
Insulation Level :
Class A
MOQ :
2 sets
Description
HENTG POWER 15KVA 37.5KVA 50KVA 100KVA 167KVA Step Down Dual Voltage Single Phase Pole Mounted Transformer

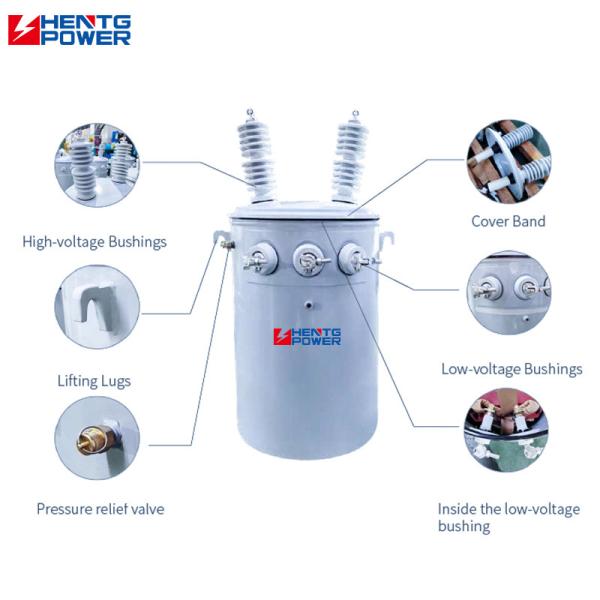

Electromagnetic System: Silicon Steel Laminated Core, Copper/Aluminum Winding (H-Class Insulation)

Protection System: IP55 Protection Grade Oil Tank, with Pressure Relief Valve and Oil Level Gauge
2. Electrical Parameters
| Item | Typical Value |
|-------------|---------------------|
| Rated Capacity | 10kVA/25kVA/50kVA |
| No-load Loss | ≤45W (25kVA Example) |
| Impedance Voltage | 4%±10% |
3. Special Design

Fully Sealed Structure for Anti-Oxidation

Axial Heat Sink for Enhanced Convection


Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Single-phase pole transformer










Rated capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
Dimension (mm)


Efficiency






W
D
H

15


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500






±2*
2.5%


110
120
208
240
277
347
415
416
480
600
690


60

80

100

120

130

150


330

370

450

620

850

1150


520

560

610

635

754

770

795


565

590

625

975

840

965

890


905

935

935

1035

1035

1135

1135
98.8
25








99.0
37.5








99.1
50








99.1
75








99.2
100








99.3
167








99.3
250








99.4
333








99.4
500








99.5

Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA


Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA
Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVAThis 5kVA single-phase pole transformer is designed for users with limited space. Despite its small size, it has powerful performance and can meet daily electricity needs. It is an ideal choice for both home and small commercial places.

This 5kVA single-phase pole transformer is designed for users with limited space. Despite its small size, it has powerful performance and can meet daily electricity needs. It is an ideal choice for both home and small commercial places.

One-stop delivery of GIS/switchgear/substation
✓ International endorsement: 100% compliant with 5 major standards such as ANSI/IEEE/DOE
✓ Long-term service: more than 2 years of warranty coverage

Choose our unique value:
✨ Extremely fast technical response:

Professional design team → Lock drawing details within 7 days

30+ senior engineers → 24 hours online, 30 minutes emergency response
