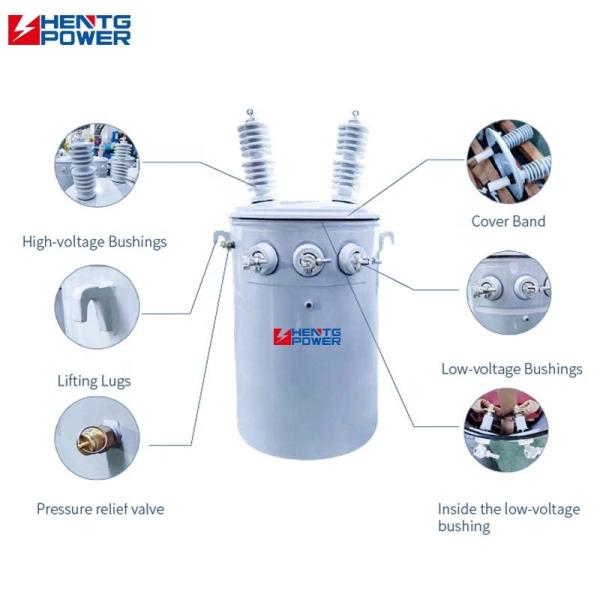

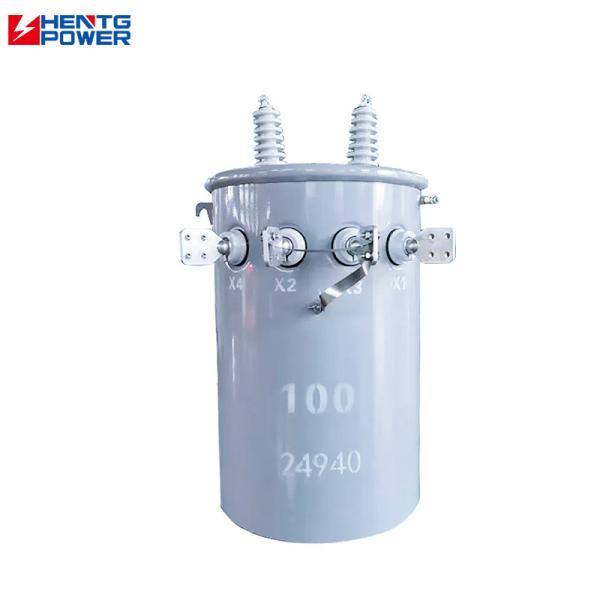

Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥17,086.88-44,629.59/sets
Certification :
CE
Frequency :
50Hz, 60Hz
Phase :
Single Phase
application :
distribution system
Coil Structure :
Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil
Output Voltage :
110V, 220V, 380V, 400V , 440V, 480V
Input Voltage :
10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Type :
Oil-Immersed Transformer
Rated capacity :
15KVA-500KVA
Low Voltage :
110 LV - 690 LV
Rated voltage :
37.5kVA-333K
Vector Group :
Dyn1/Yyn0
Secondary Voltage :
0.4 kV
Efficiency :
≥ 98%
Protection Class :
IP23
Overload Capacity :
1.2 times rated power for 1 hour
Mounting Type :
Pole Mounted
Operating Temperature :
-25°C to 40°C
Cooling Method :
ONAN
Winding Material :
Copper
Insulation Class :
Class A
Primary Voltage :
11 kV
Rated Power :
5 kVA
Short Circuit Impedance :
4%
MOQ :
2 sets
Description
HETG Power Copper Transformer 167 kVA Single-Phase Oil-immersed Transformer Price Electric Transformer 37.5 kVA 333 kVA

Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23

Pole-Type Transformer Usage Guidelines
▶ Installation Warning
① Safety Distance:

≥3m from Buildings

≥4.5m above Ground (Road)
② Grounding Requirements:

Independent Grounding Electrode Resistance <10Ω

Grounding Wire Cross-Sectional Area ≥25mm²

▶ Troubleshooting list

Phenomenon Possible cause Emergency measures
Abnormal humming Loose core Tighten bolts during power outage
Oil temperature > 85℃ Overload/poor heat dissipation Forced air cooling + load reduction
Bushing flashover Dirt accumulation Live cleaning (certification required)Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23

Single-phase pole transformer










Rated capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
Dimension (mm)


Efficiency






W
D
H

15


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500






±2*
2.5%


110
120
208
240
277
347
415
416
480
600
690


60

80

100

120

130

150


330

370

450

620

850

1150


520

560

610

635

754

770

795


565

590

625

975

840

965

890


905

935

935

1035

1035

1135

1135
98.8
25








99.0
37.5








99.1
50








99.1
75








99.2
100








99.3
167








99.3
250








99.4
333








99.4
500








99.5

Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23

Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23

Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23

Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23
Copper Winding Single Phase Pole Mounted Transformer Oil Immersed 167 KVA IP23

HENTG POWER ─ Global Power System Solutions
Founded in 2011 | 100,000㎡ production base | One-stop service for design, manufacturing and installation

▌Quality Commitment

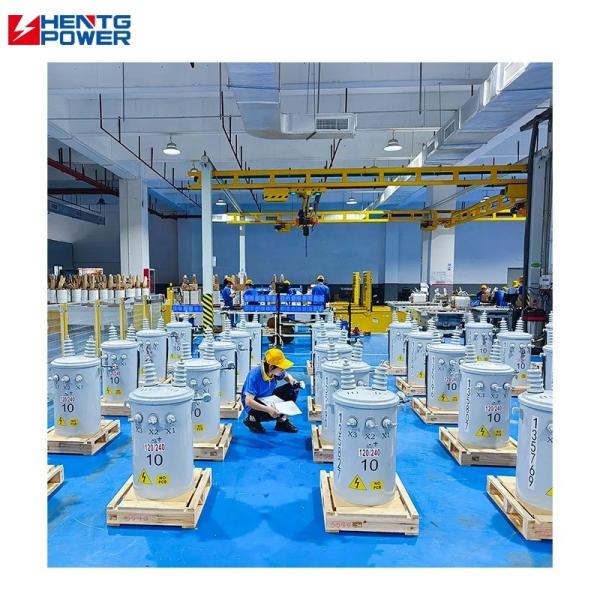

Double quality inspection: pre-production sample verification + final inspection before shipment (with QC/test report)

International standards: in compliance with ANSI/IEEE/DOE2016/CSA/IEC60076
Service guarantee: FAT factory acceptance test + ≥2-year warranty

▌Core advantages

Technical response: independent design team completes drawing confirmation within 7 days

Expert support: 30+ senior engineer team, 24h online (30-minute response)

▌Customized cooperation
✓ OEM ✓ Flexible payment ✓ Global project installation
