Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
S11
MOQ :
2 sets
Price :
CN¥48,433/sets 2-999 sets
Certification :
CE
Frequency :
60Hz
Phase :
Single Phase
application :
power transformer
Output Voltage :
110V, 220V, 380V, 400V , 440V, 480V
Input Voltage :
11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV
Product name :
3 phase pad mounted transformer
Type :
Pad Mounted Transformer
Standard :
DOE/IEC60076/IEEE
Warranty :
2 Years
Vector Group :
Dyn11/Yyn0/Yd11/YNd11
Usage :
Outdoor Power Line Operation
High Voltage :
11kv 10kv 6.3kv 6kv 14.4KV 25KV 34.5KV
Low Voltage :
120-240/240-480/347/600
Cooling Method :
ONAN (Oil Natural Air Natural)
Enclosure Rating :
NEMA 3R
Efficienc :
99.00%
Rated Voltage :
5 kV to 34.5 kV
Application :
Solar
Secondary Voltage :
480Y/277
Rated Power :
15 kVA to 500 kVA
Rated Capacity :
3000Kva
Impedance Voltage :
5.8%
Protection Rating :
IP55
Insulation Class :
Class 1
Description
MV HV Transformers 1000kVA 1500KVA 2000KVA 2500KVA Three Phase Pad Mounted Transformer
PRODUCT PARAMENTERS
Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection
THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







Metal Enclosure MV HV Three Phase Pad Mounted Transformer 75KVA-2500KVA IP55 Protection

Feature:​
The 1000kVA three-phase pad-mounted transformer is manufactured by a professional manufacturer with over 30 years of experience in transformer production. It strictly follows international standards such as ANSI, CSA, DOE, NEMA, and IEEE, and has passed UL, CUL, and CSA certifications, with excellent quality. Usually, it adopts a sealed metal enclosure, and the material can be iron or aluminum alloy (customizable), effectively resisting the erosion of rain, dust, and corrosive substances on the internal electrical components. It is designed to be directly installed on the ground or a concrete base, suitable for outdoor or limited-space locations. Compared with traditional box transformers, it is more lightweight and compact, facilitating transportation, installation, and maintenance. Each transformer can be customized according to the specific requirements of the project, and detailed transformer drawings are provided to display the unique functions and specifications customized to meet users' needs.​
Advantage:​
Rich production experience and strict compliance with international standards ensure the high quality and reliability of the product, and users don't need to worry about quality issues. The sealed metal enclosure has good protection performance, extends the service life of the transformer, and reduces the frequency and cost of equipment maintenance. The installation design suitable for outdoor and limited-space locations makes its application scenarios wide. Whether it is a power distribution facility next to a city street or a power supply point in a remote mountainous area, it can be applied. The lightweight and compact design reduces the difficulty of transportation and installation, saving labor and material costs. The customized service precisely meets users' personalized needs and creates the most suitable transformer solutions for different projects.​
Benefit:​
Users can purchase a transformer product with strict quality control and excellent performance, which can be used stably for a long time, reducing production interruptions and economic losses caused by equipment failures. Good protection performance and long service life reduce users' long-term investment in equipment procurement and maintenance, and increase the return on investment.
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type
distributiontransformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?

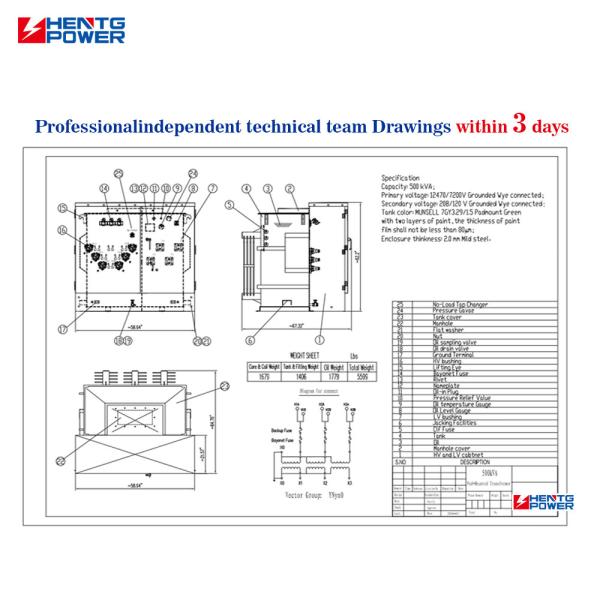

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
