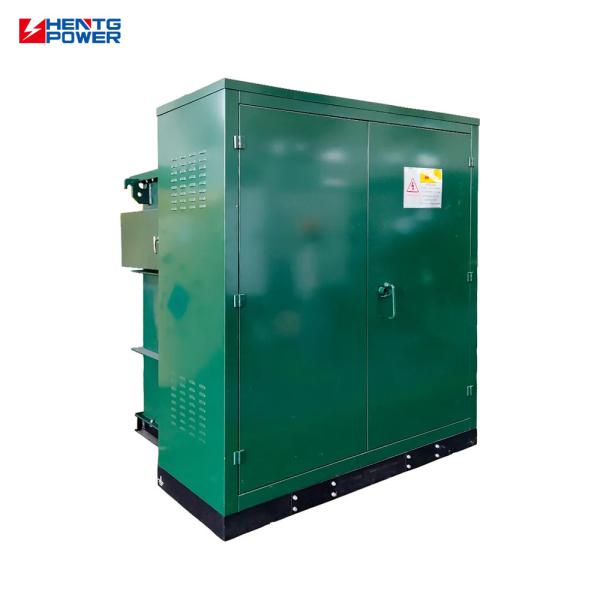

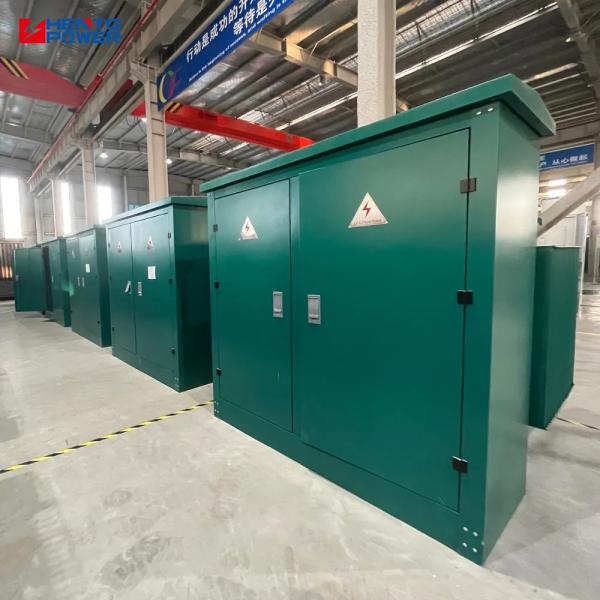

Three Phase Oil Filled Pad Mounted Transformer 1000kva Iron Core Customizable
Three Phase Oil Filled Pad Mounted Transformer 1000kva Iron Core Customizable
Three Phase Oil Filled Pad Mounted Transformer 1000kva Iron Core Customizable
Three Phase Oil Filled Pad Mounted Transformer 1000kva Iron Core Customizable
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥63,881.71-194,558.21/sets
Certification :
CE
Type :
distribution transformer, Oil-filled Transformer
Material :
Aluminum, Copper, Copper Winding
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Power
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Input Voltage :
180V, 115V, 6kV, 3kV, 10kV
Output Voltage :
400V , 208V, 200V, 415V, 127V
Product name :
Three Phase Transformer
Application :
Power Distribution System
Rated capacity :
75-3750kva
Warranty :
3 Years
Insulation Class :
Class A
Core Material :
Grain Oriented Steel
Vector Group :
DYN1 or Customized
Phase :
Three
MOQ :
2 sets
Description
Hot Sale 1000kva Three Phase Pad Mounted Transformer Oil immersed Transformer Price Iron Core
PRODUCT PARAMENTERS
Three Phase Oil Filled Pad Mounted Transformer 1000kva Iron Core Customizable
THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







Three Phase Oil Filled Pad Mounted Transformer 1000kva Iron Core Customizable

Feature:​
This 1000kVA three-phase pad-mounted transformer adopts a modular plate heat dissipation structure, with a compact layout and high heat dissipation efficiency, suitable for industrial, commercial, and new energy distribution scenarios with limited space. The rated frequency is 50Hz/60Hz, and the maximum operating voltage can reach 38.5kV. The capacity range covers 150kVA to 2500kVA (customizable), meeting the power demand of different scales. It complies with international standards such as ANSI C57 and IEC 60076, as well as domestic standards such as GB 1094 and GB 17467 - 2010, with strict product quality assurance. In the field of industrial power distribution, it can be used in factories, mining equipment, port machinery, etc. In terms of commercial buildings, it is suitable for shopping malls, office buildings, hospitals (substations with limited space), etc. It can also play a role in renewable energy systems, such as PV power station compact substations, energy storage systems, etc. It can also be used for temporary power supply scenarios such as construction sites and exhibition centers.
Advantage:​
The compact volume facilitates transportation and installation, solving the problem of insufficient installation space. The fully sealed and fully insulated structure improves safety, reduces maintenance costs, and reduces the impact of the external environment on the internal components of the equipment. The diverse power supply schemes enhance the reliability of power supply. When some power supply lines fail, it can quickly switch to the backup power supply to ensure uninterrupted power supply. The excellent characteristics of the S11 transformer make it more energy-efficient during operation, reducing energy consumption and saving electricity bills for users. The double-fuse protection and reliable cable connector design ensure the safe and stable operation of the equipment under complex working conditions. The unique winding and core structure design improves the stability and reliability of power supply and reduces the damage to electrical equipment caused by voltage fluctuations. The beautiful cabinet design can beautify the surrounding environment while meeting the power function requirements.​
Benefit:
For users, the high efficiency means lower energy consumption. Long-term use can significantly reduce electricity bills and save operating costs. The high stability reduces the damage to electrical equipment caused by voltage fluctuations, extends the service life of equipment, and reduces the frequency of maintenance and replacement, further saving funds. The flexible customization service eliminates users' concerns about the incompatibility of the transformer with the existing system, allowing them to quickly build a stable and reliable power supply system, improve production efficiency, and provide strong support for the development of enterprises. Whether it is commercial operation, industrial production, or community electricity consumption, users can enjoy stable, efficient, and safe power supply.
