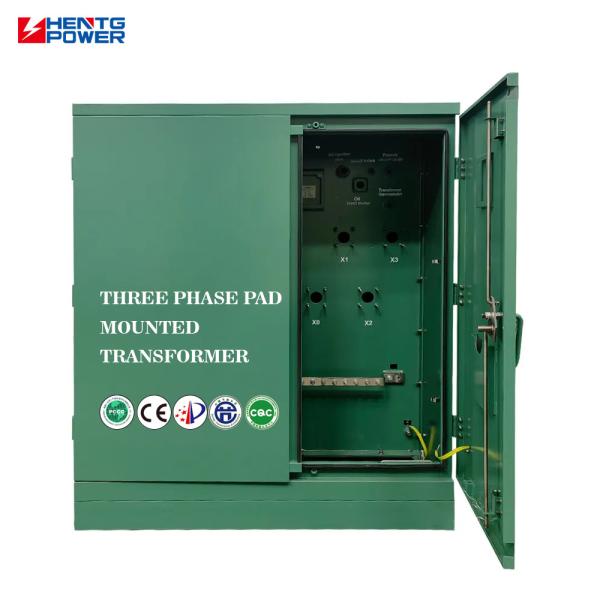

Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥63,888.83-216,524/sets
Certification :
CE
Type :
distribution transformer, Oil-filled Transformer
Material :
Aluminum, Copper, Copper Winding
Frequency :
50Hz, 60Hz
Shape :
Rectangle
application :
Power
Phase :
Three
Coil Structure :
TOROIDAL
Coil Number :
Dual-winding coil
Input Voltage :
380V, 180V, 115V, 3kV, 6kV, 10kV
Output Voltage :
5V, 400V , 208V, 200V, 415V
Product name :
Three Phase Transformer
Application :
Power Distribution System
MOQ :
2 sets
Description
Three Phase Pad Mounted Transformer 1500kVA Electrical Transformers Price
PRODUCT PARAMENTERS
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Feature:​

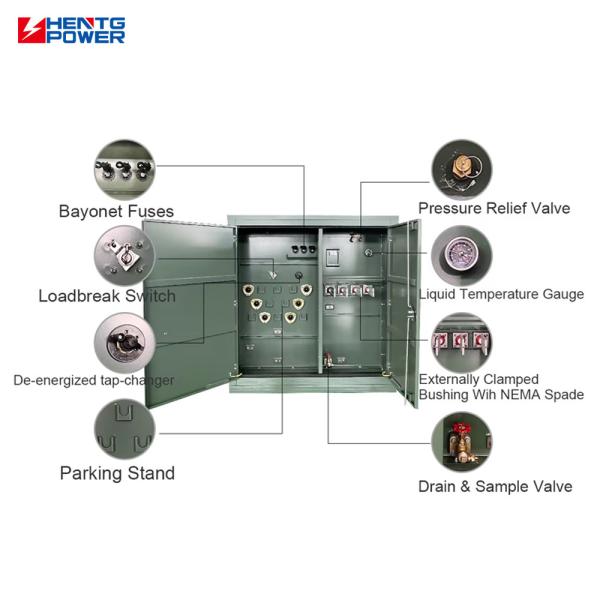

This 1500kVA three-phase pad-mounted transformer has a compact and reasonable structure, and its volume is reduced by about one-third compared with the European-style box transformer of the same capacity, effectively saving installation space and being especially suitable for places with limited space. It adopts a fully sealed and fully insulated structure, eliminating the need for setting up safety fences and providing reliable protection for personnel safety. It is equipped with a variety of power supply schemes, supports terminal power supply, and can realize ring network or dual power supply, with flexible and diverse power supply methods. It uses an S11 oil-immersed power transformer, which has the characteristics of low loss, low temperature rise, and strong overload capacity. It adopts a double-fuse protection mechanism, that is, a combination of a backup protection fuse and a plug-in fuse. The plug-in fuse has current and temperature dual sensitivity, greatly ensuring the safe and reliable operation of the product. The 200A cable connector can be plugged and unplugged under load, can be operated as a load switch in an emergency, and has the characteristics of an isolating switch. The winding adopts Dyn11 connection, and the core adopts a three-phase four-column structure, enabling the product to operate stably under any asymmetric load. The neutral point does not drift, the voltage is stable, and the power supply quality is high. The cabinet has undergone anti-corrosion design and special spray paint treatment, which is beautiful and novel and can integrate with various environments to achieve the effect of beautifying the city.​
Advantage:​
The compact volume design facilitates transportation and installation, reducing the troubles caused by insufficient installation space. The fully sealed and fully insulated structure not only improves safety but also reduces equipment maintenance costs and reduces the impact of the external environment on the internal components of the equipment. The diverse power supply schemes enhance the reliability of power supply. When some power supply lines fail, it can quickly switch to the backup power supply to ensure uninterrupted power supply. The excellent characteristics of the S11 transformer make it more energy-efficient during operation, reducing energy consumption and saving electricity bills for users. The double-fuse protection and reliable cable connector design ensure the safe and stable operation of the equipment under various complex working conditions. The unique winding and core structure design effectively improves the stability and reliability of power supply and reduces the damage to electrical equipment caused by voltage fluctuations. The beautiful cabinet design enables it to add beauty to the surrounding environment while meeting the power function requirements.​
Benefit:​
Users don't need to worry about finding a large installation site during the installation process and can quickly and conveniently complete equipment installation. The safe and reliable operation performance ensures personnel safety and the normal operation of equipment, reduces power outages caused by equipment failures, and reduces economic losses in production and life. The energy-saving feature greatly reduces long-term operating costs and creates actual economic benefits for users. The stable power supply can ensure the efficient operation of various electrical equipment, extend the service life of equipment, and improve production efficiency. For urban construction and areas with high landscape requirements, its beautiful cabinet design can well integrate into the environment and avoid damaging the overall environment due to equipment appearance problems.
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type
distributiontransformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
