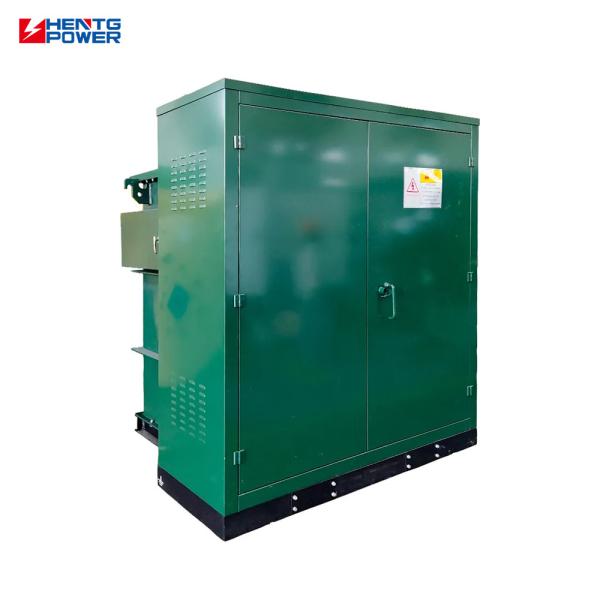

2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥46,296.25-78,347.50/sets
Certification :
CE
Frequency :
50Hz, 60Hz
Phase :
Three
Coil Number :
Multi Winding, Three Windings
application :
distribution system
Coil Structure :
round coil, Shell-Type Coil, layer coil, fully sealed construction, Disc Coil
Output Voltage :
415V, 110V, 220V, 380V, 400V , 440V
Input Voltage :
11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV
Type :
Oil-Immersed Transformer, Dual Winding Transformer, Loop Feed/Radial Feed
Efficiency :
>99%
Name :
Three Phase Pad Mounted Transformer
Customized :
Accept
Capacity :
50 KVA - 2000 KVA
Warranty :
36 month
Transformer Type :
Pad Mounted
Sound Level :
65dBA
Rated Capacity :
225 KVA
Application :
Solar
Vector Group :
DYN1
Feed Type :
Radial Feed
Insulation Class :
Varies depending on model
Enclosure Material :
Steel
Operating Temperature :
Varies depending on model
Impedance :
5.0%
Mounting Type :
Pad
MOQ :
2 sets
Description


2000 KVA Box Type Package Power Distribution Compact Electrical Substation Pad Mounted Transformer
PRODUCT PARAMENTERS
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer

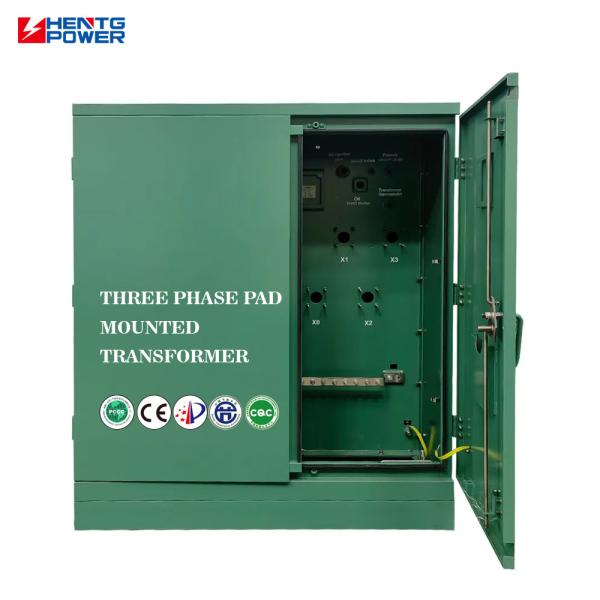

THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer


Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are
strictlyscreened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to
escort yourproducts.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, welcome to click here for discussion !!!
COMPANY PROFILE
2000 KVA Box Type Package Transformer Electrical Substation Pad Mounted Transformer

Feature:​
This 2000kVA three-phase pad-mounted transformer adopts a fully sealed oil-immersed design and complies with international standards such as IEC, ANSI, and GB. The core is made of cold-rolled silicon steel sheets, manufactured by advanced technology, with high magnetic permeability and low hysteresis loss. The winding uses high-quality aluminum material, which has a high resistivity and effectively reduces eddy current losses. It has a primary voltage of three-phase 10 - 35kV (customizable) and multiple secondary voltage options such as three-phase 208V, 400V, 415V, 480V, 600V, etc., to meet the needs of different application scenarios. The cooling method can be selected as ONAN (oil-immersed self-cooling) or ONAF (forced air cooling) to adapt to different load conditions and improve heat dissipation efficiency. The insulation class can be selected as A, F, or H to adapt to different temperature environments and enhance equipment durability. The protection class can be selected as IP44, IP54, or IP55 to ensure safe operation in harsh environments such as humidity, dust, and salt spray.​
Advantage:​
The fully sealed structure effectively prevents impurities such as dust and moisture from entering, extends the service life of the transformer, and reduces maintenance work. The low-loss design reduces energy consumption and saves operating costs. A variety of optional configurations enhance the adaptability of the transformer to different power grid environments and application scenarios. The sturdy and durable enclosure can withstand harsh weather and a certain degree of external impact, ensuring the stable operation of the equipment.​
Benefit:​
Users can obtain efficient and stable power conversion to ensure the normal operation of various electrical equipment. The energy-saving feature helps users reduce electricity bills and can save a large amount of costs in the long run. The reliable quality and long service life reduce the time and economic losses caused by equipment replacement and maintenance. Whether in industrial parks, commercial complexes, or residential quarters, its stable performance can ensure the reliability and stability of power supply and improve the overall operation efficiency.
FAQs
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type
distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide?
Accept OEM, business payment are negotiated.
