225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS
MOQ :
2 sets
Price :
CN¥50,648.10-64,173.73/units
Certification :
CE
Type :
distribution transformer, Oil-type
Material :
Copper, 100% Copper Wire
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Power
Coil Structure :
Wound Coil
Input Voltage :
3kV, 6kV, 10kV, 15kV
Output Voltage :
11kV, 110V, 220V, 380V, 440V, 480V, 415V, 400V
Product name :
Power Distribution Transformer
Rated capacity :
75KVA-3750KVA
Cooling Method :
ONAN ONAF OFAF
Core material :
100% Cooper
Feature :
High Efficiency
Efficiency :
Up to 99%
Ul Certificate Numbers :
UL-US-2431836-0, UL-CA-2423202-0
Operation :
Step-Up Operation
Primary Voltage :
Up to 34.5 kV
Efficienc :
99.00%
Rated Capacity :
100VA-5000KVA
Mounting Type :
Pad
Description
225 Kva Distribution Step Down Transformer 3 Phase Transformer Core Oil Filled Type Transformer
PRODUCT PARAMENTERS
225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type

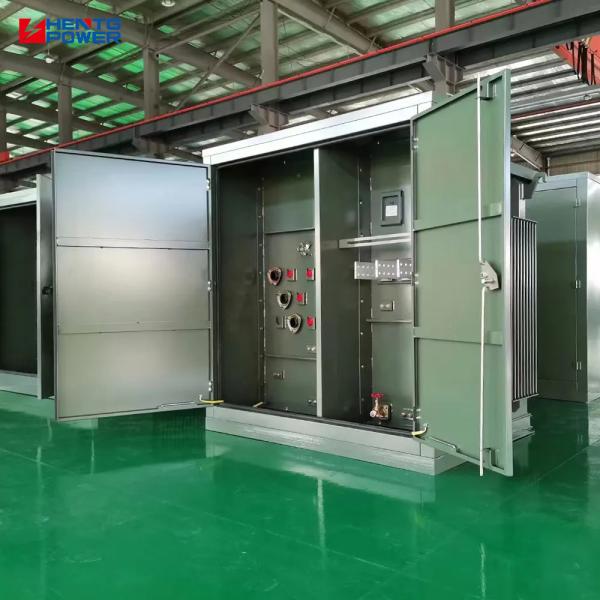

THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







225 Kva Step Down Transformer 3 Phase Distribution Transformer Core Oil Filled Type

Feature:​
This 225kVA three-phase pad-mounted transformer features stable power output, with a rated power of 225kVA, which can fully meet the medium-scale power demands of commercial centers, small factories, etc. The primary voltage is flexibly selectable, ranging from 4.16kV to 34.5kV, and can be customized to adapt to various power grid access conditions. The secondary voltage is 480V grdy/277V, which complies with the voltage standards of common electrical equipment. The operating frequency is 50/60Hz, applicable in most regions around the world. The winding offers two material options, aluminum and copper, allowing users to make flexible decisions based on cost budgets and performance requirements. The nominal value of the impedance voltage is 3.5%, and can also be customized within the range of 1.1% - 5.75% to optimize the operation in different circuits. The tank is available in two materials, mild steel and 304 stainless steel. The former is cost-effective, while the latter has outstanding corrosion resistance and is suitable for harsh environments. The total weight is 2500kg, with a solid and stable structure. It is equipped with non-PCB high-voltage warning signs to ensure operational safety. In addition, a wide range of customization options are provided to meet the diverse needs of electrical systems.​
Advantage:​
The flexible voltage customization range enables it to easily integrate into complex and variable power systems. Whether it is the upgrading of urban power grids or the construction of rural power facilities, it can be perfectly adapted. The variety of winding and tank material options takes into account performance, cost, and environmental adaptability. The stable impedance voltage design improves the operating stability of the transformer under different loads, reduces voltage fluctuations, and ensures the stable operation of electrical equipment. The robust structure and high-voltage warning signs provide double protection for the safe operation of the equipment and the safety of operators. The rich customization options meet the special needs of transformers in different industries and scenarios, enhancing the applicability of the product.​
Benefit:​
For users, the high efficiency means lower energy consumption. Long-term use can significantly reduce electricity bills and save operating costs. The high stability reduces the damage to electrical equipment caused by voltage fluctuations, extends the service life of equipment, and reduces the frequency of maintenance and replacement, further saving funds. The flexible customization service eliminates users' concerns about the incompatibility of the transformer with the existing system, allowing them to quickly build a stable and reliable power supply system, improve production efficiency, and provide strong support for the development of enterprises. Whether it is commercial operation, industrial production, or community electricity consumption, users can enjoy stable, efficient, and safe power supply.
