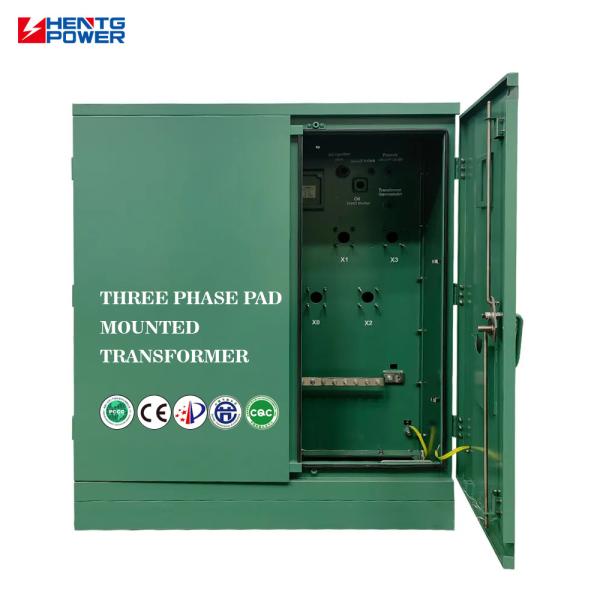

3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS
MOQ :
2 sets
Price :
CN¥39,957.23-50,648.10/units
Certification :
CE
Type :
distribution transformer, Oil-type
Material :
Copper, 100% Copper Wire
Shape :
Rectangle
Winding Material :
Copper
application :
Power
Phase :
Three
Input Voltage :
3kV, 6kV, 10kV
Output Voltage :
110V, 220V, 380V, 440V, 480V, 415V, 400V
Product name :
Power Distribution Transformer/ Three Phase Pad Mounted Transformer
Standard :
IEC ANSI IEEE
Application :
Power Distribution System
Rated capacity :
75KVA-3750KVA
Core material :
100% Cooper
Color :
Green
Ul Certificate Numbers :
UL-US-2431836-0, UL-CA-2423202-0
Transformer Type :
Pad Mounted
Tapping Range :
±2*2.5% （5taps）
Primary Voltage :
Varies depending on model
Cooling Type :
ONAN/KNAN
Insulation Fluid :
FR-3 Oil
Noise :
<50dB
Enclosure Material :
Steel
Mounting Type :
Pad
Description
Voltage Electric Transformer 225kva Iron Core Transformer 3 Phase Pad Mounted Power Transformer
PRODUCT PARAMENTERS
3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard
THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







3 Phase Pad Mounted Power Transformer 225kva Iron Core Transformer IEC ANSI IEEE Standard

Feature:​
The 225kVA three-phase pad-mounted transformer has a compact and reasonable structure, and its volume is reduced by about one-third compared with the European-style box transformer of the same capacity, greatly saving installation space and being especially suitable for places with limited space. It adopts a fully sealed and fully insulated structure, eliminating the need for setting up safety fences and effectively ensuring personnel safety. It has a variety of power supply schemes, supports terminal power supply, and can realize ring network or dual power supply, with strong power supply flexibility. It uses an S11 oil-immersed power transformer, which has the characteristics of low loss, low temperature rise, and strong overload capacity. It adopts a double-fuse protection mechanism, that is, a combination of a backup protection fuse and a plug-in fuse. The plug-in fuse has current and temperature dual sensitivity, greatly ensuring the safe and reliable operation of the product. The 200A cable connector can be plugged and unplugged under load, can be operated as a load switch in an emergency, and has the characteristics of an isolating switch. The winding adopts Dyn11 connection, and the core adopts a three-phase four-column structure, enabling it to operate stably under any asymmetric load. The neutral point does not drift, the voltage is stable, and the power supply quality is high. The cabinet has undergone anti-corrosion design and special spray paint treatment, which is beautiful and novel and can integrate with various environments.​
Advantage:​
The compact volume facilitates transportation and installation, solving the problem of insufficient installation space. The fully sealed and fully insulated structure improves safety, reduces maintenance costs, and reduces the impact of the external environment on the internal components of the equipment. The diverse power supply schemes enhance the reliability of power supply. When some power supply lines fail, it can quickly switch to the backup power supply to ensure uninterrupted power supply. The excellent characteristics of the S11 transformer make it more energy-efficient during operation, reducing energy consumption and saving electricity bills for users. The double-fuse protection and reliable cable connector design ensure the safe and stable operation of the equipment under complex working conditions. The unique winding and core structure design improves the stability and reliability of power supply and reduces the damage to electrical equipment caused by voltage fluctuations. The beautiful cabinet design can beautify the surrounding environment while meeting the power function requirements.​
Benefit:​
Users don't need to worry about finding a large installation site during installation and can quickly and conveniently complete equipment installation. The safe and reliable operation performance ensures personnel safety and the normal operation of equipment, reduces power outages caused by equipment failures, and reduces economic losses in production and life. The energy-saving feature greatly reduces long-term operating costs and creates actual economic benefits for users. The stable power supply can ensure the efficient operation of various electrical equipment, extend the service life of equipment, and improve production efficiency. For urban construction and areas with high landscape requirements, the beautiful cabinet design can integrate into the environment and avoid damaging the overall environment due to equipment appearance problems.
