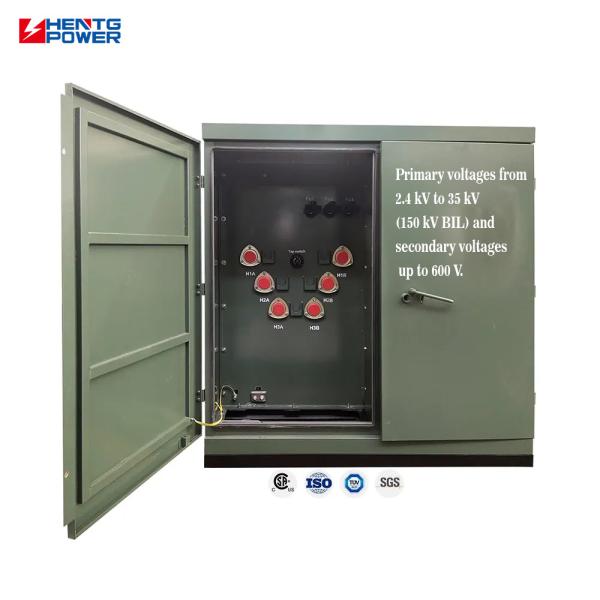

750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥63,881.71-171,296.13/sets
Certification :
CE
Frequency :
50Hz, 60Hz, 50/60Hz
Coil Number :
Two Windings
application :
distribution system
Output Voltage :
415V, 110V, 220V, 380V, 400V , 440V
Input Voltage :
10.5kV, 3kV, 12.47kV, 6.6kV, 6kV, 6.3kV
Type :
Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer, Oil-Immersed Transformer
Product name :
Three Phase Oil Immersed Transformer
Application :
Power Distribution System Power Transformer
Rated capacity :
75-750kva
Vector Group :
YnYn0
Tank Material :
304 Stainless Steel
Standard :
ANSI,IEC
Secondary Voltage :
120-480 V
Insulation Class :
Class A
Capacity :
750KVA
Feed Type :
Radial Feed
Standards :
ANSI, IEC
Cooling Class :
ONAN; Self-Cooled
Protection Rating :
IP55
MOQ :
2 sets
Description
750kVA 3 Phase Core Transformer Oil Type Voltage Electric Transformer Price
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
PRODUCT PARAMENTERS
750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating
THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







750kVA Core Type 3 Phase Transformer , Oil Type Pad Mounted Transformer IP55 Rating


Feature:​
This 750kVA three-phase pad-mounted transformer adopts a modular plate heat dissipation structure, with a compact layout and high heat dissipation efficiency, suitable for industrial, commercial, and new energy distribution scenarios with limited space. The rated frequency is 50Hz/60Hz, and the maximum operating voltage can reach 38.5kV. The capacity range covers 150kVA to 2500kVA (customizable), meeting the power demand of different scales. It complies with a number of international and national standards, such as ANSI C57 and IEC 60076 internationally, and GB 1094, GB 17467 - 2010, GB/T 14048.1, GB 4208, etc. domestically, with strict product quality assurance. In the field of industrial power distribution, it can be widely used in factories, mining equipment, port machinery, etc. In terms of commercial buildings, it is suitable for shopping malls, office buildings, hospitals (substations with limited space), etc. It can also play an important role in renewable energy systems, such as PV power station compact substations, energy storage systems, etc. It can also be used for temporary power supply scenarios such as construction sites and exhibition centers.​
Advantage:​
The modular plate heat dissipation structure not only effectively improves the heat dissipation efficiency but also greatly saves space, enabling easy installation and use in places with limited space. The wide voltage and capacity range and customization services enable it to flexibly adapt to various power projects of different scales and types. Whether it is the power upgrade of a small commercial store or the power expansion of a large industrial enterprise, it can meet the demand. Strict compliance with international and domestic standards proves the high quality and reliability of the product, allowing users to use it with confidence without worrying about product quality issues. Its wide adaptability to application scenarios makes it an ideal choice for various industries to solve power distribution problems. Whether it is a long-term stable power supply scenario or a temporary emergency power supply demand, it can handle it perfectly.​
Benefit:​
For users, the efficient heat dissipation structure ensures the stability of the transformer during long-term operation, reduces the risk of equipment failure caused by overheating, and reduces equipment maintenance costs. The flexible voltage and capacity customization service ensures that users can obtain the most suitable transformer for their needs, avoiding waste of resources and economic losses caused by equipment mismatch. The high-quality product that meets the standards provides users with reliable power guarantee, reduces the interference caused by power problems to production and life, and improves work and life efficiency. The wide adaptability to application scenarios allows users to use this transformer conveniently in different projects and scenarios without spending a lot of time and energy looking for suitable power equipment.
