HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer
Specifications
Brand Name :
HENTG POWER
Model Number :
S11-100KVA 11KV/416V
Certification :
CE/ISO9001
Place of Origin :
Jiangsu
MOQ :
1 Set
Price :
$3030
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
Producing 20,000+ transformers annually
Delivery Time :
7 days
Packaging Details :
Wooden crate packaging
Usage :
Power,Instrument,power grid system,High Frequency,Distribution Transformer
Phase :
Three phase
Coil structure :
Toroidal
Frequency :
50/60Hz
Rated capacity :
100KVA
Standard :
IEC Standards
Type :
Oil immersed current transformer
Product name :
Power distribution transformer
Material :
Copper,Alumnium
Input voltage :
11KV
Output voltage :
416V
Vector group :
Dyn11
Winding material :
Cooper/Aluminum
Advantage :
Best price & Best quality in China
Description
Product Specifications

Item

Parameter

Product Name

Step-down Oil Immersed Transformer

Model

S11-100KVA-11KV/415V

Rated Capacity

100 kVA

Rated Voltage

Primary Voltage: 11kV
Secondary Voltage:415V

maximum current density of winding conductor

2.86 A/mm²

Vector Group

Dyn11

Frequency

50 Hz

Phase

Three-phase

Cooling Method

ONAN

Tapping Range

0,±2.5%,±5%

Impedance

4%

No-load Loss

200W

Load Loss

1580W

Noise Level

≤65dB

Material Winding

Copper

Cooling Medium

Oil

Dimensions

900*610*885

Insulation heat resistance grade

A



Product Introduction

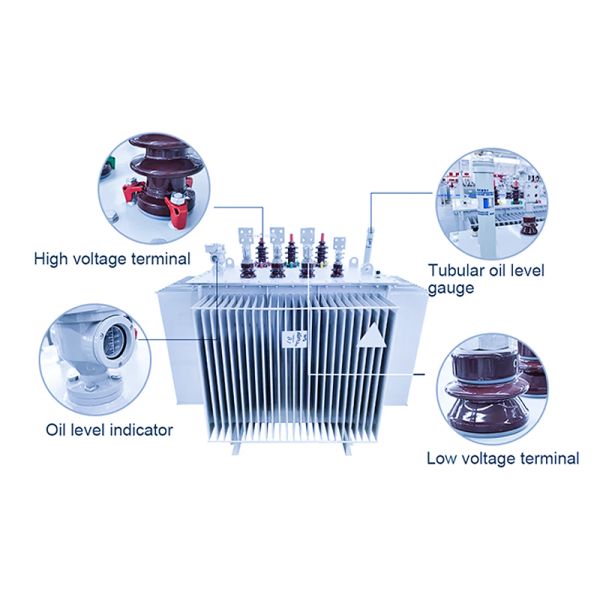

The HENTG POWER S11-100KVA 11KV/416V Oil Immersed Transformer efficiently steps down high voltage for industrial and commercial use. Its oil-immersed cooling system ensures performance and durability. With a 100KVA capacity, it provides stable power and minimizes energy loss. Ideal for heavy-duty environments, it meets international safety and quality standards.


Product Application

Company Profile

Our HENTG Power is dedicated to delivering high-quality transformer solutions with strong production capacity 20000+ units/year.

With 15+ year experience, we can select the best matched solution for your project and can provide preliminary solution in 2 hours, and rapid drawing in 3 working days. Our team gathers more than 30 engineers who has entered into this industry since 2005, most of engineers has more than 20 years experience in transformer R&D.




If you are interested in our products, feel free to contact us for more details. We are committed to providing high-quality products and services and look forward to building a long-term partnership with you to ensure project success.
