High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
Specifications
Brand Name :
HENTG POWER
Model Number :
SG-80KVA 400/400V
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
1
Price :
1295USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
We can provide the quantity you need.
Delivery Time :
7days
Packaging Details :
Wooden crate packaging
Application :
Power
Customizable :
Arbitrary voltage
Productname :
Dry Type Transformer
Package :
Wooden Case
Feature :
High Security
Standardscompliance :
CE
Insulationclass :
Class F
Temperature Rise :
150°C
Coolingmethod :
Air Cooled
Noiselevel :
Below 65 dB
Mounting :
Indoor or Outdoor
Description
Product Details

Quantity(Set)

1 Set

Rated capacity (KVA)

80

Phase

Three phase

Input voltage

Primary/Secondary: 400V L1+L2+L3+N

Output voltage

Primary/Secondary:400VL+L2+L3+N +PE

Rated frequency

50hz/60hz

Short circuit impedance (%)

4

Material

copper wire

Insulation class

H

Primary thread warp (MM)

260mm²

Secondary warp (MM)

150mm²

No-load current(%)

250mA

Insulation level

Phase-to-phase and each phase-to-ground, to iron core pressure:AC:3kV 1min

Measure with a 1000V megohmmeter: the phase of the winding-ground ≥200MΩ; the core-clamp and the ground ≥2MΩ (remove the grounding plate when measuring)

Core Magnetic Density (T)

14000

Noise (Sound Pressure Level: dB)

≤50 ( 1m away from the body)

Transformer body and output temperature rise (K)

45K

Cooling method

AN/AF

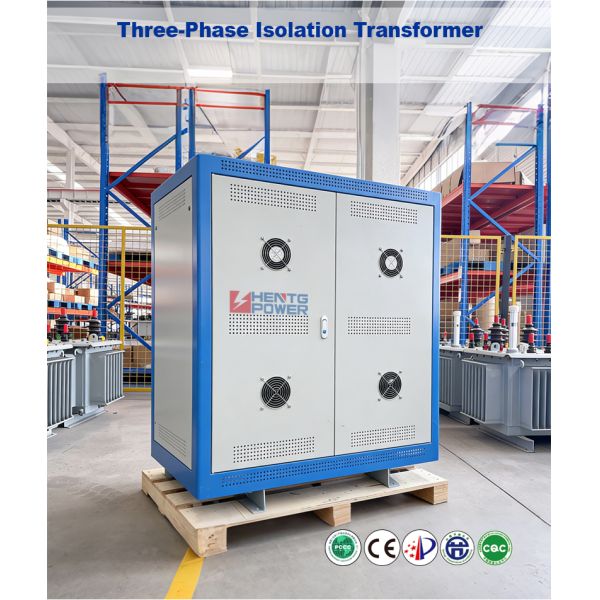

Product Image

High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price

High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price

High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price

High Quality SG-80KVA 400/400V Three-Phase Isolation Dry Type Transformer Factory Price
