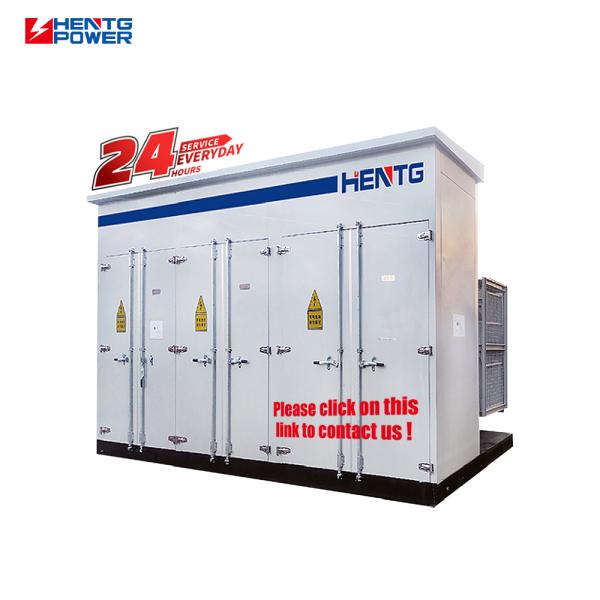

New Energy Outdoor Power Distribution Equipment Step Up/Down Electricity Power Substation Advanced Energy Storage

Specifications

Brand Name :

HENTG Power

Place of Origin :

China

MOQ :

Usage :

Power,Instrument,power grid system,High Frequency,Distribution Transformer

Coil number :

Autotransformer,Three,2,1-6,double winding

Phase :

Three,Single,Single or Three phase

Coil structure :

Toroidal,YNyn0d11,Other

Frequency :

50/60Hz,50Hz or 60Hz

Rated capacity :

30-3000kva,315,63,3000,250

Standard :

IEC60076,IEC Standards,ANCI,DIN,GB1094-1996

Type :

Oil Immersed,Oil type,oil immersed current transformer 132kv,Wound Core Oil-immersed,Oil-immersed

Rated voltage :

35KV,13.2KV,10KV,6.3KV,22KV

Product name :

Power distribution transformer,33/11 Kv 50/60Hz 5000Kva Oil Immersed Power Distribution Transformer,66KV Oil-immersed Power Transformers,Oil Type Power Transformer,22kv oil immersed distribution high voltage 5 mva power transformer

Material :

Copper,Alumnium or copper,Copper+alumnium

Output voltage :

15kv 10 kv 0.4/0.69kv,0.415kv,13.8kv,0.4/0.23kV,200v/220/240/380v/400v/415v/440v

Vector group :

Dyn11,Dyn5,Yyno or others,Dyn11/Yzn11,Dyn11 / Yyn0

Cooling method :

Oil Natural,ONAN,Oil Cooling

Winding material :

Cooper

Color :

Brown,Gull grey

Input voltage :

customized product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV

Advantage :

Best price & Best quality in China

Certification :

Description

Product Characteristics

Vacuum circuit breaker or load switch + fuse (combined electrical appliance) technical solution can be used on the high voltage side of Huashi box. The electrical characteristics of the combined electrical structure ensure that when any phase fuse is blown, the load switch will trip to cut off power supply, allowing safe fuse replacement before main switch closure.

The vacuum circuit breaker or load switch + fuse combination features mechanical interlocks to prevent misoperation, with signal transmission capability for real-time monitoring of operating status and remote control functionality.

Product Parameters
ltem	Parameter	No	Item	Parameter
Basic Technical Parameters		2	Insulation & Thermal Classes
Type & Model	S11-5000-33/0.69		Insulation Level	Class A
Rated Capacity	5000kVA	a	High-Voltage Side
Rated Voltage(HV / LV)	33kv/0.69kv		Lightning Impulse Withstand(peak)	200kv
Rated Current(HV / LV)	87.5A /4183.7 A		Short-Duration Power-Frequency Withstand(r.m.s.)	85kv
Voltage Ratio	±2 × 2.5 %		Lightning Impulse Withstand (peak)
Short-Circuit Impedance	7%		Short-Duration Power-Frequency Withstand (r.m.s.)	5kv
Vector Group	Dyn11
Rated Frequency	50Hz
Cooling Method	ONAN
Losses, Noise & No-Load Current		4	Other Technical Requirements
No-Load Loss	≤ 3970W (+15%)	4	Overall Dimensions (L × W × H)	2650 mm × 2900 mm × 2750 mm
Load Loss	≤ 39018W (+15%)	b.	Estimated Total Mass	10.7t
Sound Pressure Level	≤ 77 dB(A)
No-Load Current	0.50%

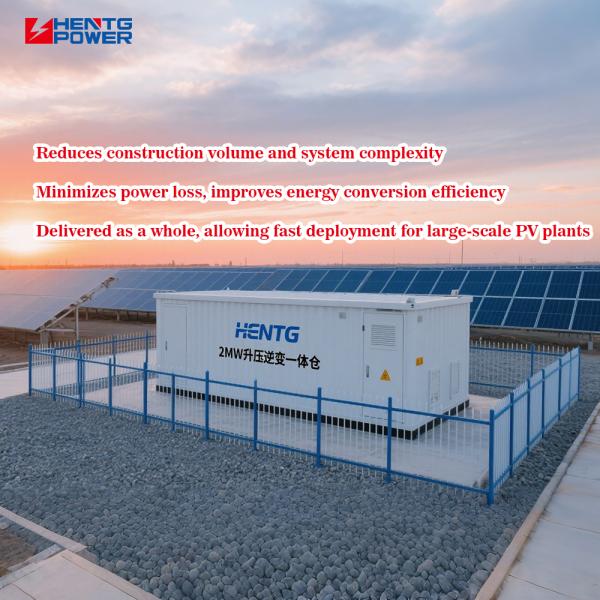

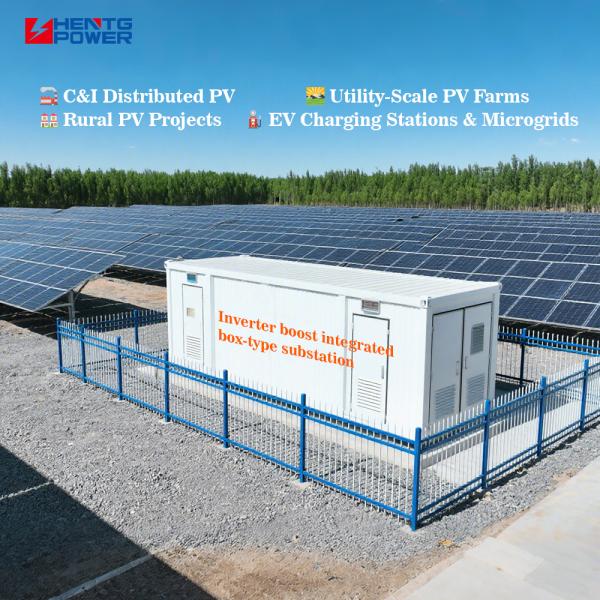

New Energy Outdoor Power Distribution Equipment Step Up/Down Electricity Power Substation Advanced Energy Storage

Full-condition simulation pre-commissioning: Over 100 tests, including those for transmission protection and communication point-to-point, are completed in-plant to ensure error-free commissioning on-site.

Military-grade protective enclosure: High-strength steel structure, C5-level corrosion resistance (hot-dip galvanizing), and IP54 protection rating, resistant to salt spray, wind, sand, and condensation.

Intelligent internal environment: Industrial air conditioning, fans, electric heaters, and a gas fire protection system work together to maintain a constant temperature and humidity clean environment.

Standard modular design allows for flexible configuration based on capacity requirements (e.g., from 500kVA to 10MVA).

Reserved interfaces make future capacity expansion or upgrades (such as adding energy storage and reactive power compensation) simple and convenient.

Full relocation is supported, allowing for continued use at a new location after project completion, maximizing asset value.

Reduce initial investment: Significantly reduce civil engineering costs and floor space.

Reduce operating costs: The energy-efficient design reduces power consumption; intelligent monitoring enables unmanned operation, reducing maintenance manpower.

"Save maintenance costs:" The modular design allows for quick replacement of faulty components, and predictive maintenance avoids losses from unexpected power outages.
