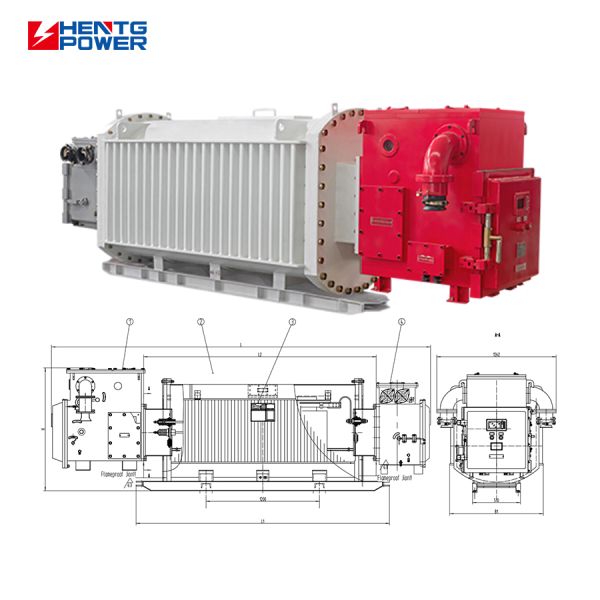

50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
Specifications
Brand Name :
HENTG Power
Certification :
ISO9001,SGS,CE,Type test report/CESI/ CTQC/ISO9001,Other
Place of Origin :
China
MOQ :
1
Product name :
dry type mining explosion isolation movable transformer substation
Rated voltage :
12kV,0.4KV/12KV,11KV 15KV 22KV 33KV,6.3KV,13.8KV
Type :
prefabricated substation,YBW-12/0.4-2000,American type,Electrical Boxes substation,Outdoor type
Application :
industrial,Electric Power Transmission,metallurgy and other fields.,high buildings,airports
Standard :
IEC60439,IEC60076,IEC/GB,JB/T,CQC
Color :
Customer Request,CUSTOMIZED COLOR,Green,green or optional,As Required
Frequency :
50/60Hz,50Hz or 60Hz
Material :
Steel,Copper,galvanized sheet etc.,201,Cold plate spray molding
Rated current :
115A/2887A,H voltage 200---630KA,630A,1000KVA,630 1250 1600A
Rated capacity :
200,200-2500kva,3000,80,400
Vector group :
Dyn11,Dyn5,Ynd11,or others,Yyn0
Transformer type :
dry type or oil immersed type transformer
Key words :
12kv box transformer substation,Network automation terminal
Capacity :
30-2000KVA
High voltage :
10kV,below 35KV,6KV To 35KV
Port :
any port in china,SHANGHAI
Rated frequency :
50Hz,50/60Hz
Description
50KVA Tech Data of 6KV KBSG Series Dry Type Mining Explosion Isolation Movable Transformer Substation
Focus on "Application Environment Adaptability" - Tailor-Made for Extreme Underground Conditions
50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage
rated capacity
kVA)		 Voltage group(kV) connection method dissipation(KW) no-load
current (%)		 impedance
voltage(%)		 outline dimension weight (KG) Gauge (mm)
no-load load (Length-Width-Height)
50 High pressure
(6±5%);
Low pressure
0.693/0.4 1.2/0.693
1.2
3.45.		 YyO(d11)
Yyo(d11)Dyn11		 350 550 2.5 4 3290*950*1160 2350 600
100 520 920 2.5 4 3580*950*1430 2600
200 820 1550 2 4 3710*950*1445 3050 600
250 950 1800 2 4 3820*965*1530 3300
315 1100 2150 1.8 4 3870*975*1540 3500
400 1300 2600 1.8 4 3890*995*1550 3600
500 1500 3100 1.5 4 3910*1050*1570 4100 900
630 1800 3680 1.5 4 4085*1080*1450 5360
800 2050 4500 1 4 4085*1080*1510 5680
1000 2350 5400 1 4 4100*1130*1540 6500
1250 2750 6500 1 4 4190*1160*1610 6700
1600 3350 8000 0.8 4 4190*1200*1750 9230
2000 3800 9500 0.6 4.5 4570*1220*1790 9930
2500 4500 10600 0.6 5 4580*1230*1850 13830
3150 5300 12500 0.6 5.5 4820*1260*1890 17250
4000 6100 14000 0.6 6 4930*1400*1920 1827
